Monitoring
168 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
Without confirmation the priority will automatically
change to a caution after 30 sec. When the alarm
message is present the alarm limit menu will
automatically open and the confirmation field for the
alarm ’MAC low OK?’ is preselected. The user can
now confirm the alarm message by pressing the
rotary knob.
The automatic agent alarm activation can be
configured in the default configuration in Standby.
Loops (Optional)
Display loops on the screen

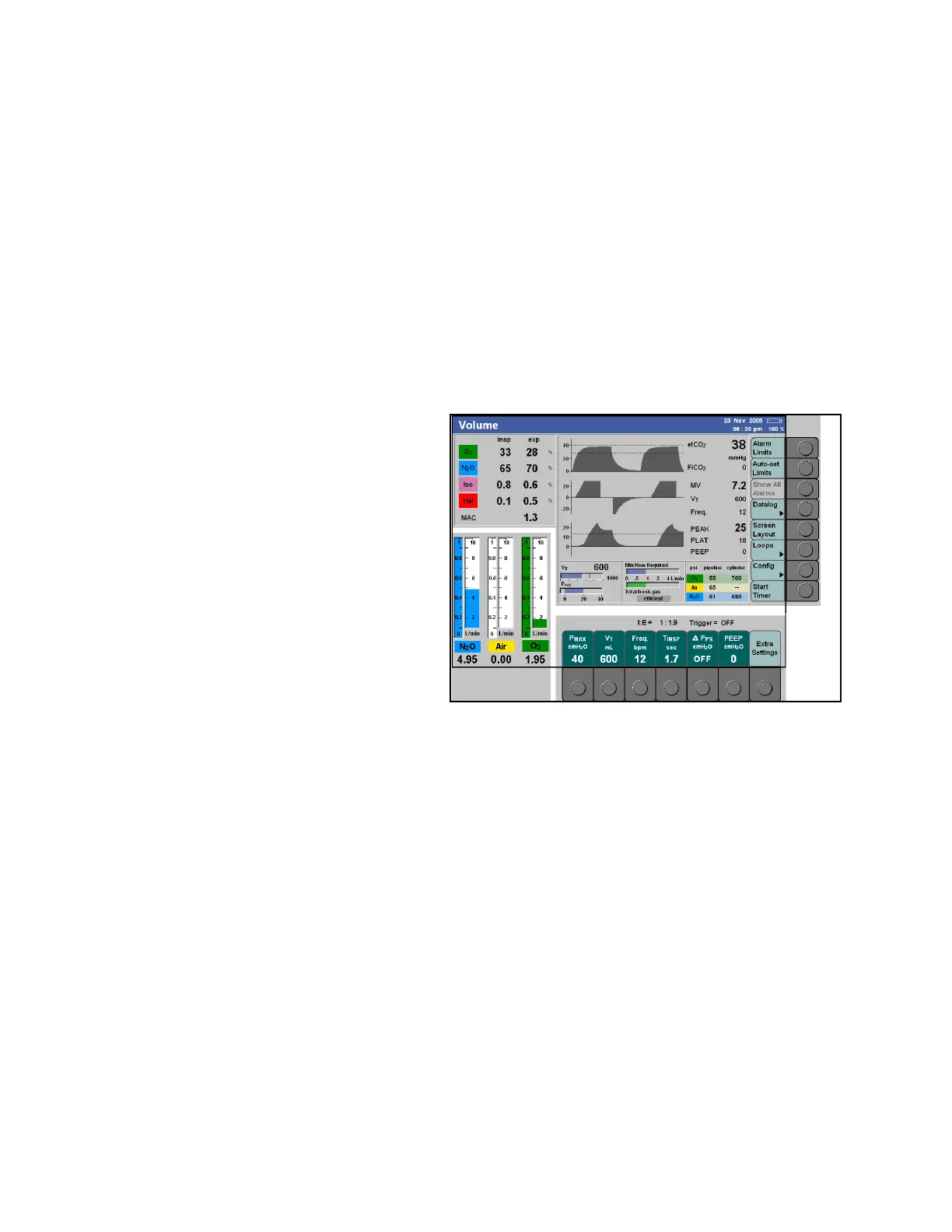

Figure 89. Loops Key on Standard Screen1. Press the >Loops< button on the standard
screen (1 in Figure 89).
The label of the button changes to >Exit Loops< and
the P/V Loop and the Flow/Vol loop are displayed
with a value table instead of the two lower curves
(refer to Figure 90). Each loop remains on display for
three breathing cycles; the color intensity of the loop
decreases with each cycle.
The scale of the Pressure and Flow axes depends on
the scale selected for the real-time curves. The scale
of the volume axis depends on the scale in the V
T/
PAW module.
In addition to the factory setting for the axis
orientation complying with ISO 80601-2-13, inverted
display is also available. To change the display
setting, contact service personnel.
See the chapter “Configuration” for more information
on scale configuration.
