System Components
Instructions for Use Apollo SW 4.5n 29
Part Number: 9053586, 3rd edition
Overview
This chapter identifies the major physical components
of the Apollo anesthesia machine and provides a brief
description of specific parts.

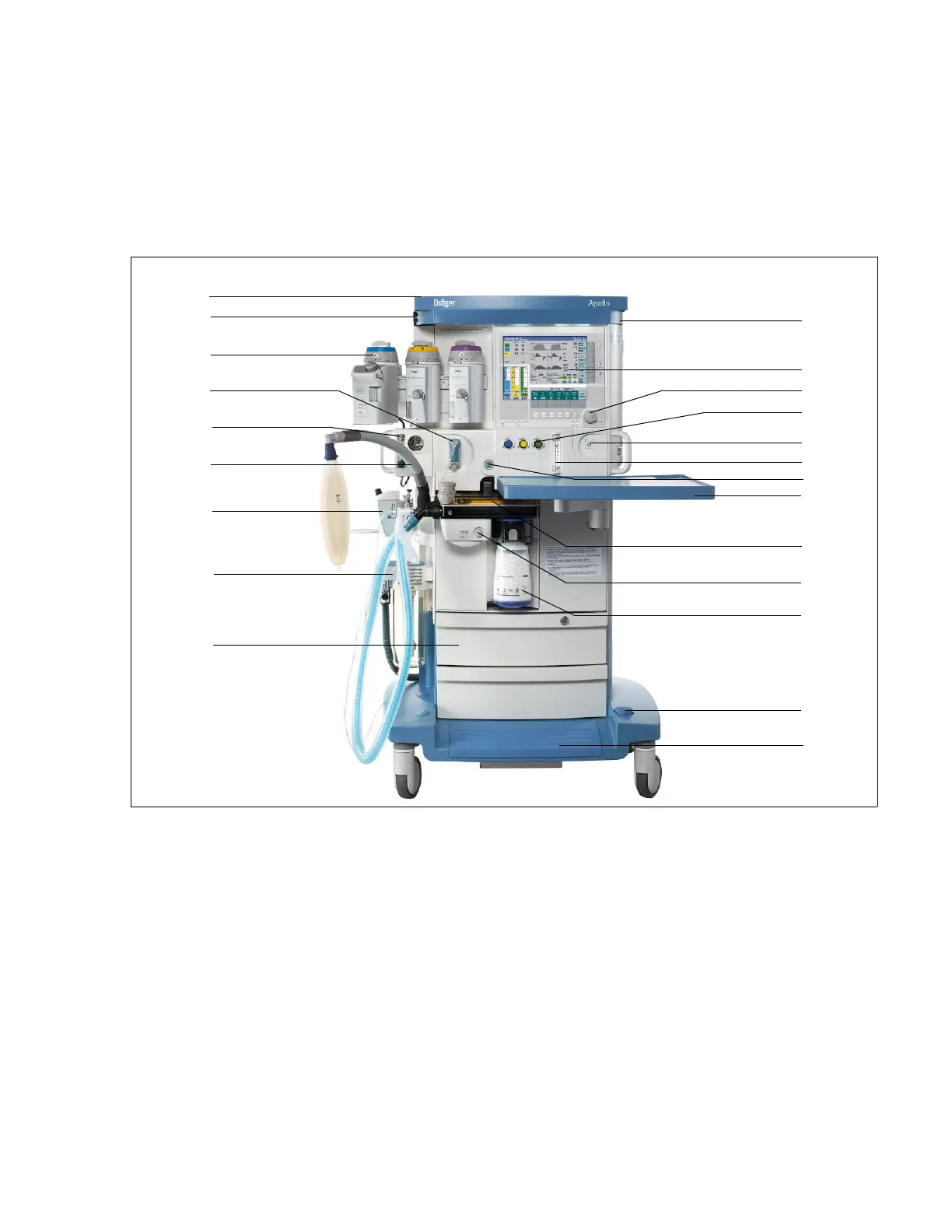

Machine Front view
2
3
5
6
7
8
9
10
11
12
15
16
17
18
19
20
22
1
4
13
14
21
1 Lighting control (dimmer) location 12 Central brake
2 Screen with user interface 13 Footrest
3 Rotary knob 14 Drawers (2) (for storage)
4 Fresh-gas flow controls: O
2, Air, N2O 15 Anesthetic gas receiving system AGS (optional)
5 Mains power switch 16 Endotracheal aspiration system (optional)
6 Total flow meter 17 Flexible breathing bag arm
7O
2 flush button O2+ 18 Auxiliary oxygen flow meter
8 Writing table 19 Water trap with sample line connection
9 Breathing system 20 Vaporizer units with interlock system (optional)
10 Release button for ventilator module 21 Auxiliary AC outlet (for Desflurane vaporizer)
11 Absorber (optional: disposable CLIC absorber) 22 Top shelf (for external monitors)
