User Interface
Instructions for Use Apollo SW 4.5n 47
Part Number: 9053586, 3rd edition
Ventilation control keys

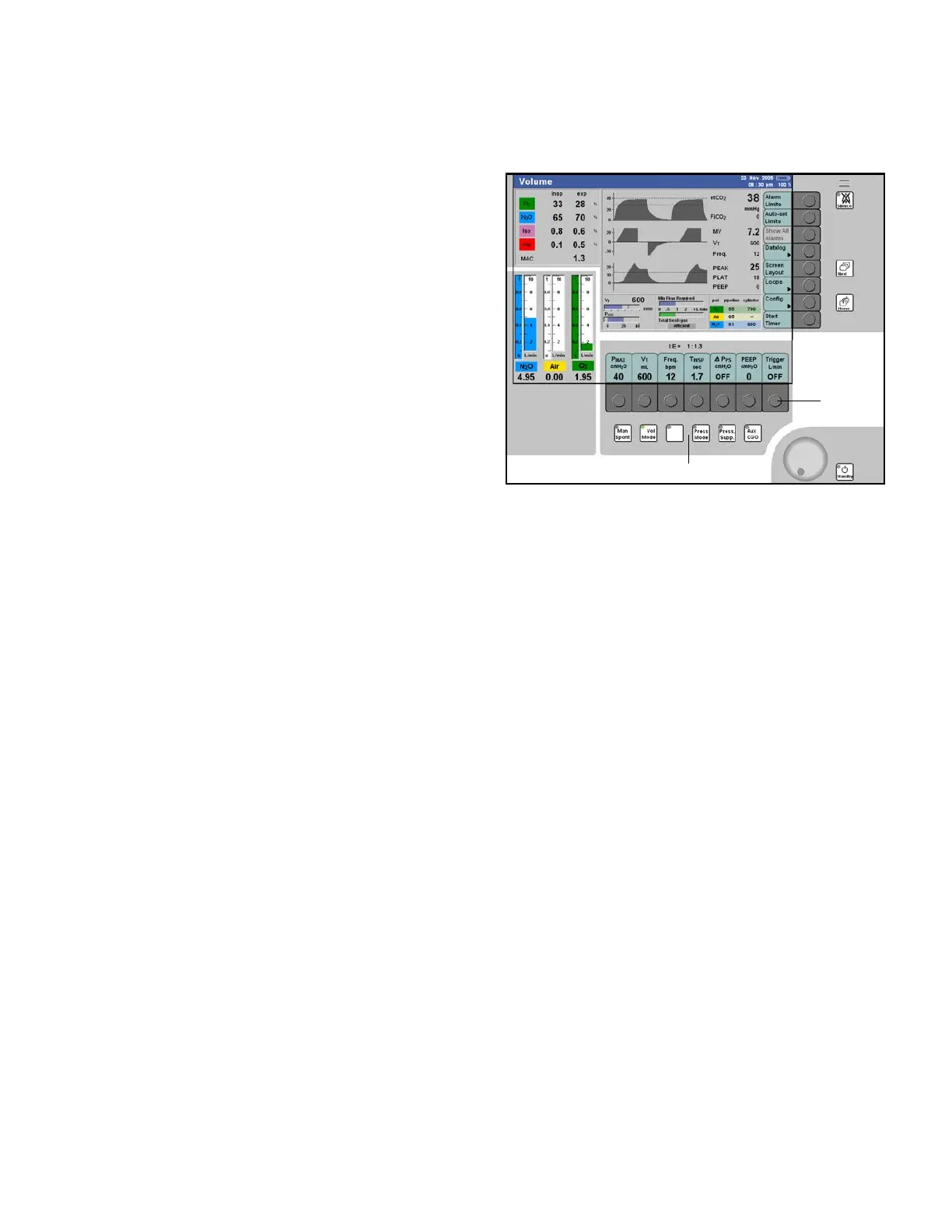

Figure 12. Location of Ventilation Control KeysVentilation functions are controlled using two sets of
keys located at the bottom of the screen.
The ventilation keys (1 in Figure 12) are used
primarily to select the ventilation mode:
>Man Spont<, >Vol Mode<, >Vol. AF Mode<,
>Press Mode<, and >Press. Supp.< (optional).
The key >Aux CGO< is used to select the optional
auxiliary common gas outlet.
Selecting Ventilation Mode or Aux CGO (optional)
1. Press the appropriate ventilation key. The key’s
LED and the status field will flash.
2. Press the rotary knob to confirm the selection.
The ventilation buttons (2 in Figure 12), located
above the keys, are used to set ventilation
parameters. These keys have variable functions,
depending on the operating status or ventilation
mode.
Setting/Selecting Ventilation Parameters
Example: setting PEEP
1. Press the button >PEEP<.
2. Turn the rotary knob until the desired value is
displayed.
3. Press the rotary knob to confirm the new value. If
the new value is not confirmed within
15 seconds, it automatically reverts to the
original value.
