Dräger Apollo User Manual

Monitoring
160 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
Mini trends (optional)
The mini trends are located below the waveform area
and display a trend over 15 minutes for the following
parameters:
–MV*CO
2
–O2 Uptake and
–C
PAT/PEEP
Virtual flow tubes
This is an indication (in bar graph and numeric form)
of the individual flows actually delivered by the fresh-
gas control valves.

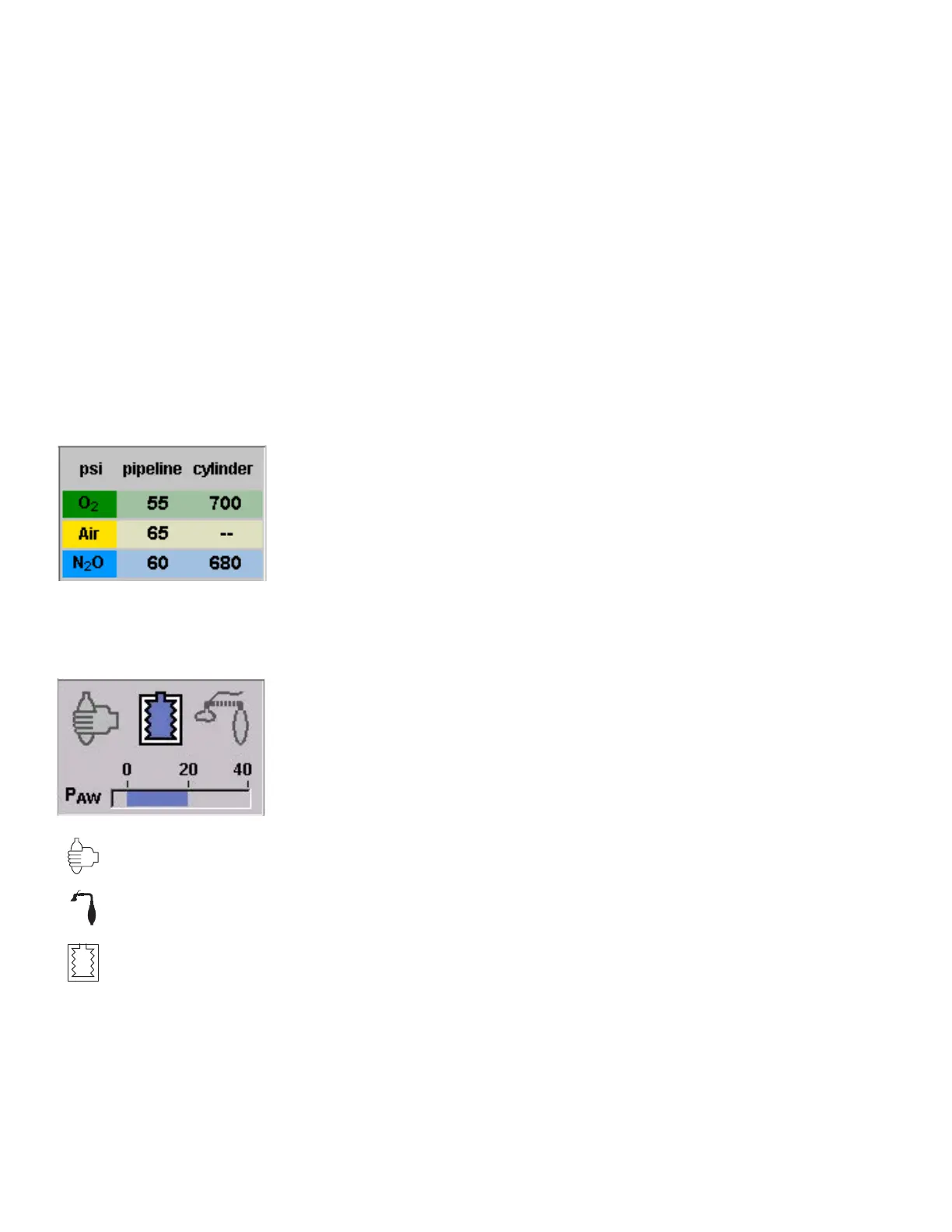

Gas supply module
Shows pipeline supply and cylinder gas supply
pressures in tabular form.
Ventilation source module
Shows the indicators for the ventilation sources (with
the active source highlighted) and displays the P
AW
real-time signal.
Manual ventilation (Man/Spont)
Non-rebreathing system at the auxiliary
common gas outlet (Aux CGO)
Automatic ventilation

Dräger Apollo Specifications

General

Type	Anesthesia Workstation
Gas Supply	O2, N2O, Air
Integrated Monitoring	Yes
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Vaporizer	Dräger Vapor 2000
Patient Monitoring	ECG, SpO2, NIBP, Temperature
Power Supply	100 – 240 VAC, 50/60 Hz
Tidal Volume Range	20-1500 ml
Vaporizer Mounts	Up to 2
