Dräger Apollo User Manual

Monitoring
Instructions for Use Apollo SW 4.5n 171
Part Number: 9053586, 3rd edition

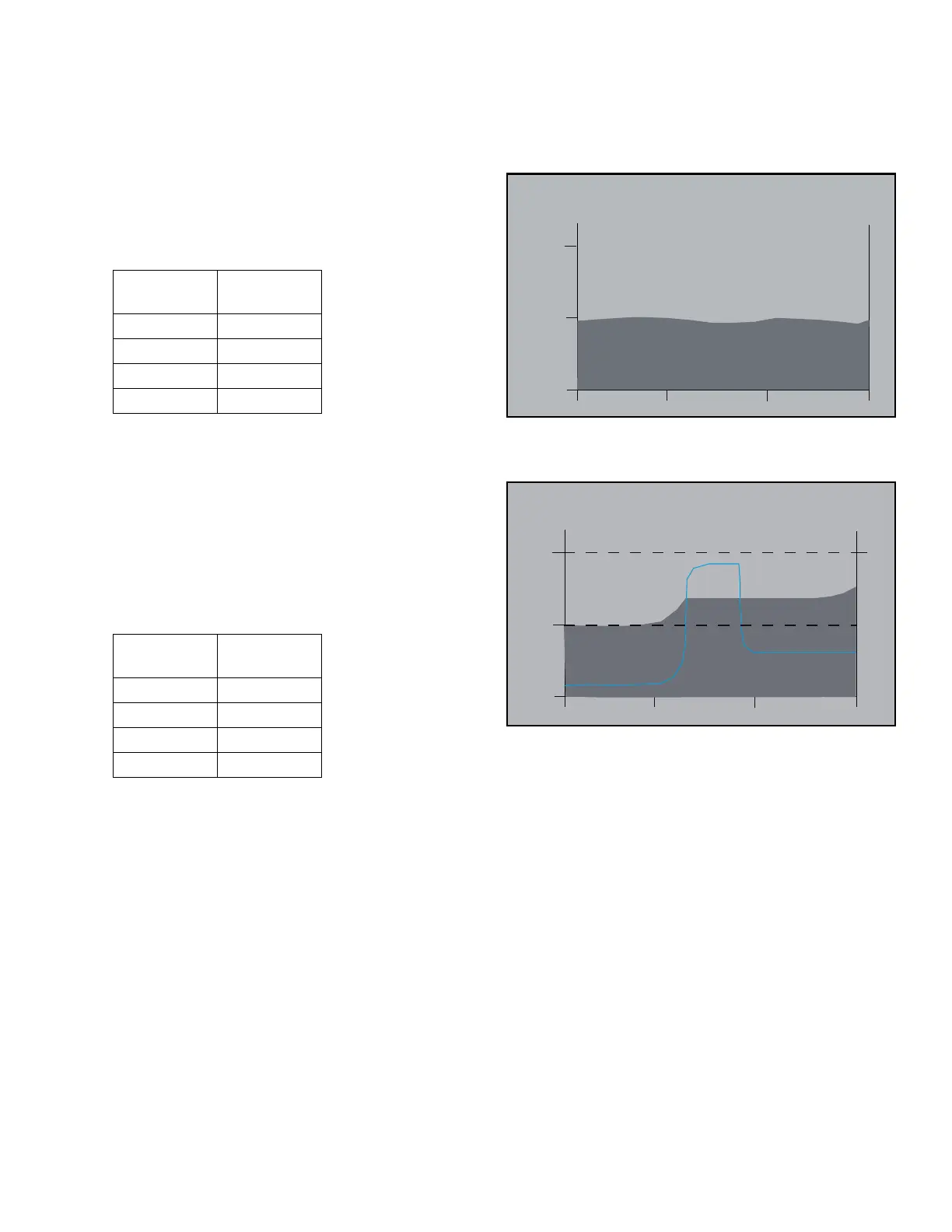

Mini trend for O2 uptake
Figure 93 Mini trend for O2 uptakeThis mini trend displays the difference between the
inspiratory and the expiratory oxygen concentration
over 15 minutes.
The scaling depends on the expiratory tidal volume
V
T and is automatically adjusted.
Mini trend for CPAT/PEEP
Figure 94 Mini trend for CPAT/PEEPThis mini trend displays the parameters PEEP and
C
PAT over 15 minutes.
PEEP is displayed as a line, patient compliance C
PAT
as filled curve.
The scaling for PEEP is set to 20 mbar.
The scaling for C
PAT depends on the expiratory tidal
volume V
T and is automatically adjusted.
800
400
0
O2 Uptake 5 mL/min
VT
ml
O2 uptake
50 50
150 150
500 500
1000 1000
100
0
20
7
65
CPAT PEEP
VT
ml
C
PAT
50 10
150 50
500 100
1000 100
