To display the current loop in a different color to
use it as a reference:

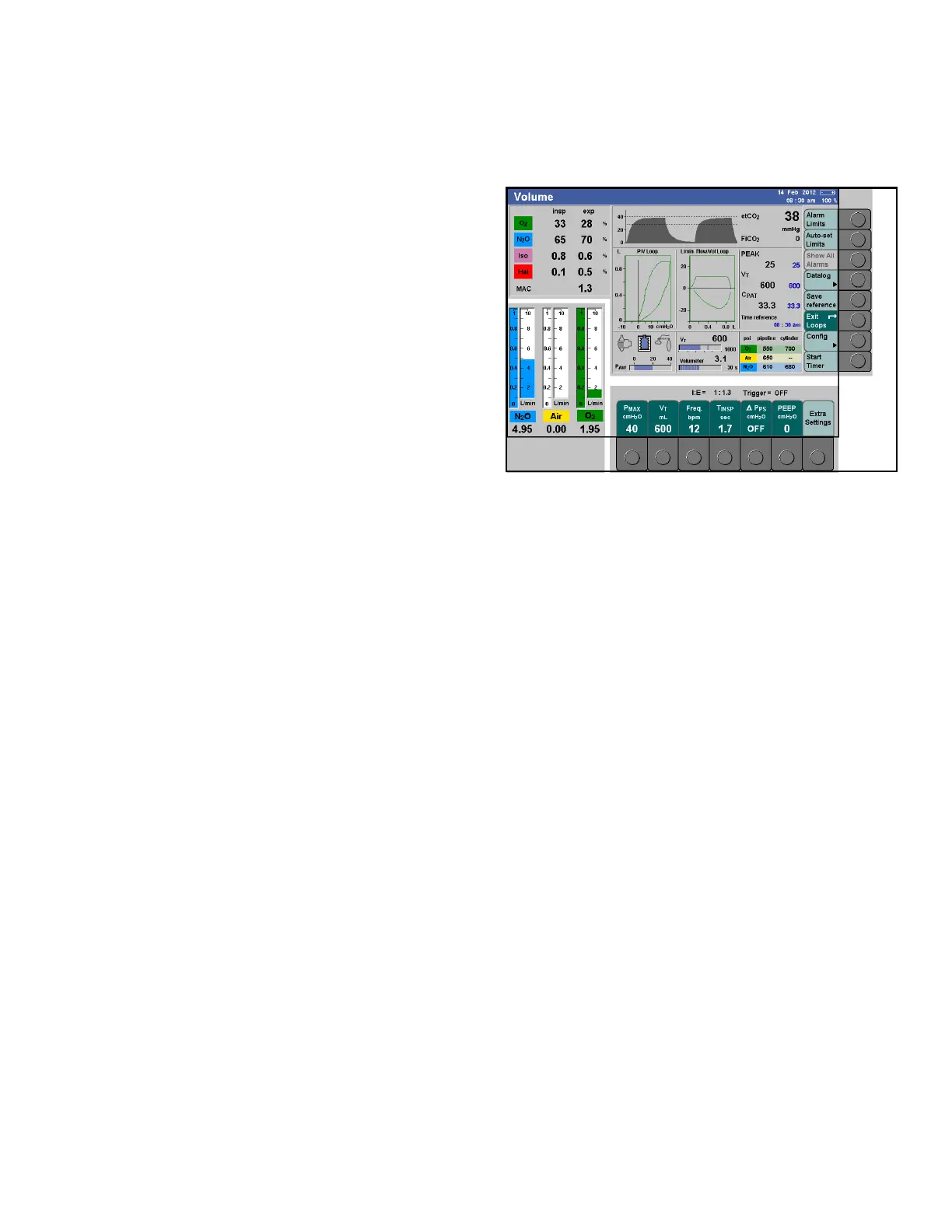

Figure 90. Loops Screen1. Press the >Save reference< button while in the
loops screen (1 in Figure 90).
For the reference loop, the corresponding values
of PEAK, V
T, and CPAT are saved in the value
table and a time stamp is added.
The label of the button changes to >Delete
reference<.
The values in the value table are updated with
every new breath. These values can be
compared with the values of the reference loop.
The reference loop, including the attached values in
the value table, can be deleted by pressing the
button >Delete reference< again or by changing to
Standby mode.
To remove loops from the screen:
1. Press the >Exit Loops< button while in the loops
screen (2 in Figure 90). The loops are removed
and the two lower curves are displayed again.
1
2
