System Setup
62 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition

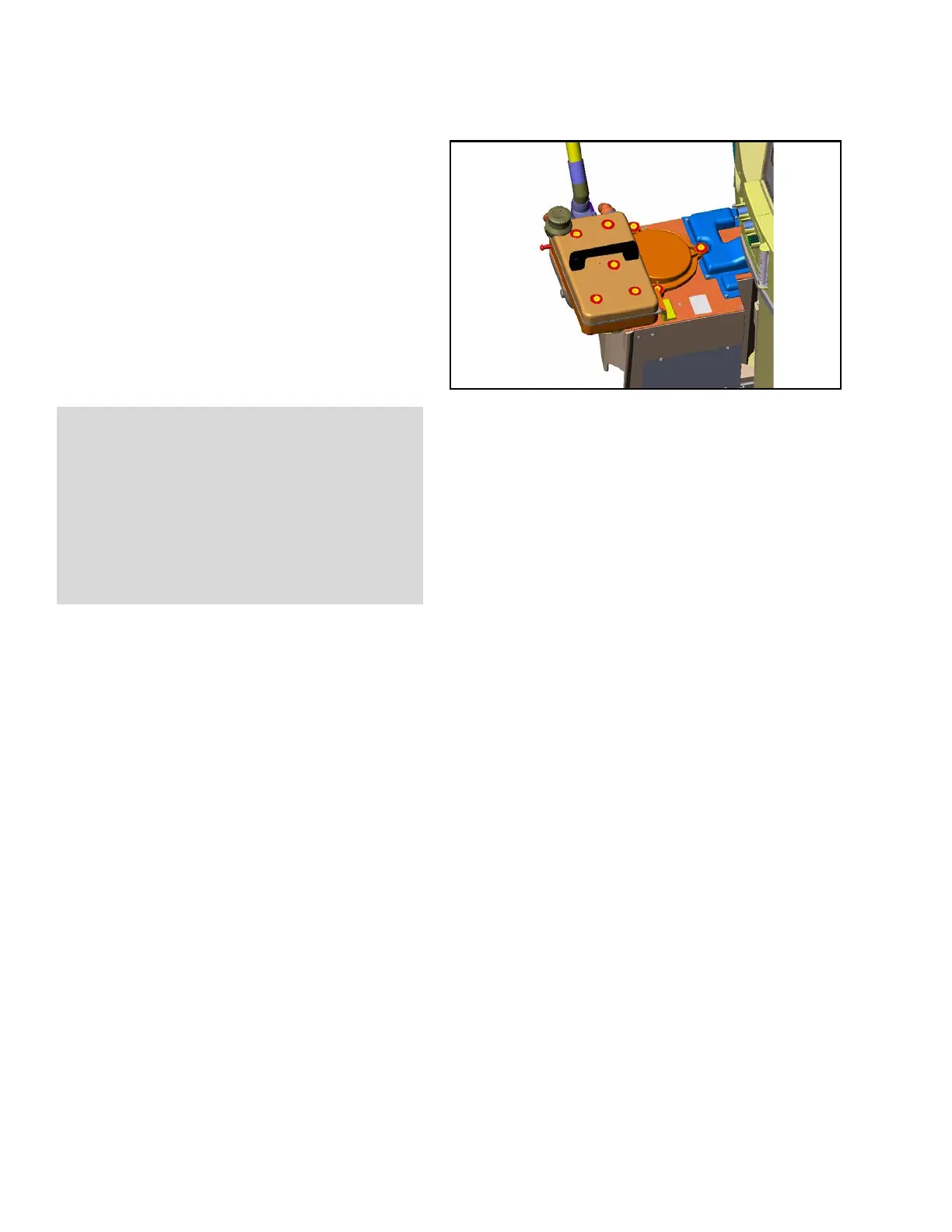

Figure 18. Installing the Breathing System6. Orient the inspiratory and expiratory ports
(4 in Figure 17) so that the key on each port lines
up with the slot. Install the ports and tighten by
turning clockwise. Carefully seat the breathing
system onto the ventilator module, and tighten
the three sealing screws (1 in Figure 18) on the
ventilator cover.
WARNING!
Risk of scavenger becoming blocked
If objects such as packing foil get into the
device, e.g., the breathing system or the
ventilator drawer, the scavenger may become
blocked.
Make sure that there is no packing material left
inside the device.
