Removing the Drum Unit
106
4

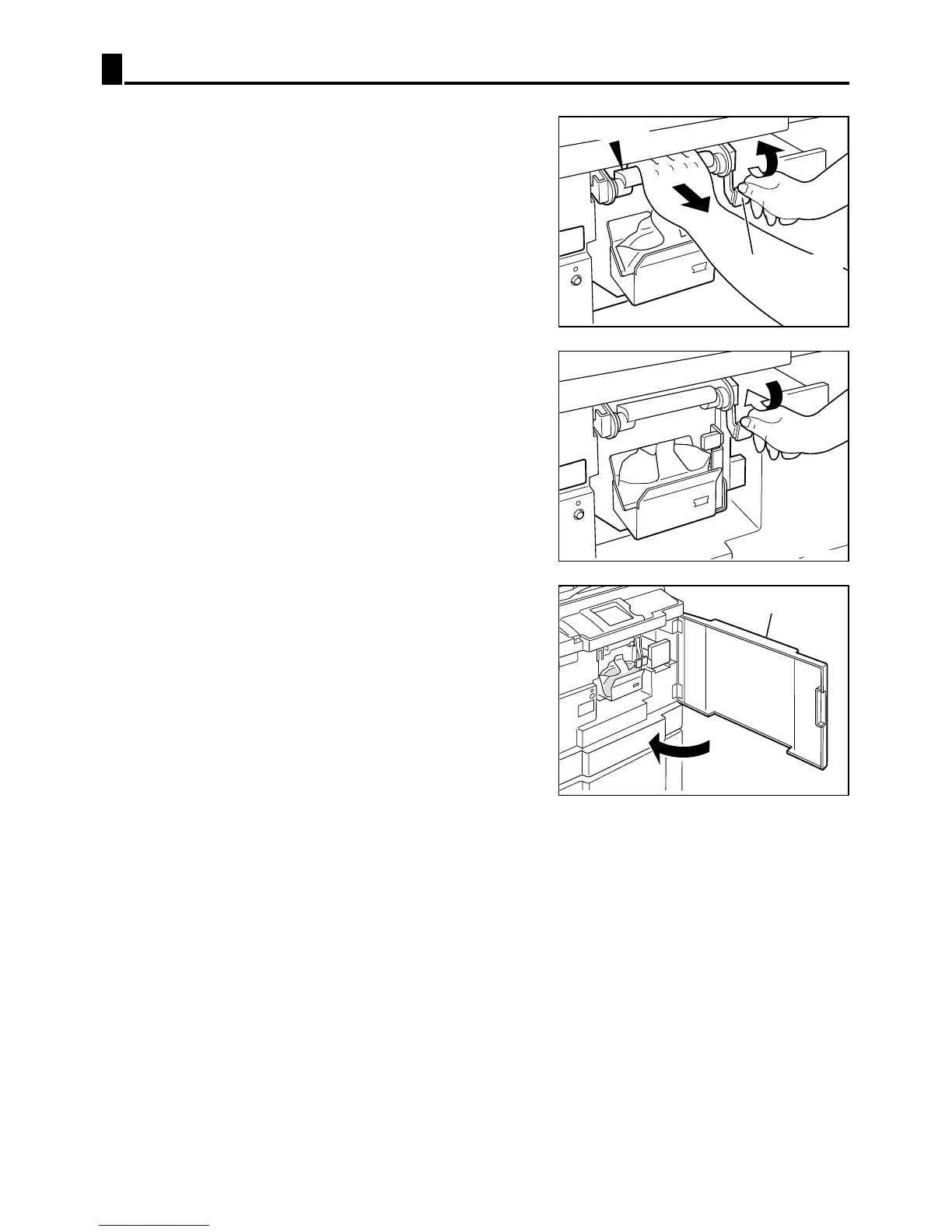

Lift the “drum securing lever” toward you
while pressing the drum in.
3
Hold the “drum” level and press it in gently
until it comes to a stop.
6
Close the “front cover”.
5
Push down the “drum securing lever”.
440021
Drum securing lever
440020
Drum handle
440027
Front cover
