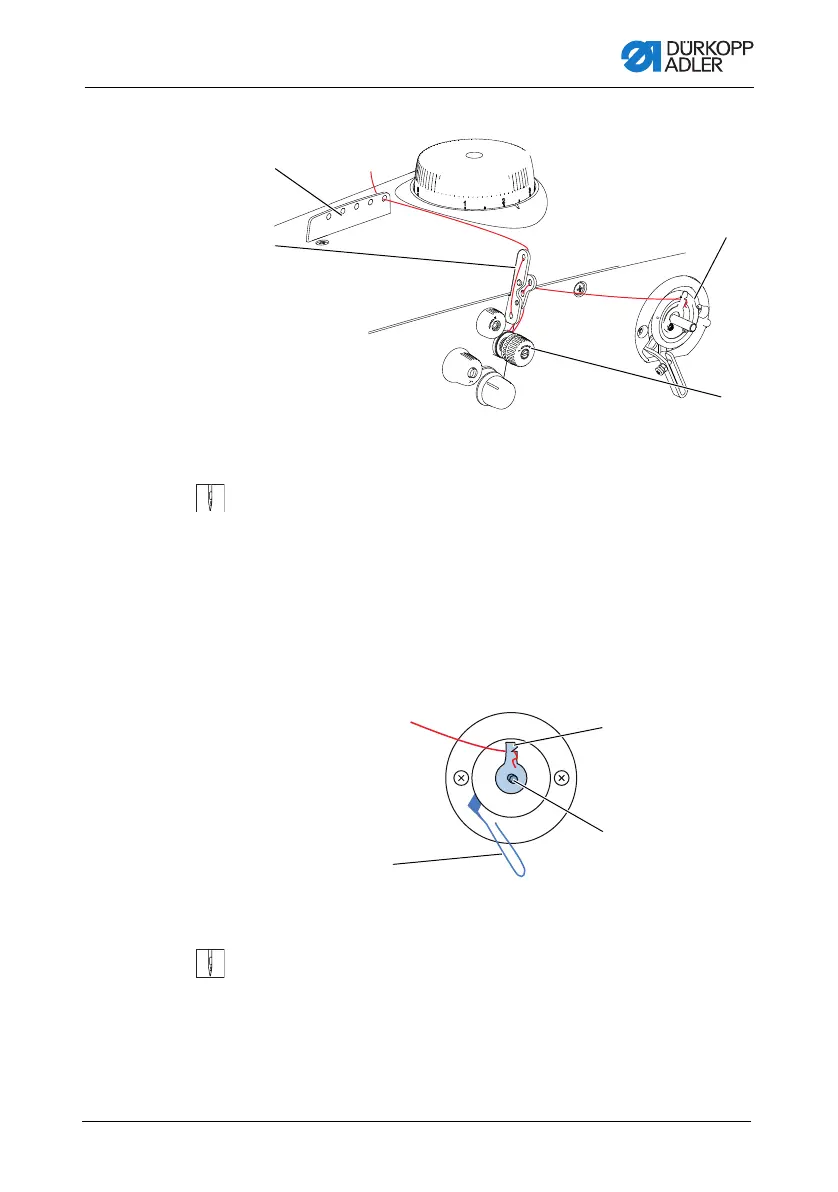

Fig. 11: Threading the hook thread (2)
3. Insert the thread through the guide (1).
4. Feed the thread from top to bottom through the larger guide
rail of the thread guide (2).
5. Guide the thread counterclockwise around the pre-tensioner (3).
6. Feed the thread from bottom to top through the smaller guide
rail of the thread guide (2).
7. Guide the thread to the bobbin (4).
Fig. 12: Threading the hook thread (3)
8. Clamp the thread behind the cutter (9) and tear off the loose
end behind it.
9. Fit the bobbin on the bobbin shaft (8).
10. Turn the bobbin clockwise until it clicks.
11. Pull the bobbin lever (7) up.
(3) - Thread guide
(4) - Thread guide
(5) - Pre-tensioner
(6) - Winder
(7) - Bobbin lever
(8) - Bobbin shaft
(9) - Cutter
