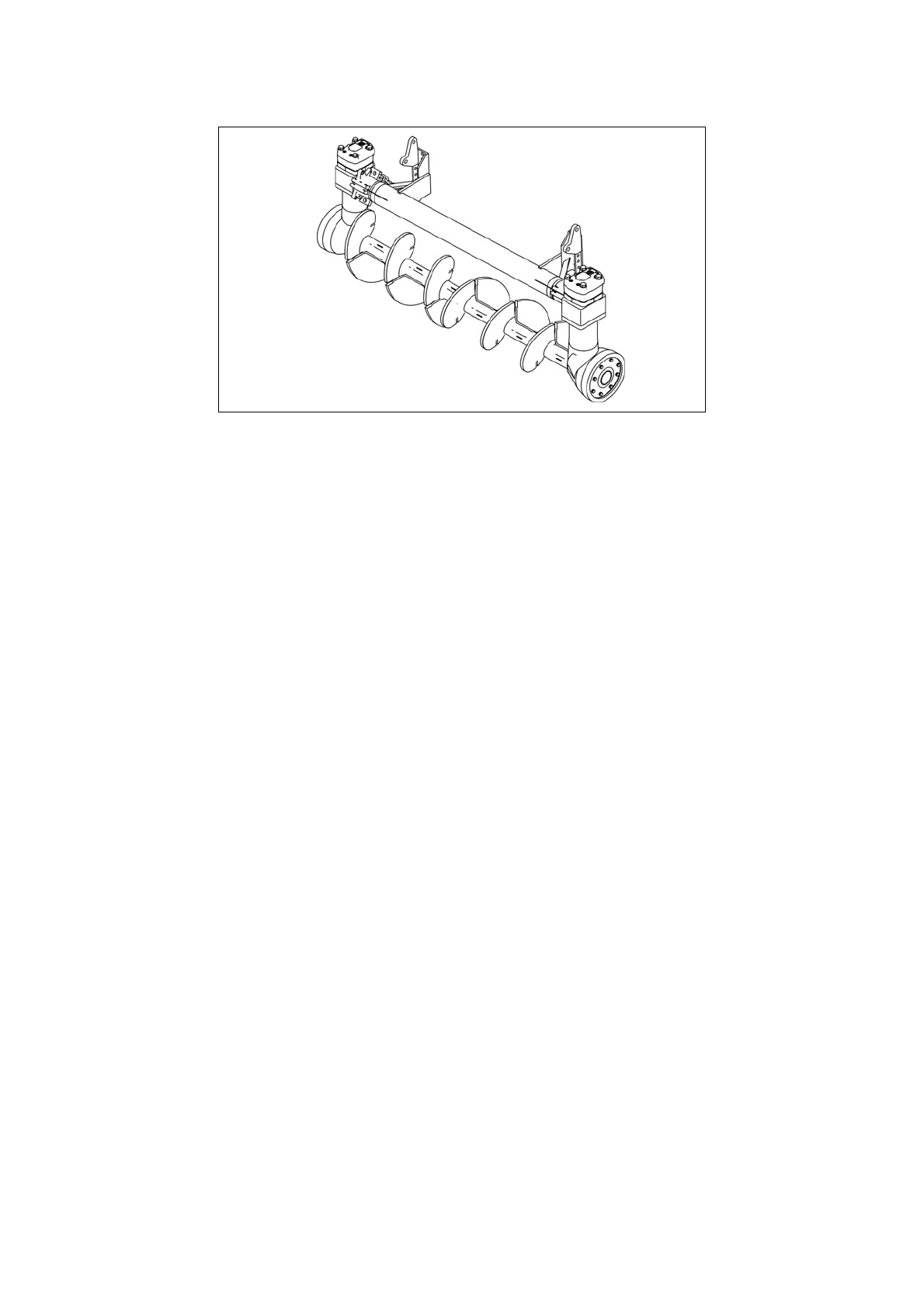

2.5 Auger extension, auger type I
Depending on the type of screed, the most diversified working widths can be reached.
A
Auger and screed extension must match. See the operating instructions of the appro-
priate screed, chapter ”Set-up and modification”, especially:
– Screed extension chart,
– Auger extension chart.
To attain the desired working width, the respective screed extensions, side plates, au-
gers, tunnel plates or cut-off shoes must be mounted.
For widths of more than 3.00 m, the auger should be fitted with extension parts on
both sides to improve material distribution and to reduce the wear.
f
The diesel engine must be switched off whenever work is performed on the auger.
Danger of injuries!
