5Towing
f
Heed all regulations and apply all safety measures applicable for towing heavy con-
struction machines.
m
The towing vehicle must be capable of securing the paver finisher, even on slopes.
Use only approved tow bars!
If necessary, remove any attachments and accessories from the paver finisher and
the screed until the basic width has been attained.
The engine compartment holds a hand-pump on the LH side, which must be actuated
to permit the towing of the machine.
Pressure for releasing the traction system brakes is built up with the hand pump.
m
Only release the traction system brakes
when the machine is sufficiently secured
against accidental rolling or is already
properly connected to the towing vehi-
cle.

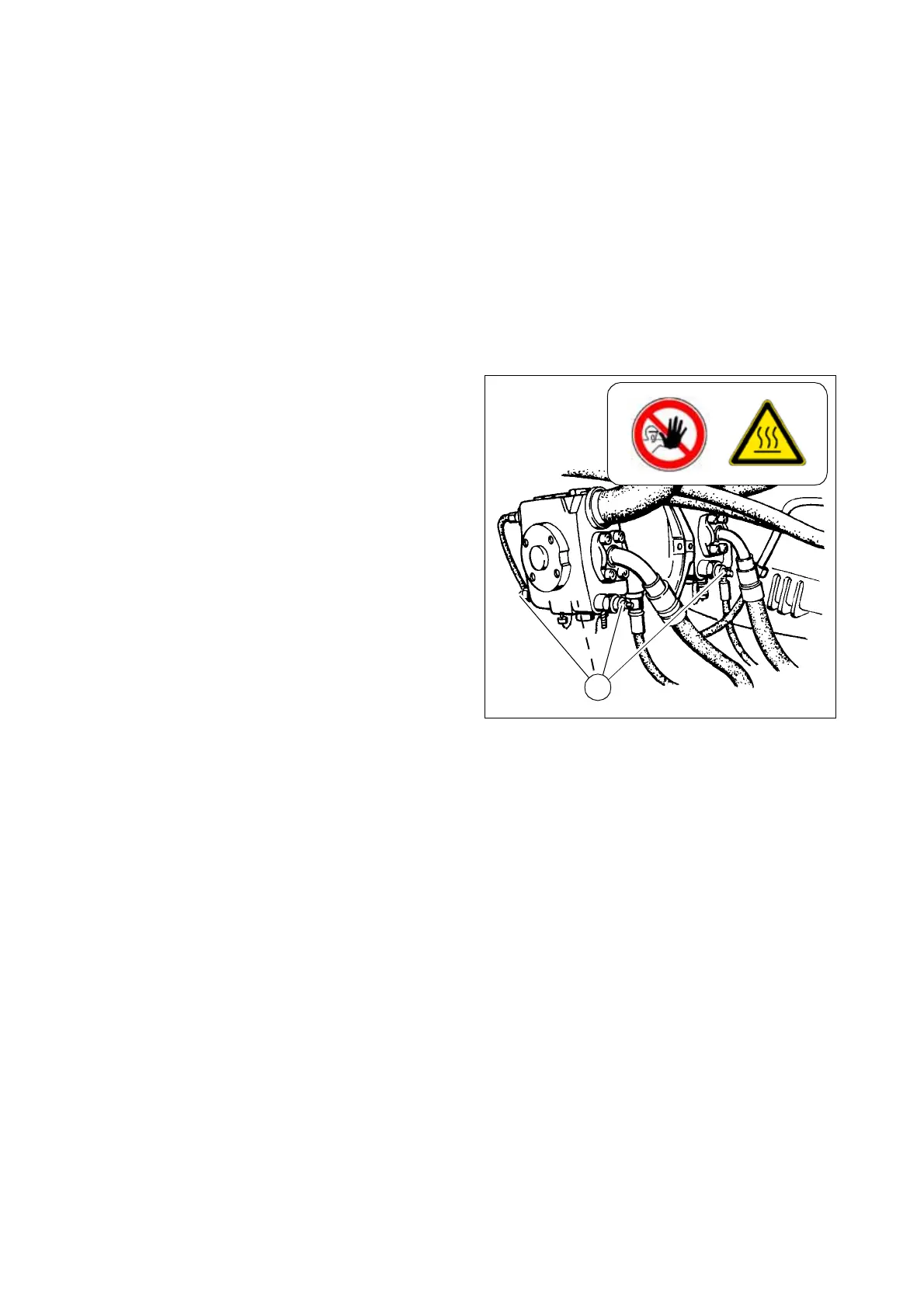

- The four high pressure cartridges (1)
of the pumps of the traction drive must
be driven out by about 3 turns.
F0264_A1.TIF
1
