On/Off switch of work headlights (85d):
Actuate switch (a) to switch on.
In the switch position „ON“ the control light (b) is on.
On/Off switch of flasher (85e):
Actuate switch (a) to switch on.
In the switch position „ON“ the control light (b) is on.
A
If the optionally available 230 V systems
is installed, an additional switch cabinet
is mounted on the paver finisher:
230 V On / Off switch

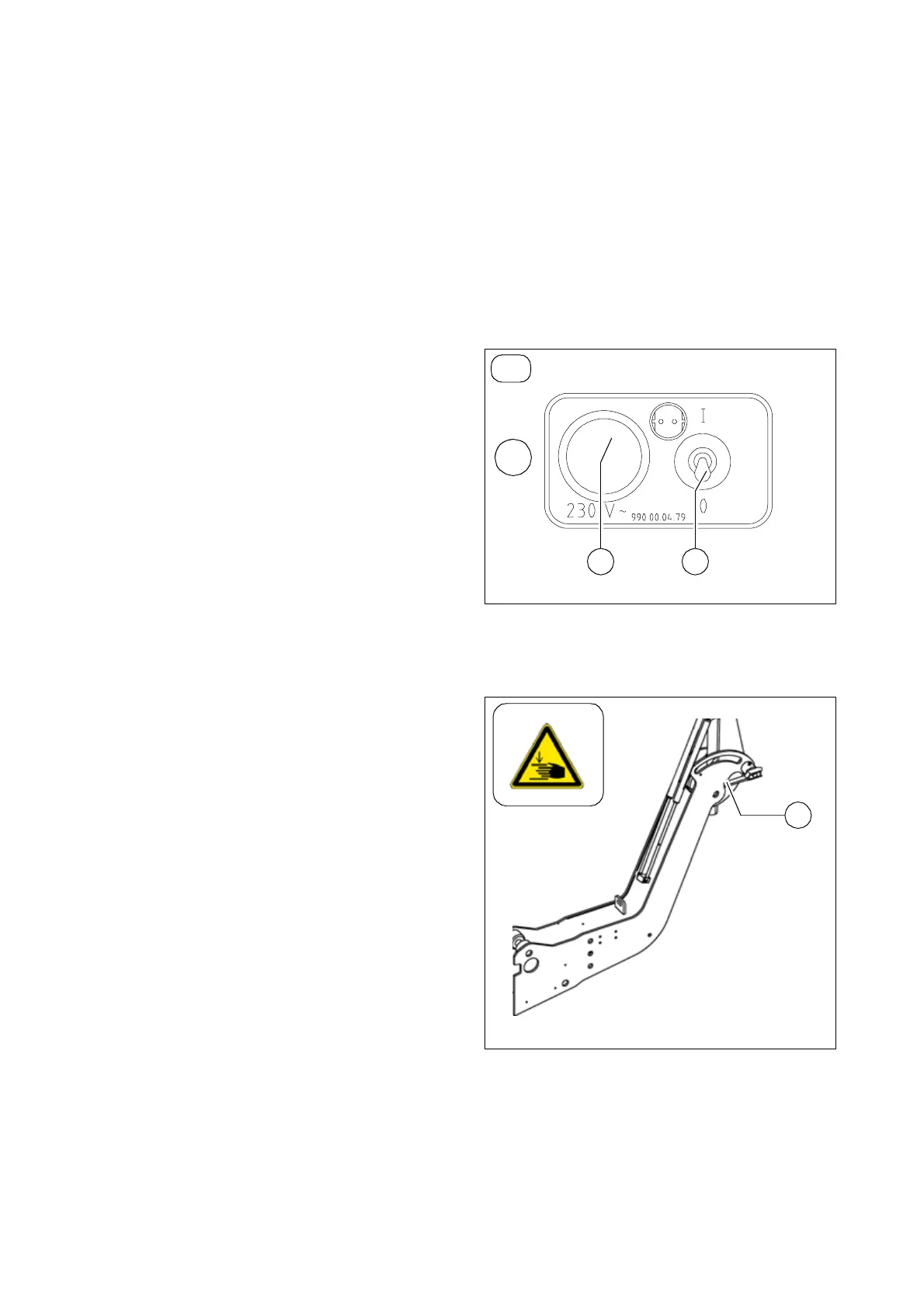

Connection sockets (85f)
In case of being equipped with 230 V ac-
cessories, the connection sockets can
be powered through switches (a). In the
switch position „I“ the control light (b) is
on.
Locking of the collapsible roof (LH
and RH on the roofs console) (86):
To lower the roof (for example during
transport on a low bed trailer):
- Loose the twistlock (A)
- Pull the roof frame forward holding the
clevis or the frame
- Arrest the twistlock in the second lock-
ing hole.
85f
b a
Schalt_230V.wmf
(o)
A
