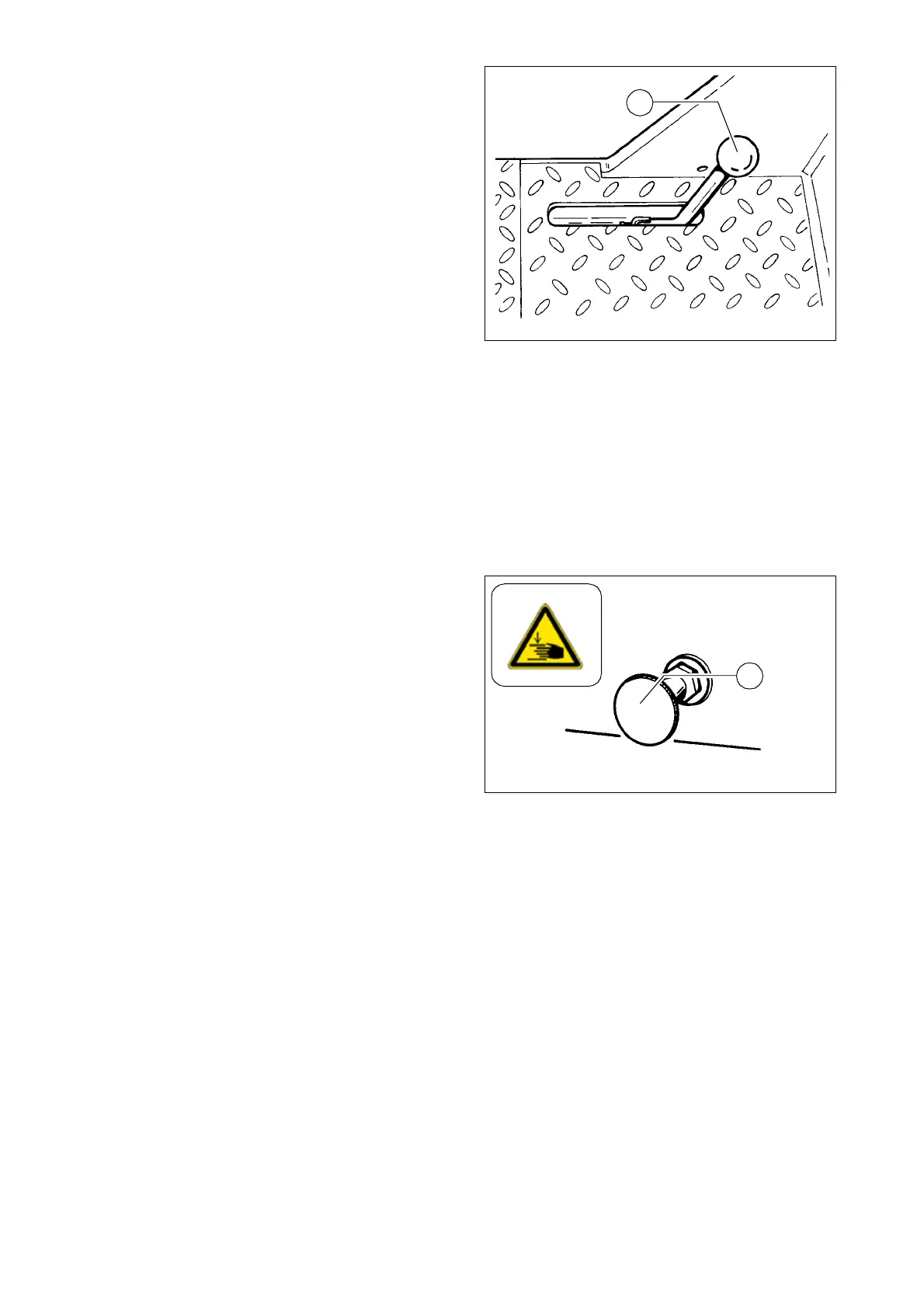

Mechanical screed transport safe-
guard (to the left and the right be-
neath the driver’s seat) (74)
Used to protect the lifted screed from in-
advertent lowering. The screed transport
safeguard must be inserted before trans-
portation and when work is finished.
f
Transportation with an unsecured
screed bears the danger of accidents!
- Lift the screed.
- Actuate the levers.
- Check that the latches (to the left and to the right) engage in the crossbeams.
m
ATTENTION!
Insert screed lock only at crown adjustment „zero“! Screed lock only for transportation
Use the interlocking of the main girder for transportation only!
Do not enter or work under screed only secured with screed lock for transportation!
Danger of accident!
Seat lock (behind the driver’s seat)
(75)
Telescoping seats (o) can be extended
beyond the basic width of the paver fin-
isher. They must be locked.
f
The seats must not protrude from the ve-
hicle during transportation. Push the
seats back to the basic width of the pav-
er finisher!
- Pull out the locking button and move the seat; let the locking button engage again.
f
The driver’s seat can move when the locking button is not engaged properly. Danger
of accidents during transportation!
F0083_A1.TIF
74
F0169_A1.EPS
75
