B 2
B_F121C_F141C_02_GB.fm 2-24

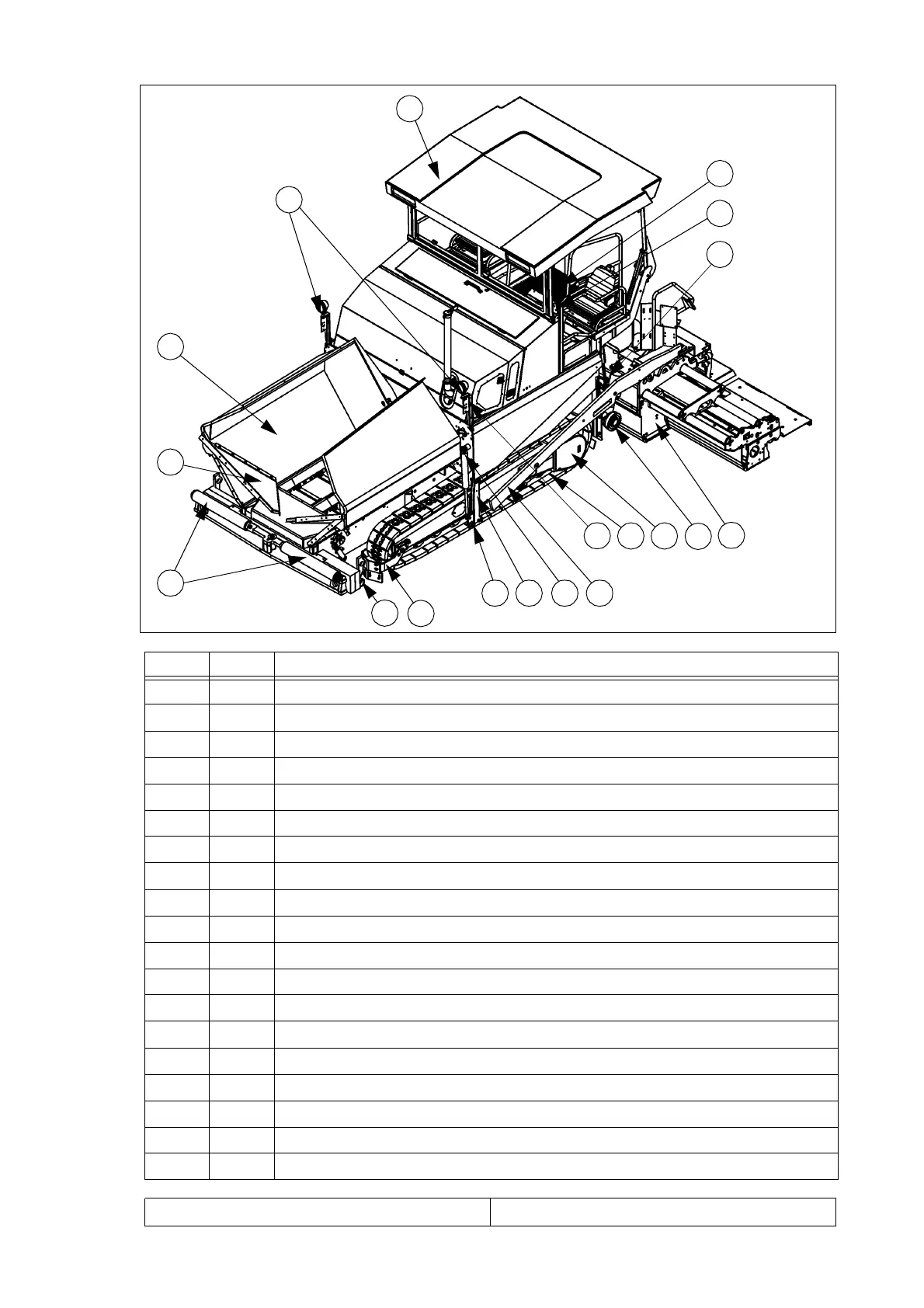

2 Description of assemblies and functions
Item Designation
1 t Material compartment (hopper)
2 t Truck push rollers
3 t Tube for sensor rod (direction indicator) and holder for levelling shoe
4 t Caterpillar drive
5 t Levelling cylinder for paving thickness
6 t Traction roller
7 t Traction arm rail
8 t Paving thickness indicator
9 t Arm
10 t Traction drive of the caterpillar drive
11 t Auger
12 t Screed
13 t Operator’s platform
14 t Operating panel (can be moved to either side)
15 o Protective roof
16 o Working lights
17 o Track cleaner
18 o Hydraulic front hopper lid
19 o Exhaust of asphalt vapours
t
=
Standard equipment o = Optional equipment
2
16
11
9
13
14
15
17
3
6 7 5
8
4 10
12
1
18
19
