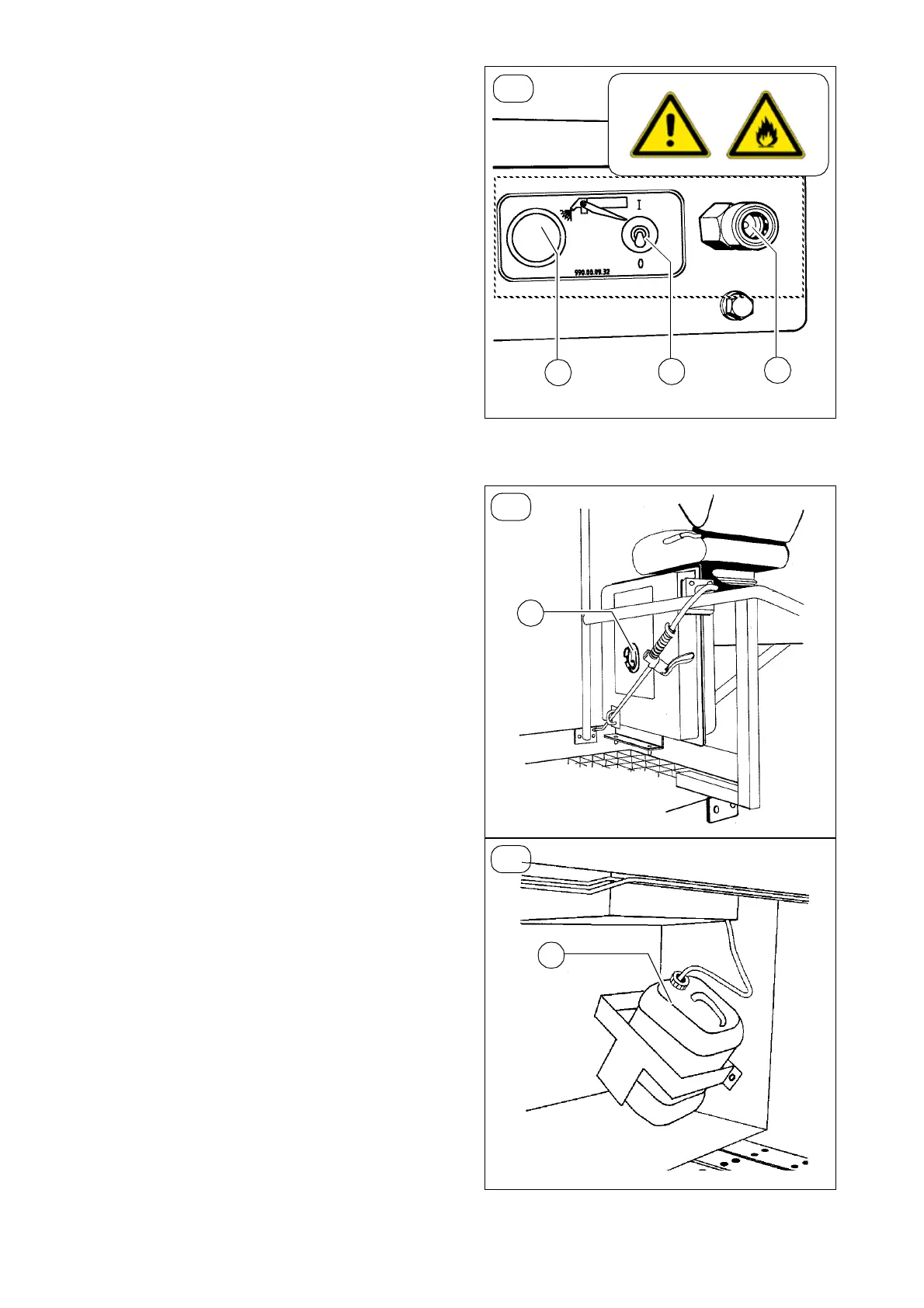

Separator fluid spraying system (80)
(o)
Used to spray the parts coming into con-
tact with asphalt with a separator emul-
sion.
- The indicator lamp (A) lights up when
the emulsion pump is running
- On/off switch (B) for the emulsion
pump
- Quick-release coupling (C) for hose
connection
m
Only switch on the spraying system
when the diesel engine is running; other-
wise, the battery will be discharged.
Switch off after use.
A
A permanent installed hose guide (D) for
the fluid spraying system is available as
an option.
Pull hose out of the guide till there is an
audible creak. The hose will engage in
this position after discharging.The hose
will be retracted automatic into the guide
after pulling and discharging again.
f
Don’t spray into open flame or on hot
surface! Danger of explosion!
A
The spraying system is feeded by a can
(E) under the side flap on R.H. side.
f
Refill the can only while standstill of the
paver finisher!
