F 4.2 5
F_4.2_01_GB.fm 5-6

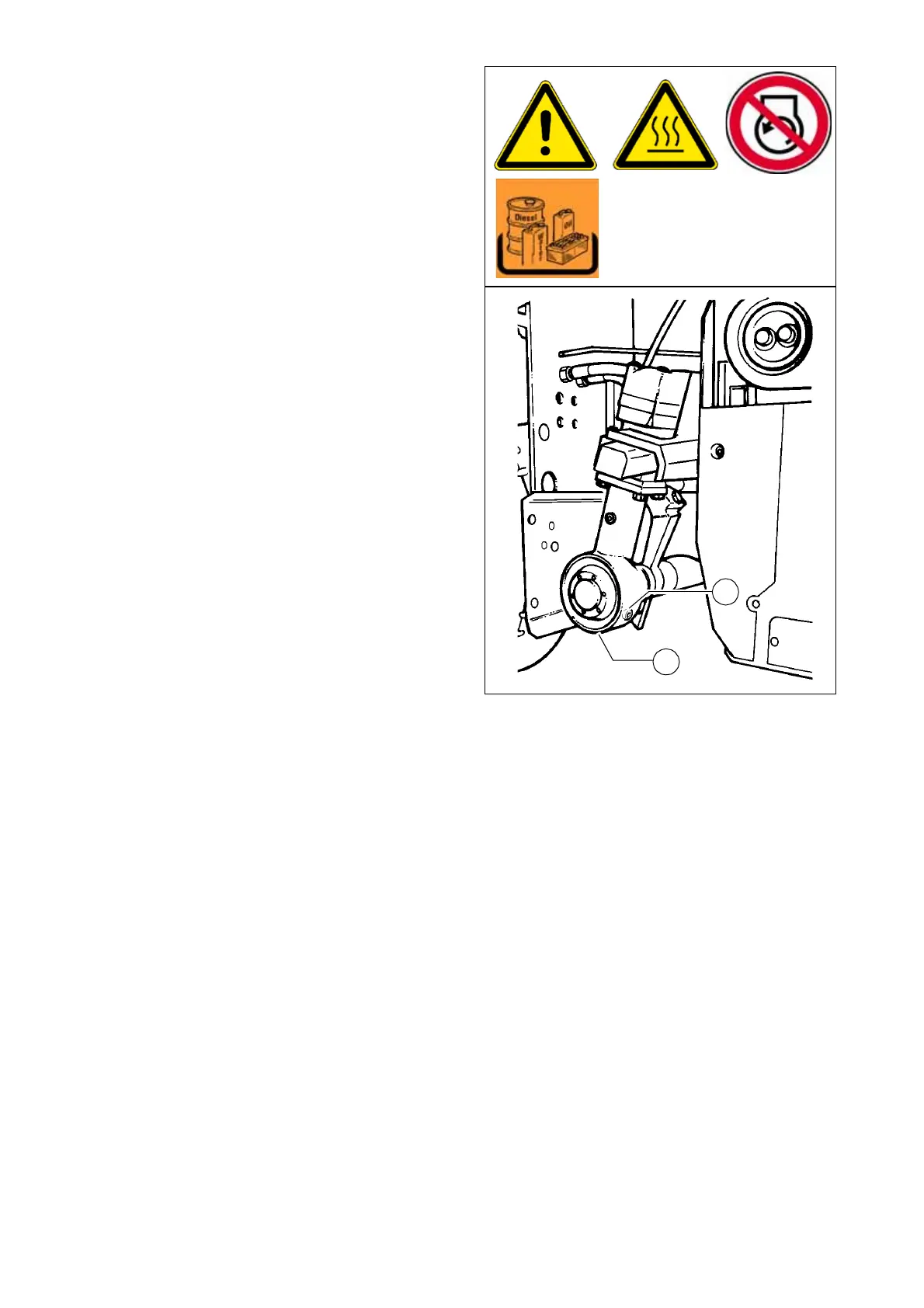

Auger bevel gear (on the RH and LH
sides) (4)
-For checking the oil level unscrew
the inspection / filling plug (A).
A
In case of proper oil level, the oil is at the
lower edge of the inspection port or a lit-
tle oil flows from the hole.
For filling in the oil:
- Remove the inspection / filling plug
(A).
- Fill oil of the correct specification
through the filling hole (A) until the oil
level reaches the lower edge of the in-
spection hole (A).
- Replace the inspection / filling plug
(A).
For changing the oil:
A
Change the oil when the engine is at op-
erating temperature.
- Remove the inspection / filling plug (A)
and the drain plug (B).
- Drain the oil.
- Drive in the oil drain plug (C) again.
- Fill oil of the correct specification through the filling hole (A) until the oil level reach-
es the lower edge of the inspection hole (A).
- Replace the inspection / filling plug (A).
m
Take care of cleanliness!
F0139_A1.TIF
A
B
