Central lubrication unit (o) (100)
The central lubrication unit turns on in
automatic mode when the drive engine
starts.
- Pumping time: 12 min
- Duration of the break: 2 h
m
It is prohibited to change the factory-set
durations of pumping and break without
consulting the technical customer serv-
ice!
A
Changing the duration of lubrication and
breaks may be necessary when placing
mineral or cement bound material mix.

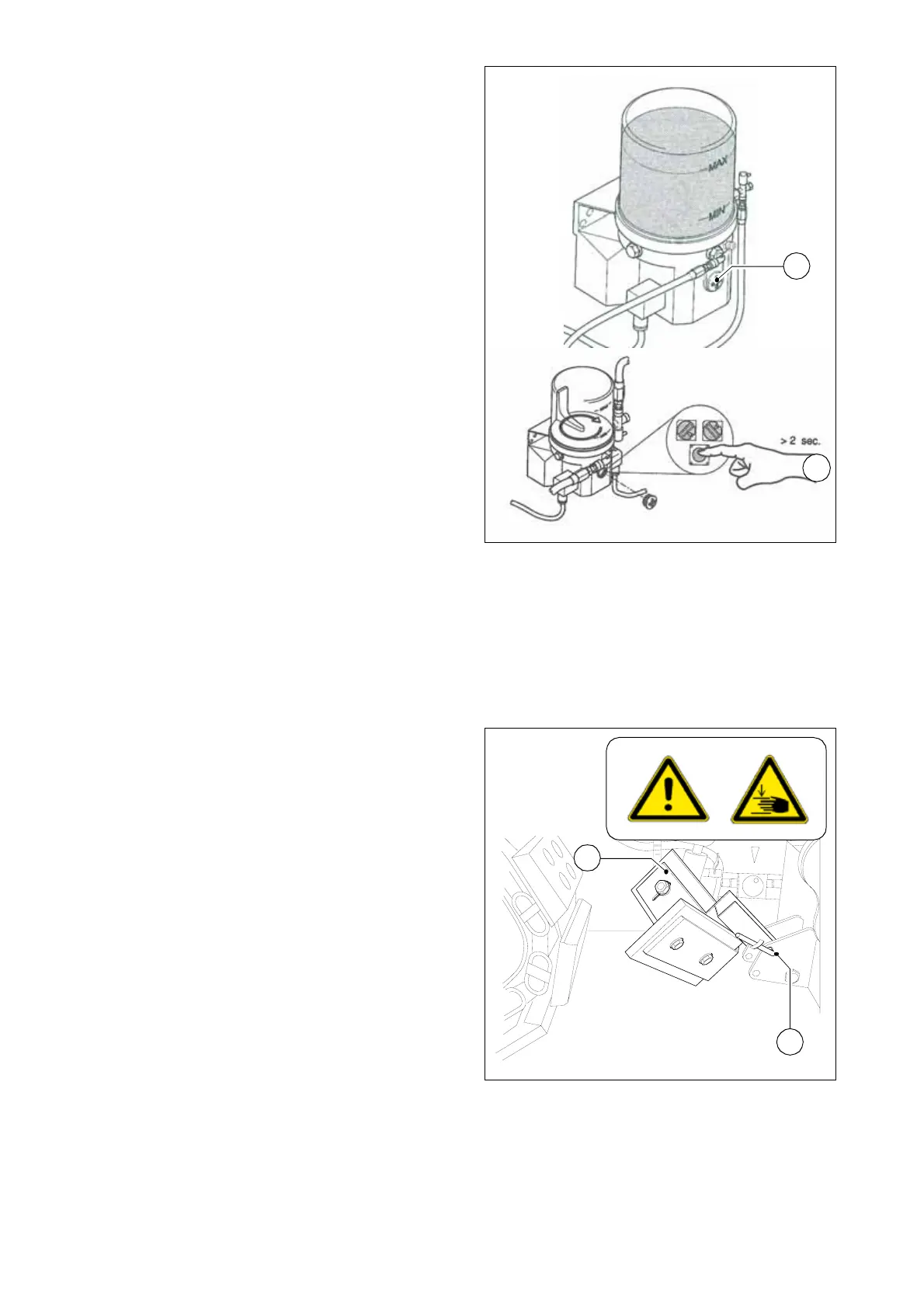

Manual start of lubrication (pumping
time):
- Remove the cover lid (a).
- Keep the starting button (b) depressed for at least 2 sec.
- Replace the cover lid (a).
A
Observe the instructions of chapter „Maintenance“!
Track cleaner (o) (101)
Movable track cleaners (a) are fitted be-
fore the two front crawler tracks, which
divert the small obstacles to the side.
A
The track cleaners may be in folded
down position only while paving.
Tilting of the track cleaner:
- Remove the safety pin (b) and the bol-
ster.
- Set the track cleaner (a) to the re-
quired position and lock again with the
bolster and the safety pin.
