B 6

B_F121C_F141C_02_GB.fm 6-24

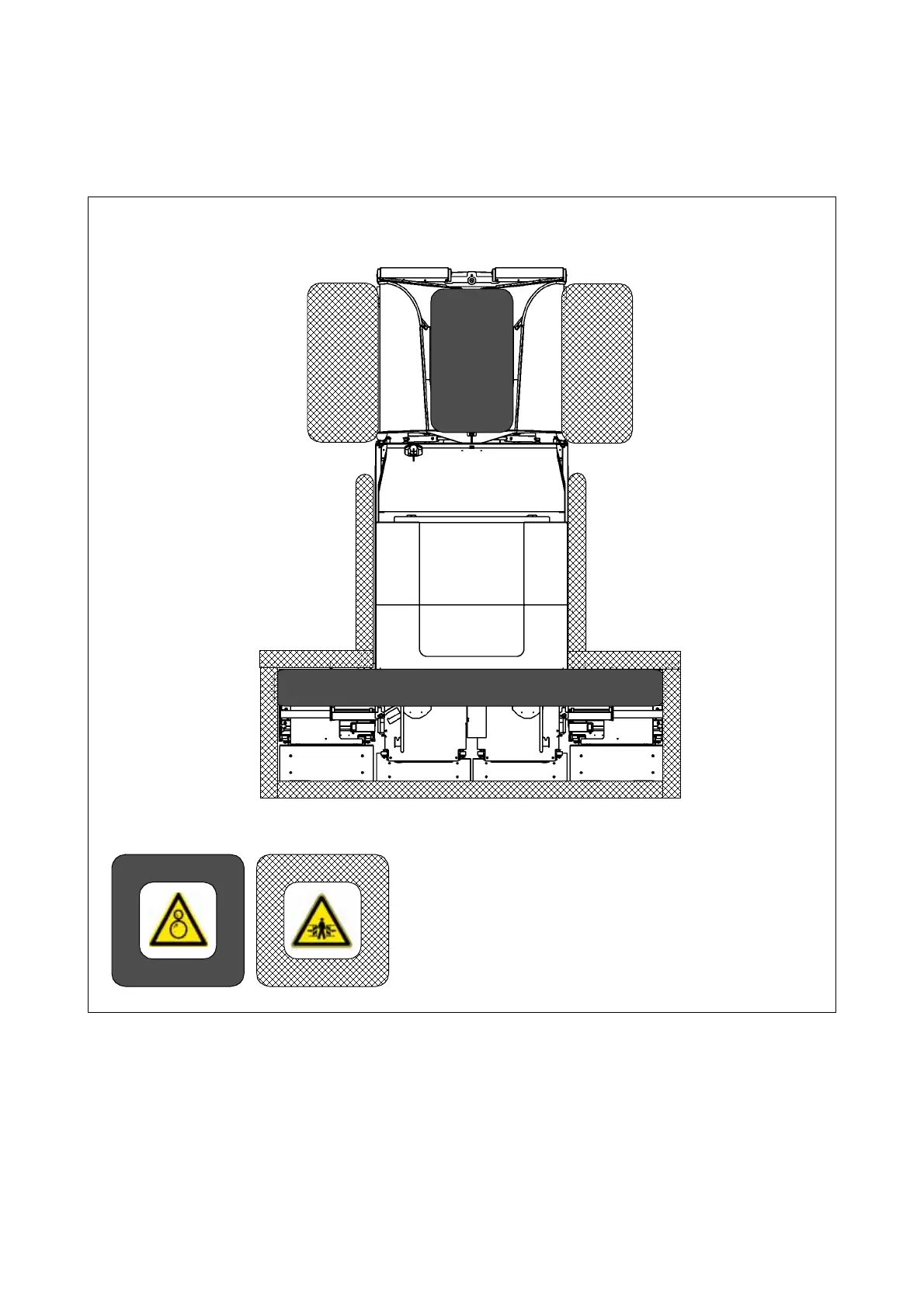

3 Danger zones

In these areas of the machine there is a danger of pulling in or crushing due to the

rotating, transporting or moving parts!
