D 3.1 Operation
1 Operating elements on the paver finisher
Batteries (71)
The batteries of the 24 V system are lo-
cated under the left maintenance flap.
A
For the specifications, refer to chapter B,
”Technical Data”.
For servicing, see chapter F.
m
Heed the instructions when starting the
paver finisher externally. (see section
“Starting the paver finisher, External
starting (starting aid)“).

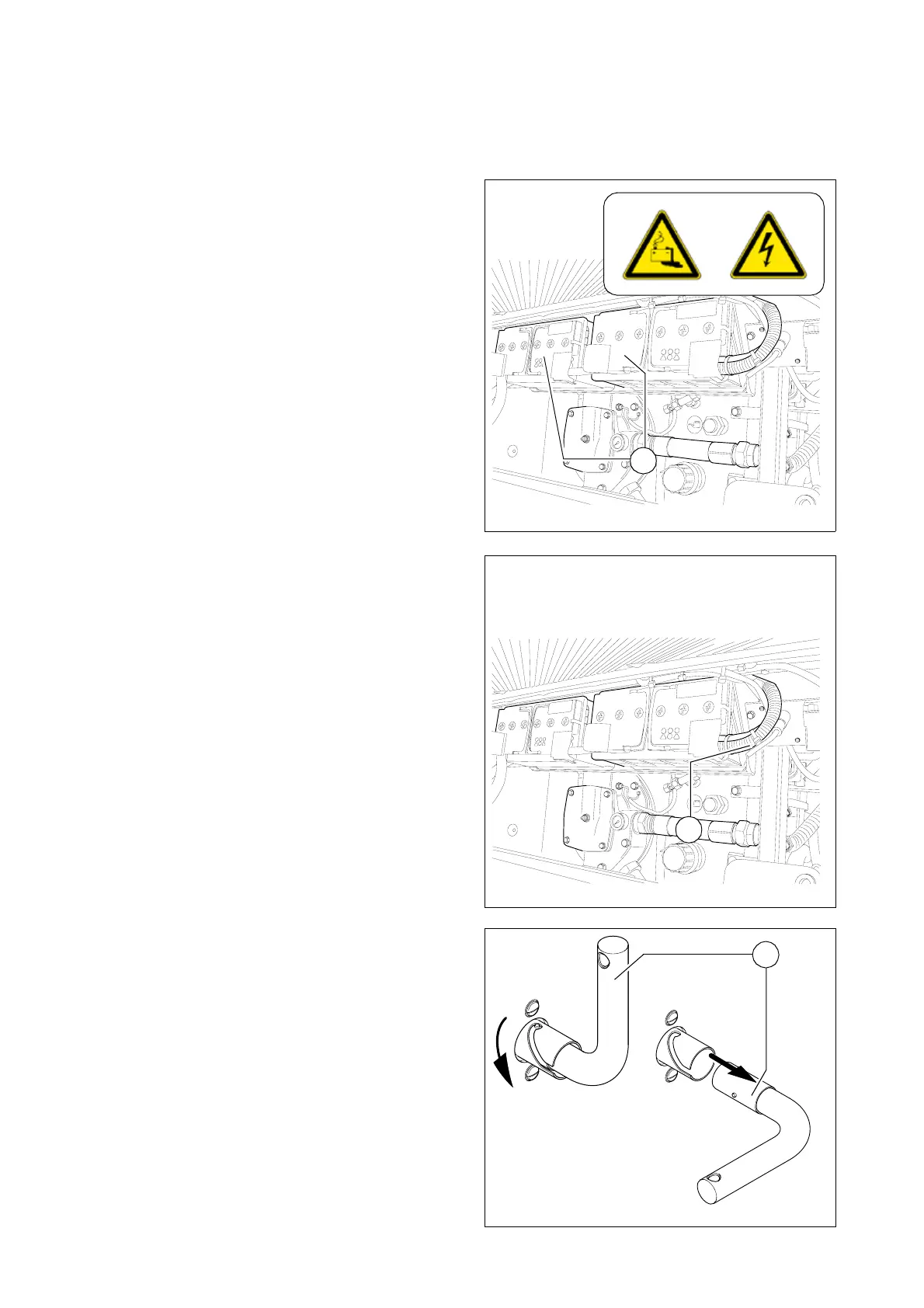

Battery main switch (72)
The main switch interrupting the circuit
between the battery and the main fuse is
located under the left maintenance flap.
A
For the assignment of all fuses, see
chapter F.
- For switching off, turn the key (72) to
the left and pull it out.
A
Do not lose the key as in this case the
paver finisher can no longer be moved!
71
Tankhood_LH.eps
Tankhood_LH.eps
72
F0077_A1.EPS/F0078_A1.EPS
72
