F 8.1 20
F_8.1_01_GB.fm 20-20

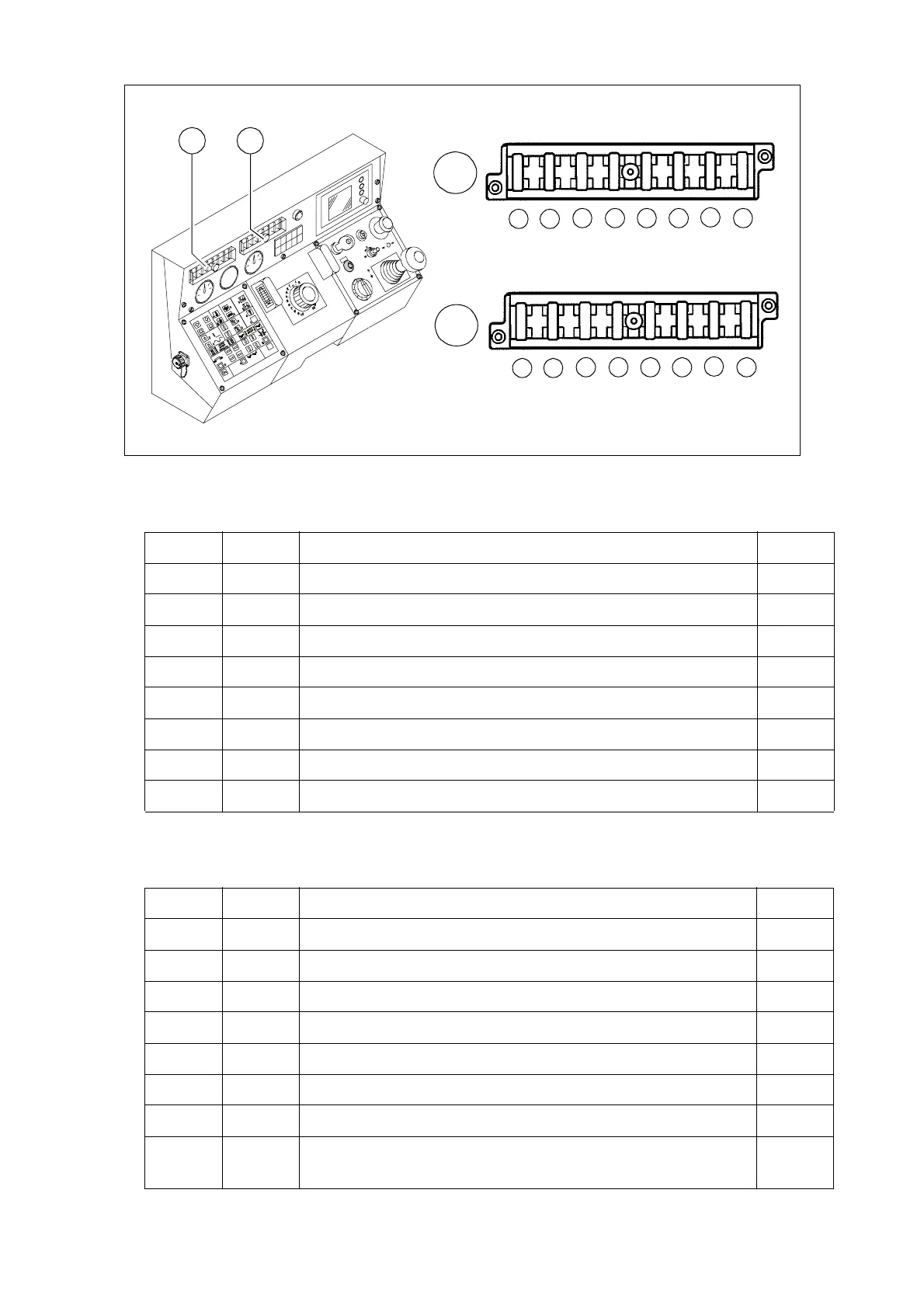

Fuses on the operating panel
Fuse carrier (A)
Fuse carrier (B)
No. F F1,1 - F1,8 A
1. 1.1 Emergency stopping 7.5
2. 1.2 Monitoring systems, Bat 15+ relay, motor sensors 3
3. 1.3 Display power supply, keyboard 3
4. 1.4 free
5. 1.5 free
6. 1.6 free
7. 1.7 Screed power supply,cabin movement (o)5
8. 1.8 free 7.5
No. F. A
1. 2.1 free
2. 2.2 Horn, reversing alert 3
3. 2.3 Windscreen wiper (o), road profile adjustment 7,5
4. 2.4 Headlights on the left/right sides 7,5
5. 2.5 RH-side low beam headlight 3
6. 2.6 LH-side low beam headlight 3
7. 2.7 RH-side position light 3
8. 2.8
LH-side position light, instrument panel light, instru-
ment light
3
A
Bedienpult_SPS_Kette_635_Fuse1/Fuse1.tif/Fuse.bmp
1 2
3 4 5 6
7
8
1 2
3 4 5 6
7
8
B
A
B
