F 3.0 4
F_3.0_01_GB.fm 4-4

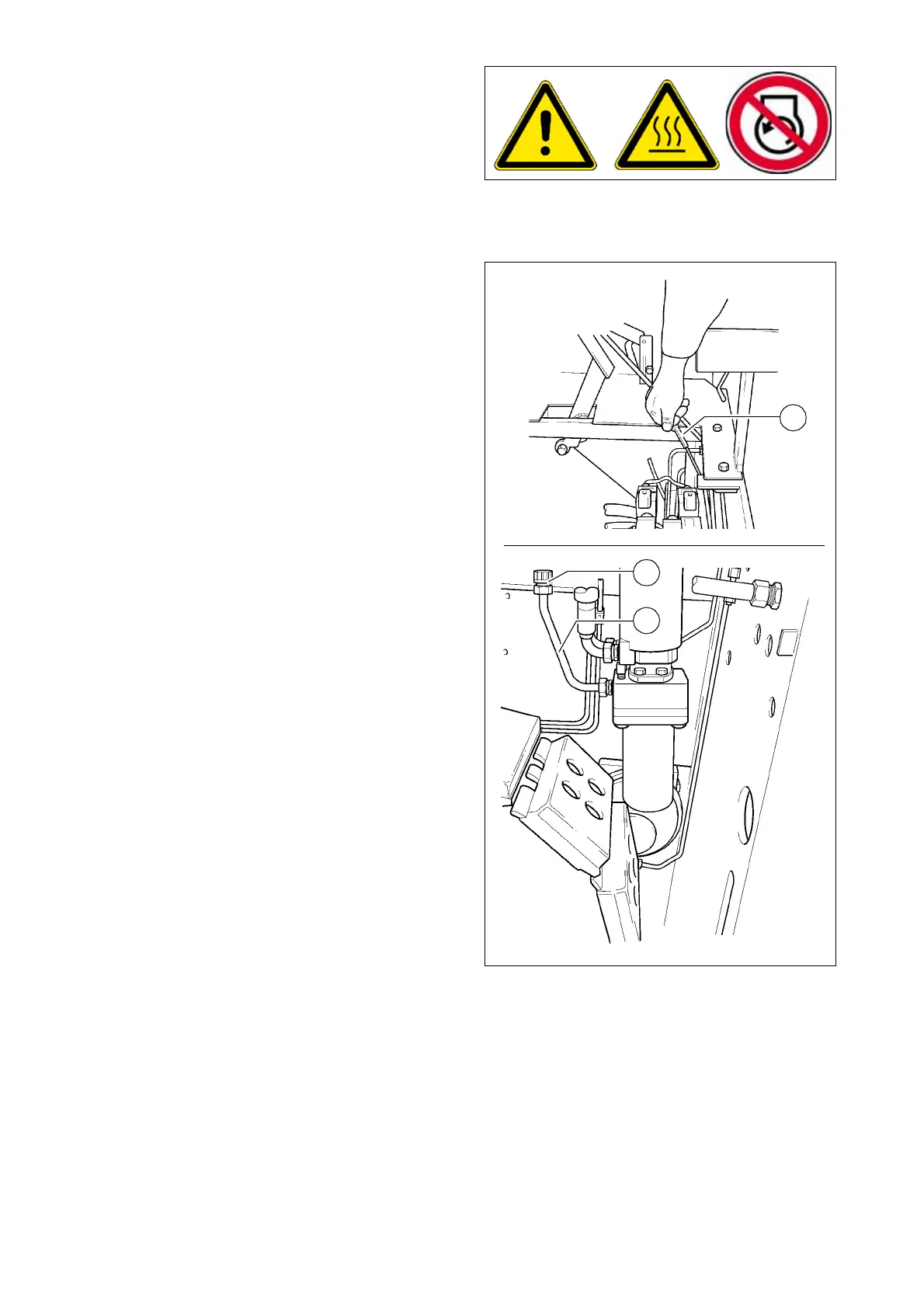

The drive of conveyor (to the left/to
the right) (2)
The drive unit of the conveyor is under
the floorboard of the operating position.
Checking the oil level Only before the
work starts. The oil level must reach the upper notch of the dipstick (A).
Filling in the oil: After removing cover lid (B) through fill-in stub (C).
A
On the dipstick about 10 cm corre-
sponds to about 0,25 l oil to be added.
The drive of the conveyor is filled in the
factory with Optimol Optigear 220 oil.
Owing to the excellent quality of the oil
filled in, there is no need for regular oil
change.
It is sufficient to regularly check the oil
level in the drive (see chapter of mainte-
nance intervals).
m
The above applies only if Optimol Op-
tigear 220 or oil of a similar quality from
another manufacturer is used.
F0151_A1.TIF/F0152_A1.TIF
A
C
B
