Planetary gear (2)
- For checking the oil level unscrew the
inspection plug (A).
A
In case of proper oil level, the oil is at the
lower edge of the inspection port or a lit-
tle oil flows from the hole.
For filling in the oil:
- Remove filling plug (A).
- Fill oil of the correct specification
through the filling hole (A) until the oil
level reaches the lower edge of the fill-
ing hole (A).
- Replace the cap (A).

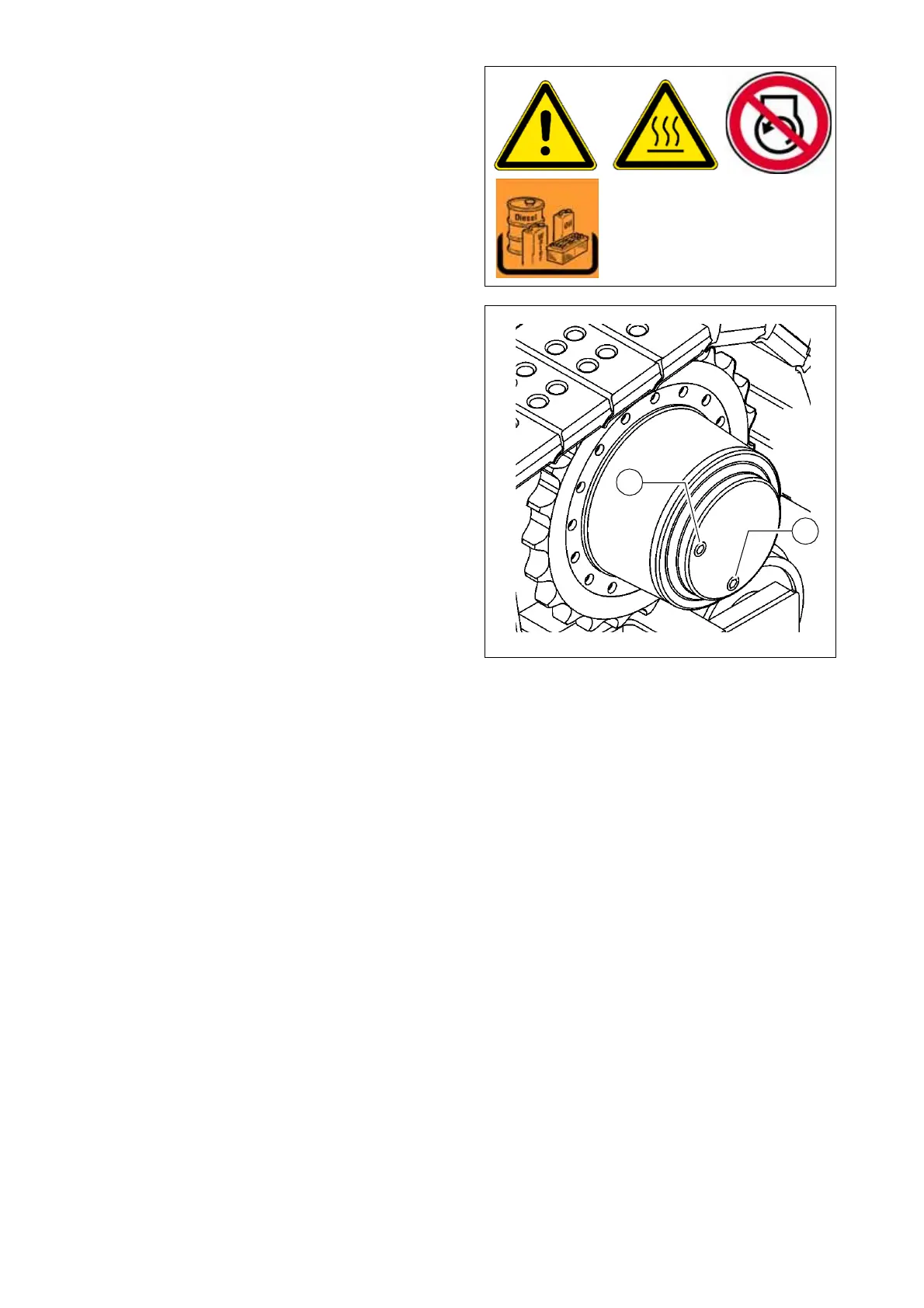

Oil change:
A
Change the oil when the engine is at op-
erating temperature.
m
Make sure that no pollution or foreign
matter gets into the drive.
- Turn the drive so that the „oil max“
mark stands horizontally and the drain
screw plug (B) is at the bottom.
- Unscrew the drain plug (B) and the filling plug (A) and drain the oil.
- Check and replace the seals of both screw plugs.
- Return plug (B).
- Fill in new oil through the filling port until the „oil max“ mark is achieved.
- Drive in filling plug (A).
A
B
