F 5.1 4
F_5.1_01_GB.fm 4-12
1.2 Points of maintenance

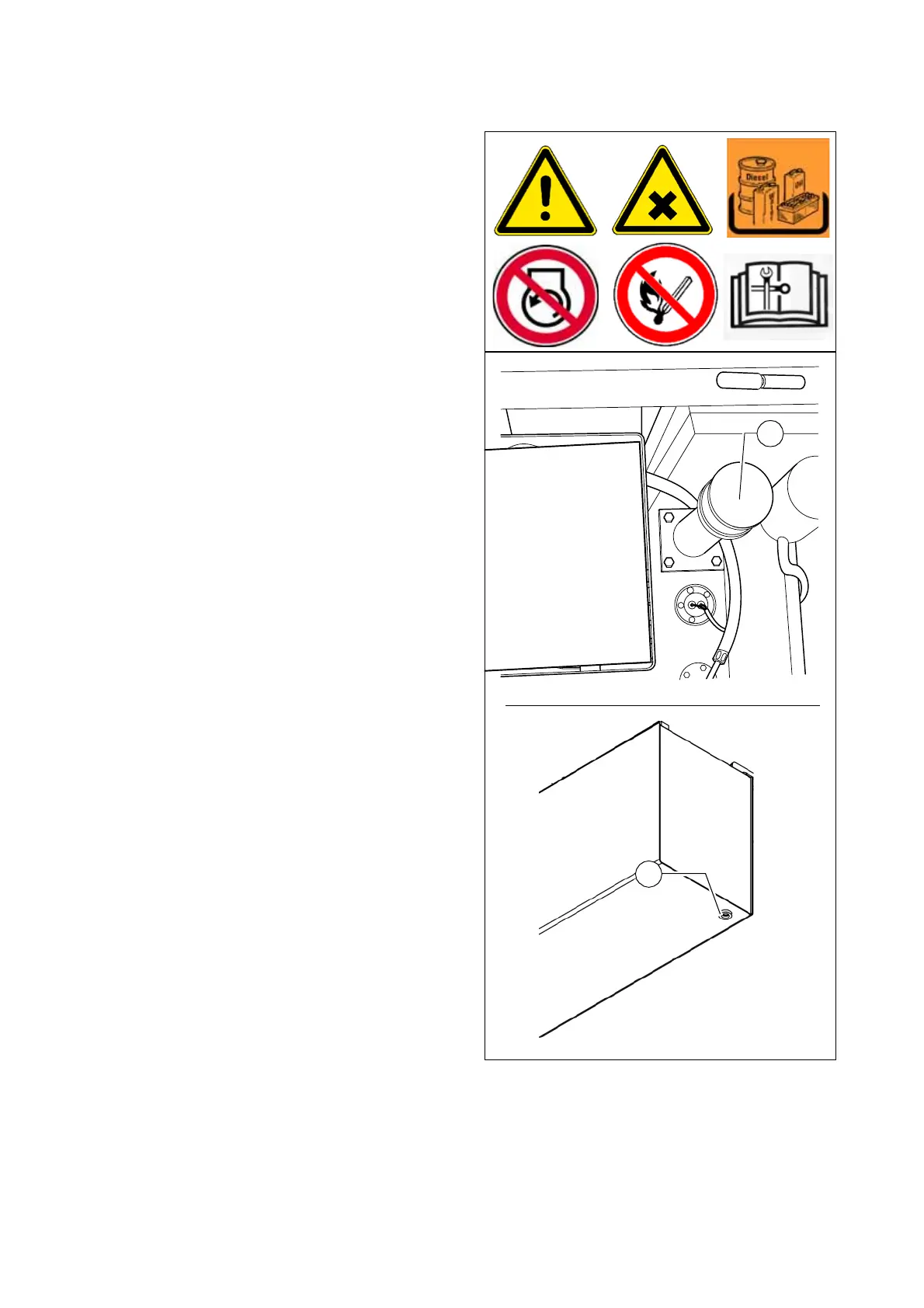

Engine fuel tank (1)
- Check the filling level on the gauge
on the operating panel.
A
Fill the fuel tank before each start of
work so that the fuel system cannot „run
dry“ and this way the time consuming
venting (bleeding) can be avoided.
For filling in the fuel:
- Unscrew cap (A) (under the tank cov-
er).
- Fill in fuel through the filling port until
the required filling is achieved.
- Replace the cap (A).
Cleaning of tank and device:
- Unscrew the plug (B) at the bottom of
the tank and drain into a collection pan
about 1 lit fuel.
- After drainage screw back the plug
with a new seal ring.
Dieseltank.eps/HDieseltank_bot.bmp
A
B
