Central lubrication unit
Check the filling level
A
The lubrication tank shall always be
filled so that the system could not „run
dry“ and the proper lubrication of the
points of lubrication is ensured and there
is no need for a time consuming venting
operation.
- Always keep the filling level above the
„MIN“ mark of the tank (a).

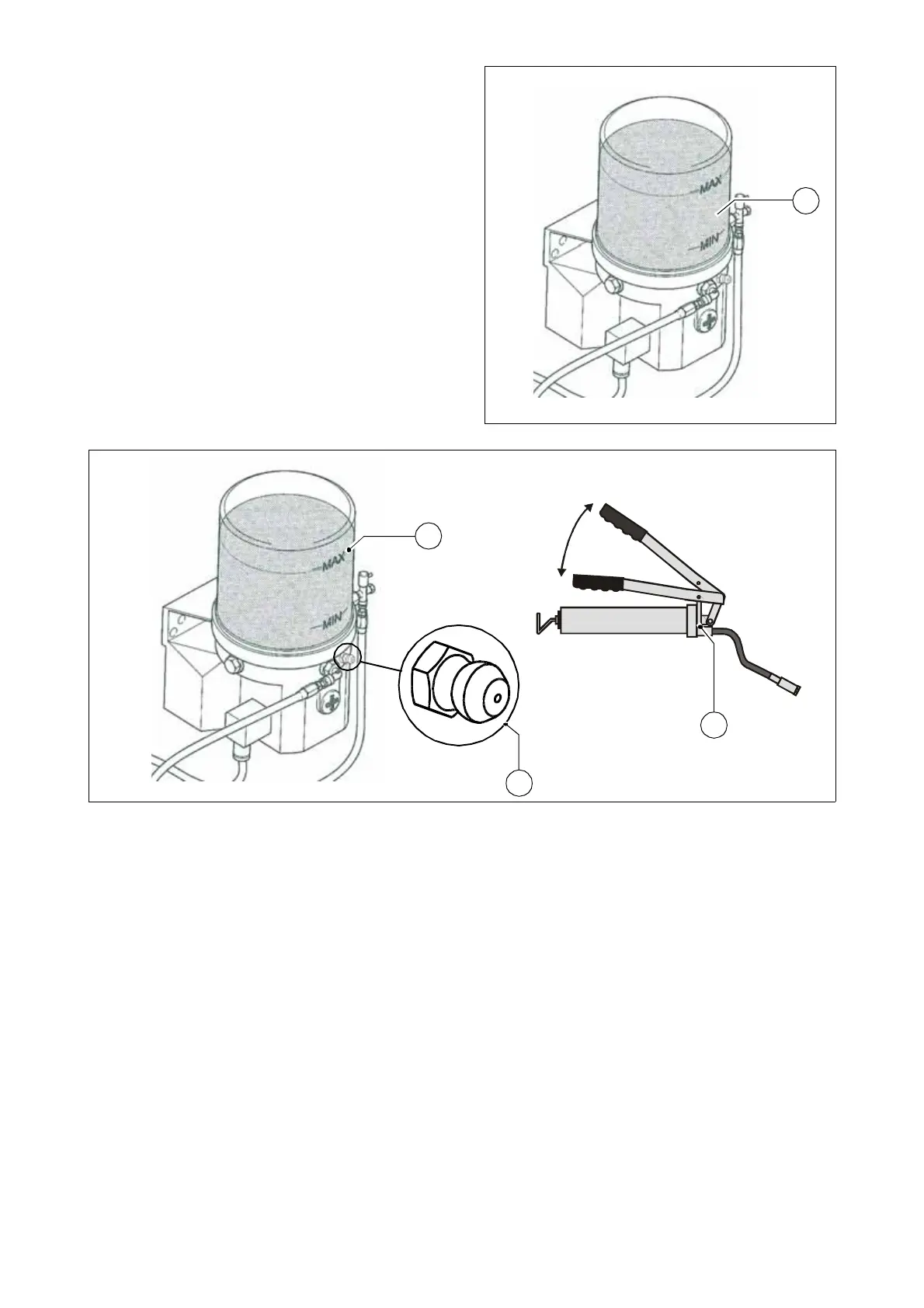

Fill up the lubricant tank
- A grease nipple (b) is mounted for filling on the lubricant tank (a).
- Connect the grease gun (c) supplied with the machine to the filling head (b) and fill
the lubricant tank (a) until the MAX mark.
A
In case of an empty lubricant tank the pump may work for even 10 minutes before is
reaches its full delivery performance after filling.
Lincoln3.jpg/Lincoln4.jpg
a
Lincoln3.jpg/Grease2.wmf/Greasegun.wmf
b
c
a
