Track tension of caterpillar drive (4)
The track tensioner for the drive track is
filled via the grease nipple (A) located on
the side of the caterpillar drive:
Checking track tension:

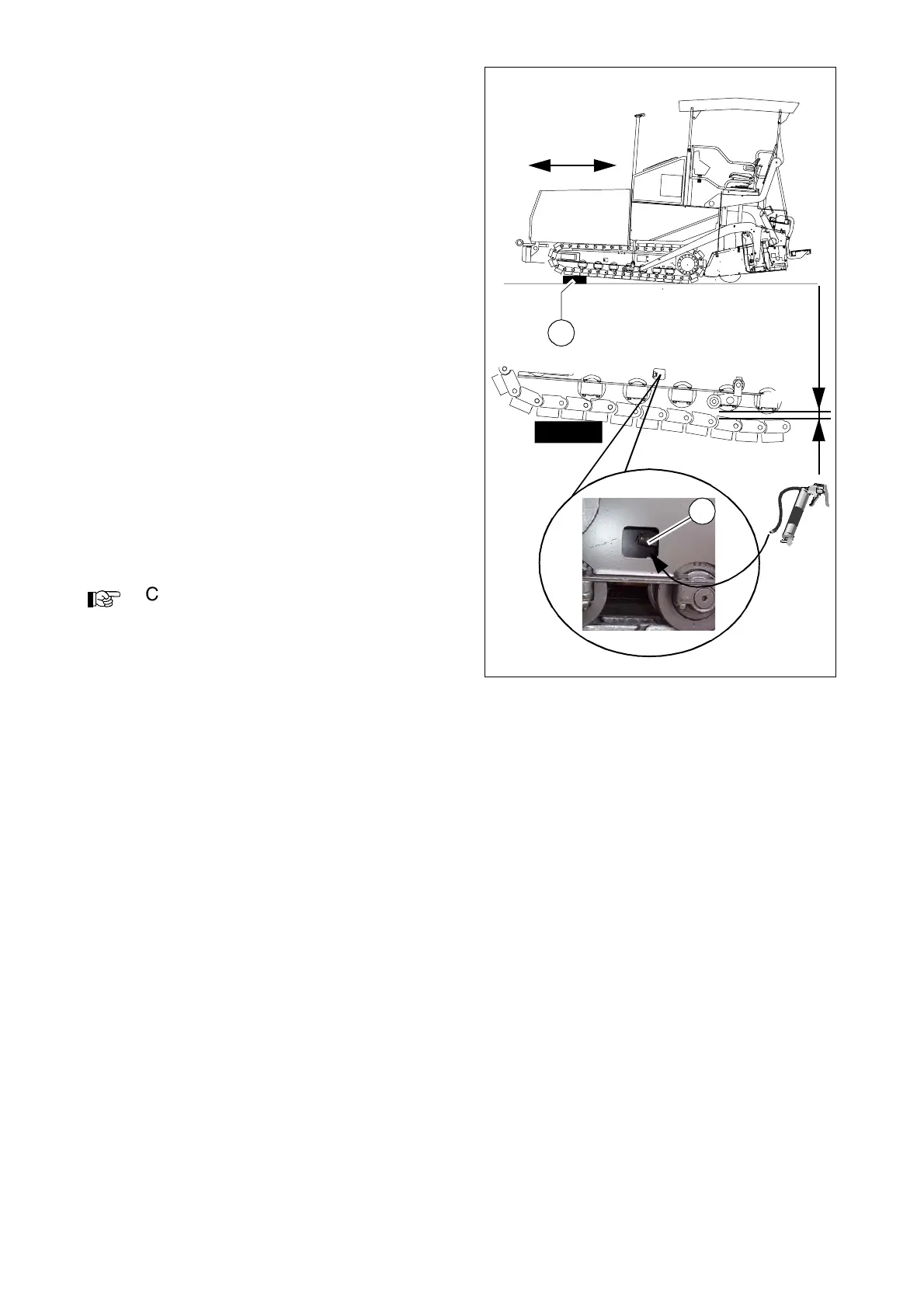

Drive the finisher’s caterpillar drive on a
suitable block of wood (B) or similar ob-
ject.
To relieve track tension, reverse slightly
so that the machine is however still on
the wooden block.
The track tension is correct when the
chain sag between the middle roller and
chain is 20-30 mm.
If necessary, use a grease gun to top up
grease on chain tensioner (A).
Then move the machine a little forwards
and backwards and check the sag
again.
Carry out this process on both caterpillar
drives!
