2 Transportation on low-bed trailers
$
Reduce the paver finisher and the
screed to their basic widths; also remove
any attached side plates. To prevent
damage to the screed, the inclination of
the ramp to be used must not exceed
15° (26 %).
2.1 Preparations

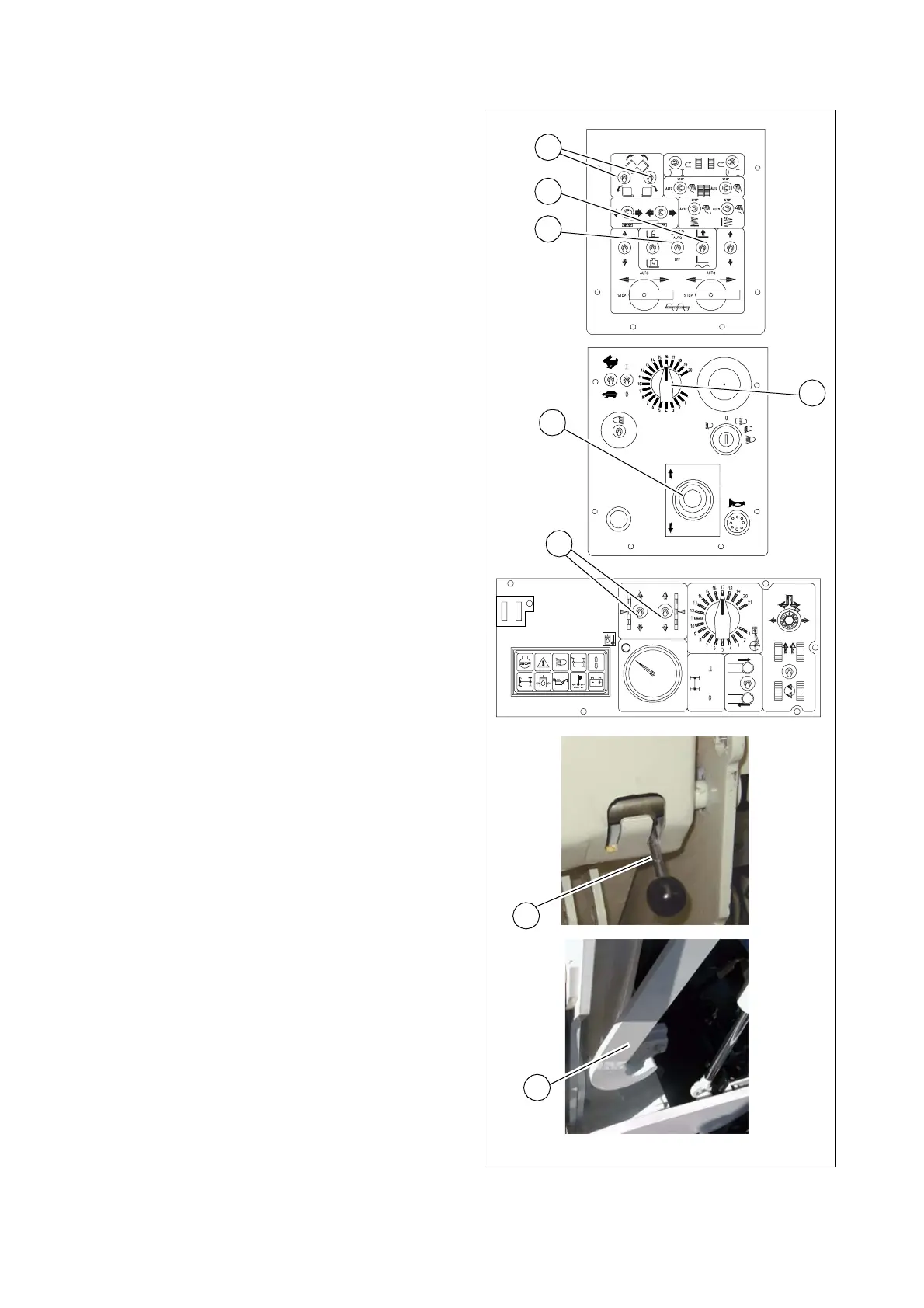

- Prepare the paver finisher for opera-
tion (see chapter D).
- Use switch (1) to close the hopper lids.
Engage both hopper transport safe-
guards (2).
- Set switch (3) to „OFF“ (automatic off)
and raise screed with switch (4). En-
gage the screed transport safeguards
(5).
- To extend the levelling cylinders:
- Turn the preselector (6) to zero.
Move the drive lever (7) forward.
- Push the switch (8) downward until
the levelling cylinders are completely
extended.
- Set the drive lever (7) to the centre
position.
- Retract the screed parts until the
screed matches the basic width of the
paver finisher.
- Remove all protruding or loose parts
from the paver finisher and the screed
(see also the „operating instructions
for the screed“). Store these parts in a
safe place.
- If an optional screed with a gas heater
system is fitted:
- Remove the gas bottle for the screed
heater system:
- Close the main shut-off valve and
the bottle valve.
- Unscrew the valve on the bottle, in-
stall the protective cap and remove
the gas bottle from the paver finish-
er.
- Transport the gas bottle on a second
vehicle, adhering to all safety regula-
tions.
