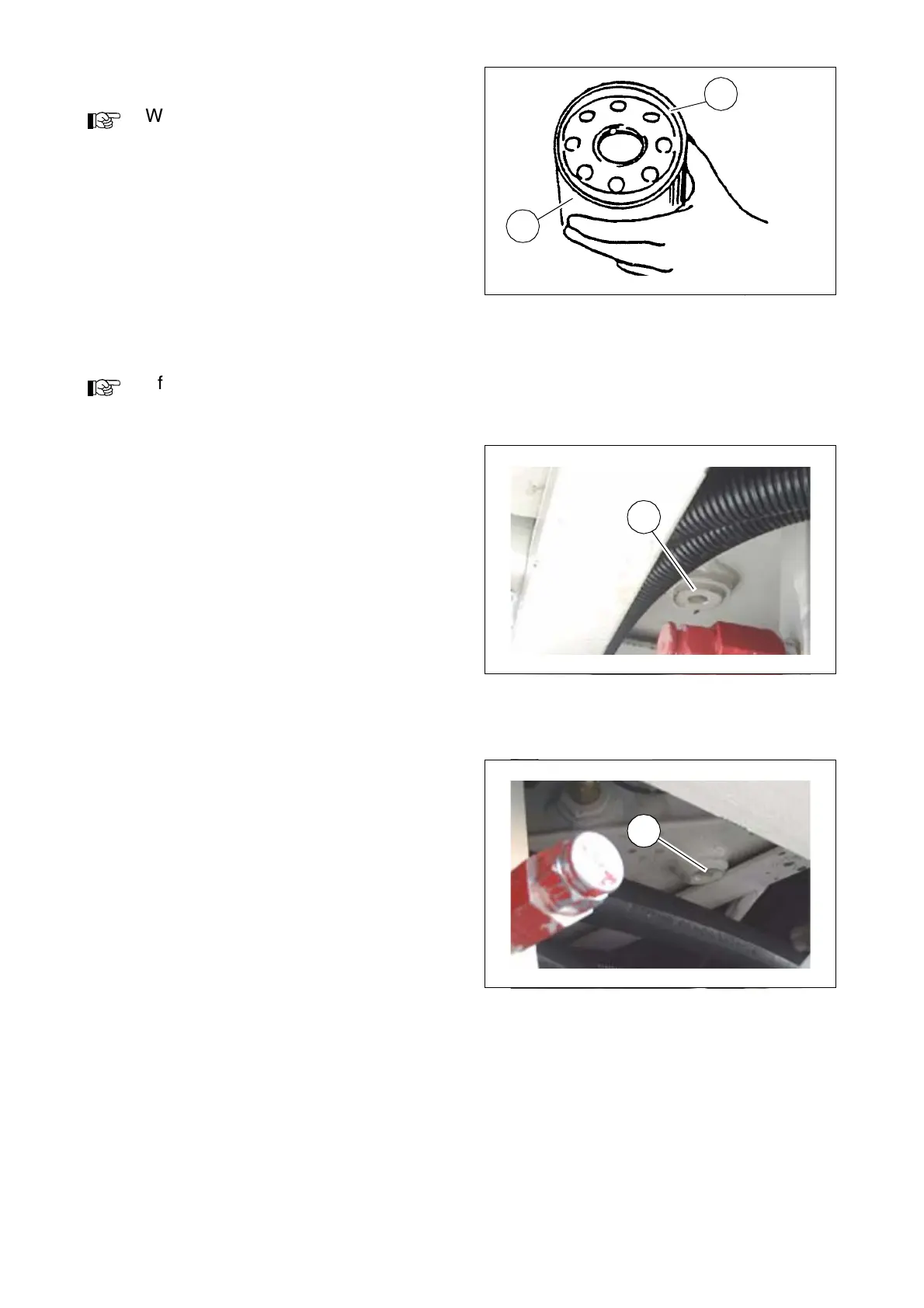

Drive motor – oil filter cartridge
When changing the oil, the new car-
tridge is inserted after the used oil has
been drained.
- Loosen the filter cartridge (17.3) with a
filter wrench or a screwdriver and un-
screw manually.
- Lightly oil the rubber gasket (17.4) for
the new lubricating oil filter cartridge
and screw in manually until the gasket is flush.
- Tighten the cartridge by turning it one further half revolution.
After installing the oil filter, attention must be paid to the oil pressure display and good
sealing during the test run.
Fuel tank (22)
In order to drain water and sediment:
- Position a collecting vessel.
- Unscrew the drain plug (22.1) on the
bottom of the tank.
- Drain approx. 1 l fuel into the collecting
vessel.
- After draining, screw the screw in
again, using a new gasket.
$
Dispose of collected fuel according to the national regulations.
Hydraulic oil reservoir (25)
To drain the hydraulic oil, the drain plug
(25.1) must be unscrewed and the oil
must be collected in a container with the
aid of a funnel.
After draining, screw the screw in again,
using a new gasket.
Mo_oel4.tif
17.3
17.4
22.1
25.1
