Dynapac F6C - Conveyor Drive Chains (8)

F 15
F F6C.GB 15-30 0504
Conveyor drive chains (8)


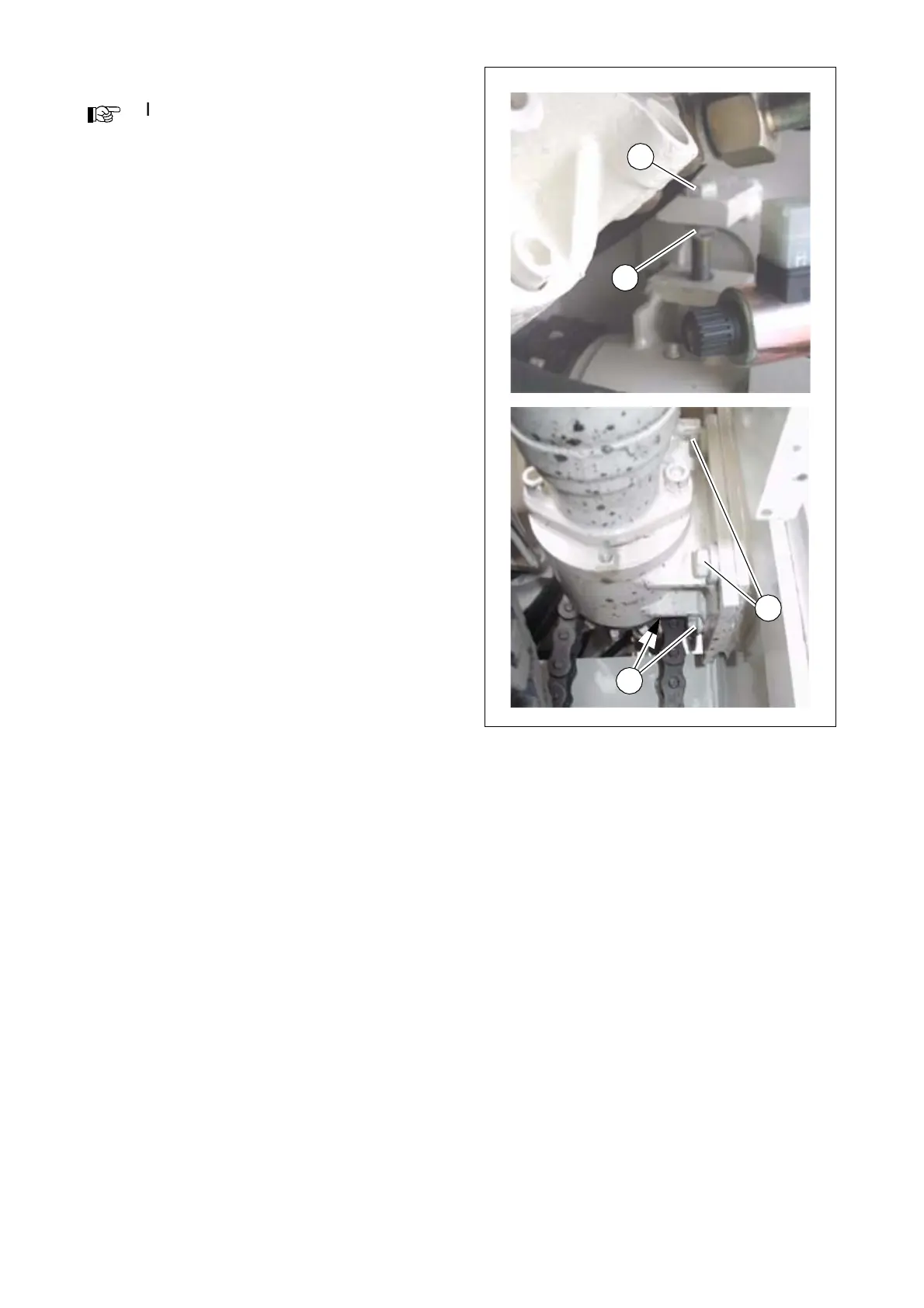

If the tension has been set properly, the
chain must be able to move freely ap-
prox. 10 - 15 mm.
Slightly loosen the four fastening bolts
(8.1) and the lock nuts (8.2) to re-tension
the chains.
Use the tensioning screw (8.3) to set the
required chain tension.
Re-tighten the fastening bolts and the
lock nuts.
$
Only carry this work out when the engine
is switched off!
8.2
8.3
8.1
8.1
