D 23
D F6C.GB 23-50 0504

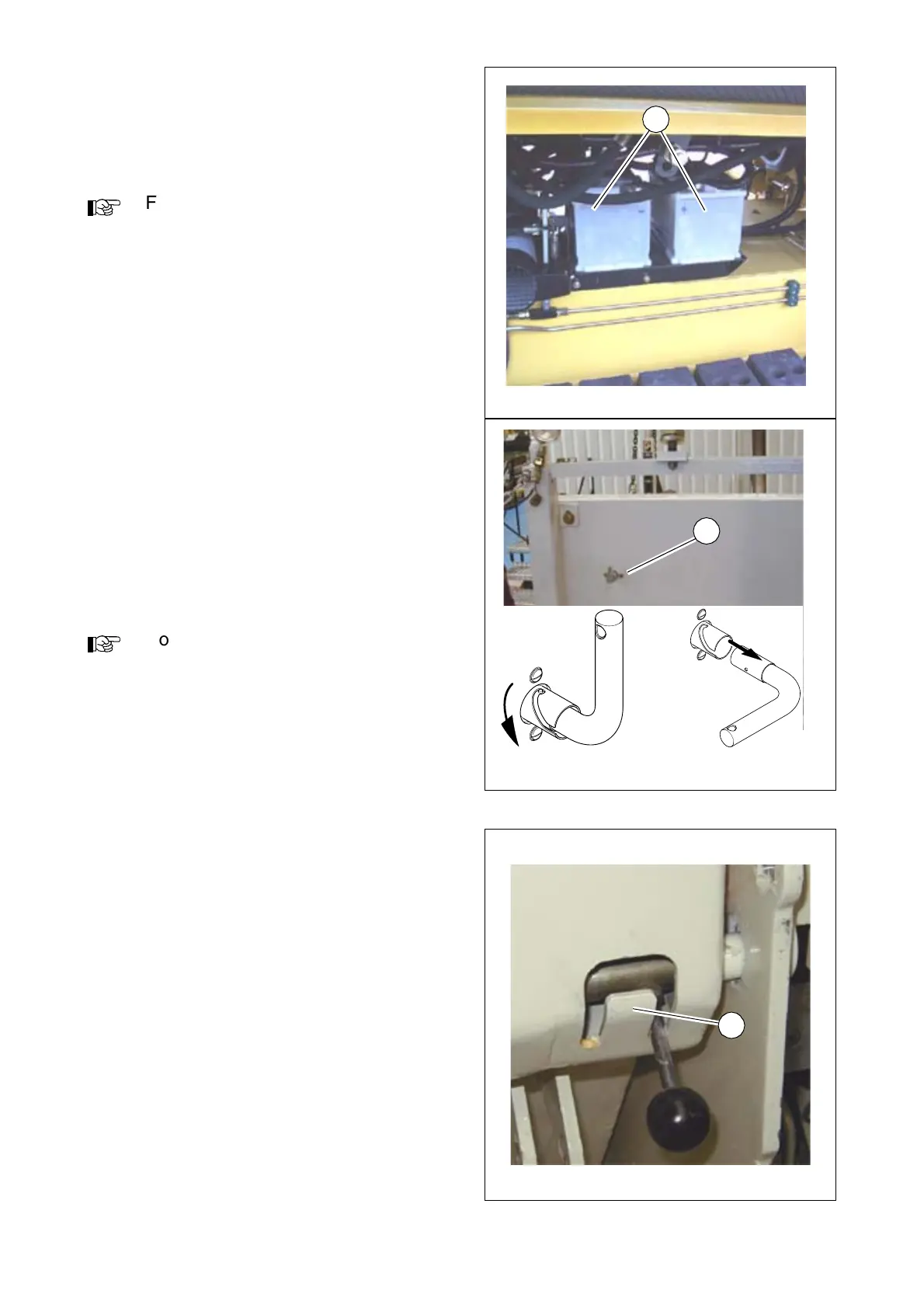

Batteries (68)
The batteries of the 24 V system are lo-
cated beneath the covering on the left-
hand side.
For the specifications, refer to chapter B,
„Technical Data“.
For servicing, see chapter F.
Battery main switch (69)
The main switch is located on the left of
the front control panel wall; it isolates the
power circuit between the battery and
the main fuse.
- In order to switch off, turn the key pin
(69) to the left and pull it out.
Do not lose the key pin as the paver fin-
isher can no longer be moved in this
case!
Transport safeguards for the hopper
(70)
Before transporting or parking the paver
finisher, the hopper halves must be
swung upwards and the transport safe-
guards for the hopper must be inserted.
Do not enter the hopper while the engine
is running! Danger of being caught by
the conveyor!
Without hopper transport safeguards in-
serted, the hoppers may slowly open un-
der certain circumstances; danger of
accidents during transportation!
68
69
70
