Dynapac F6C - B Vehicle Description; Application

126 pages

Save Page as PDF

To Next Page

To Previous Page

B 1

B_F6C_GB.fm 1-22 0504

B Vehicle description

1 Application

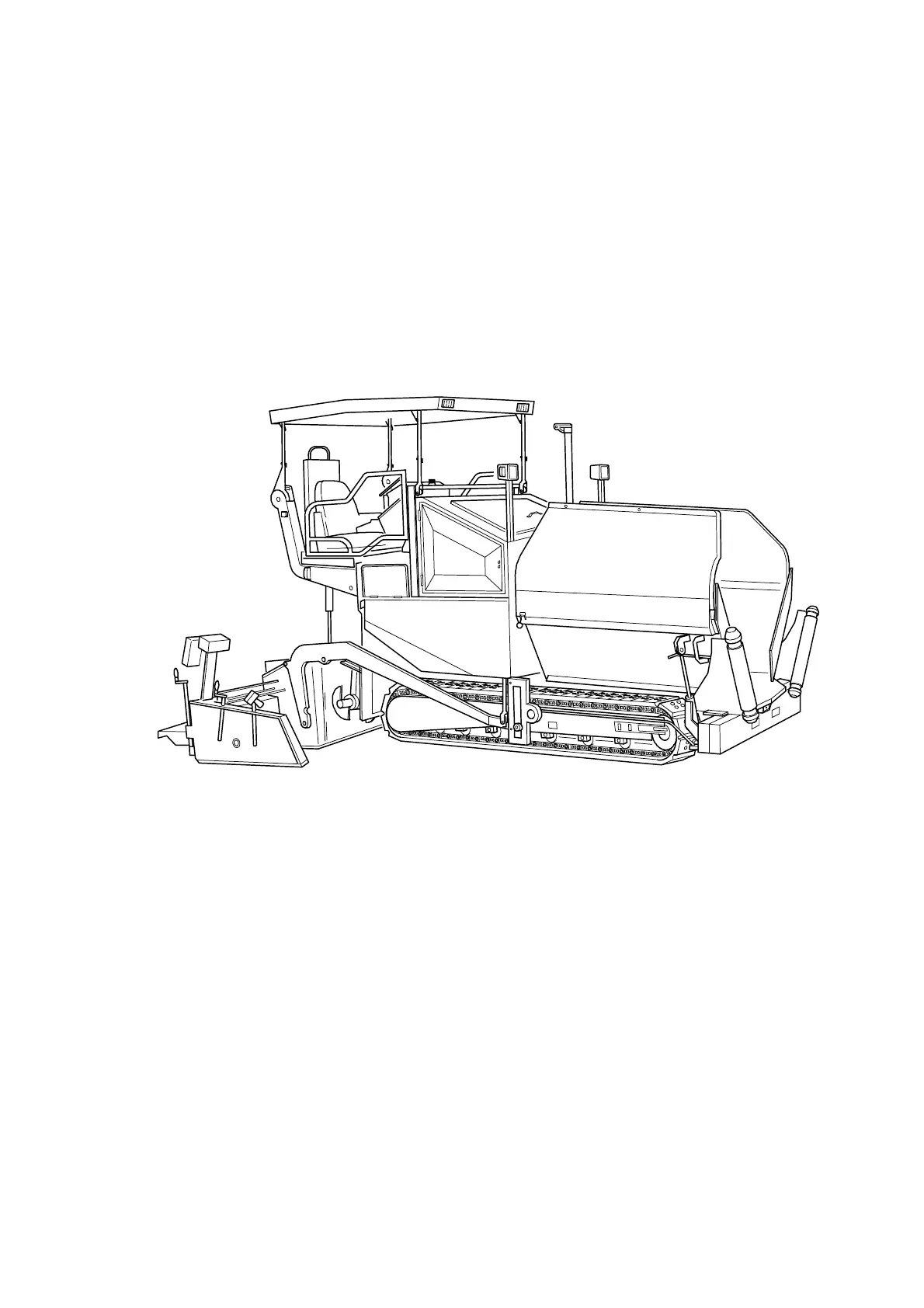

The DYNAPAC F 6 C is a caterpillar paver finisher that is used for laying bituminous

mixed material, roll-down or lean-mixed concrete, track-laying ballast and unbound

mineral aggregates for foundations for paving.
