D 20
D F6C.GB 20-50 0504

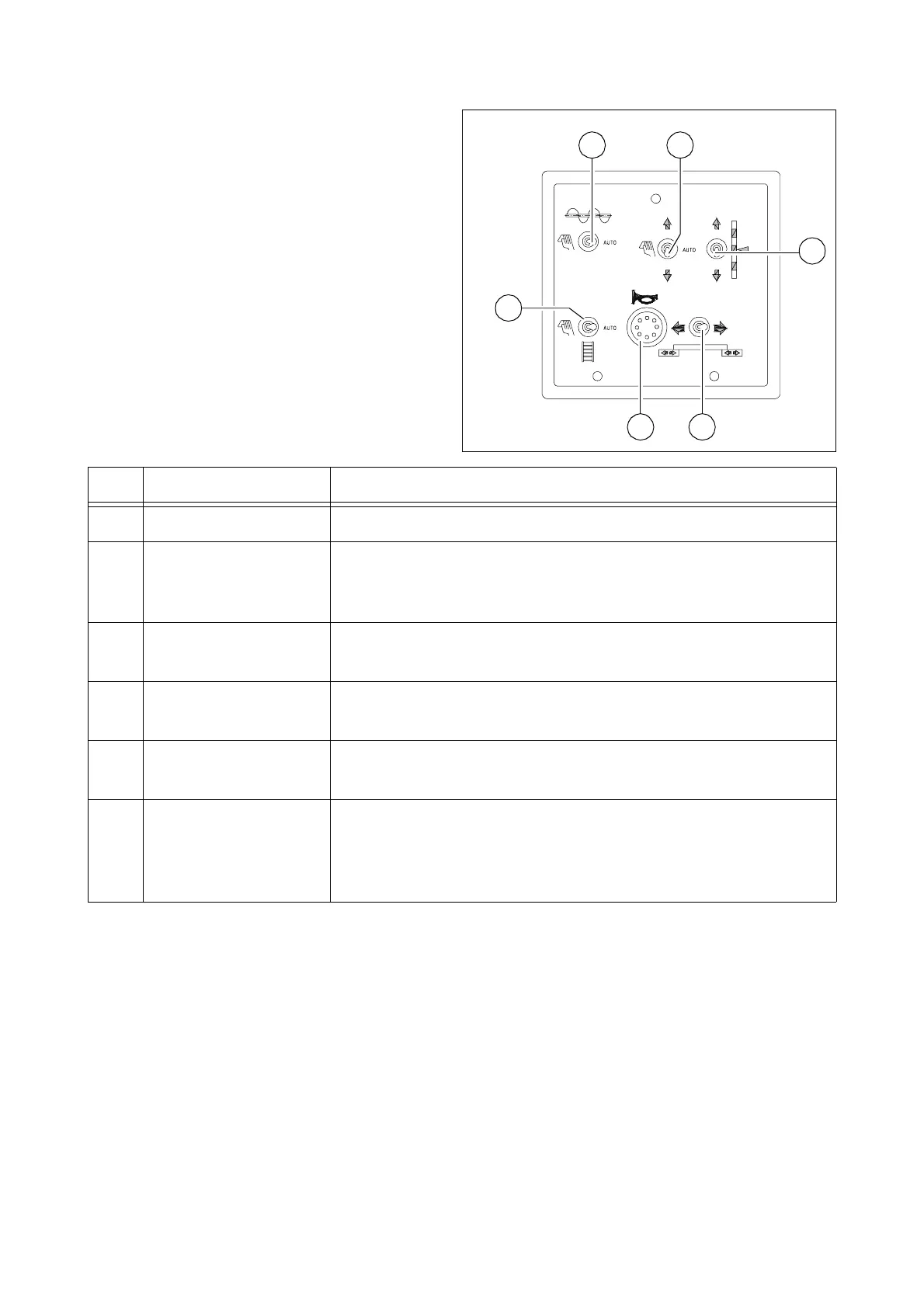

2.2 Remote control
Two remote control units – to the left
and to the right of the screed – allow
the functions of the respective side of
the paver finisher to be controlled.
Front
Item Designation Brief description
55 Horn Function as for push-button (13) on the operating panel.
56 Levelling cylinder
Function and application as for switch (27) on the operating
panel.
- Switch (60) must be set to „manual“.
57 Conveyor
Function and application as for switch (17) on the operating
panel.
58 Auger
Function and application as for switch (23) on the operating
panel.
59
Extend/retract
screed
Used to hydraulically extend or retract the extendable parts
of the variable screed.
60
Automatic levelling
system
manual: Height adjustment possible with switch (56) (or
switch (27) on the operating panel)
auto: Automatic height adjustment by means of the
grade control unit
Fernb_F6.cdr
58
55
56
59
60
57
