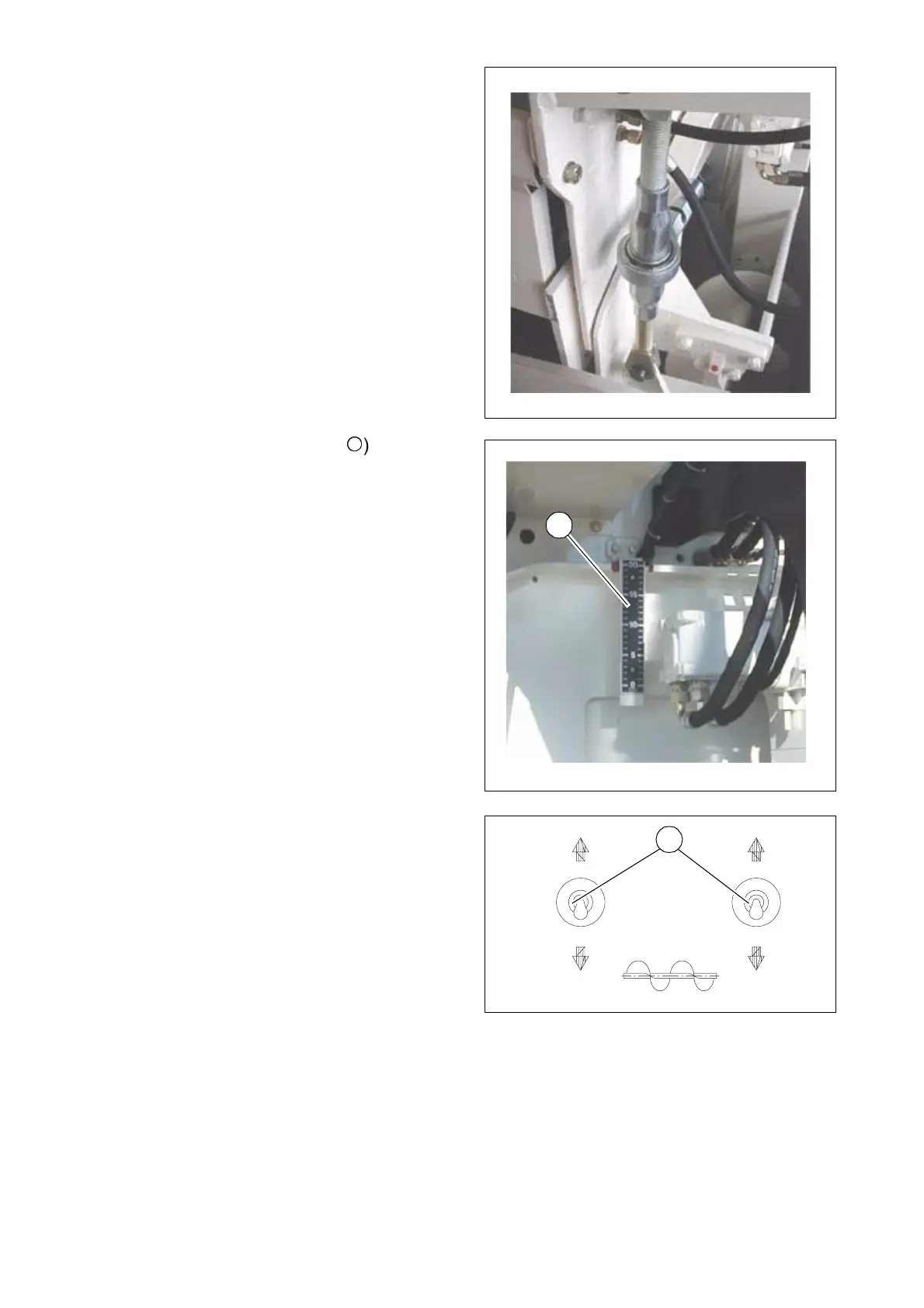

2.2 Mechanical adjustment with ratchet
- Set the ratchet direction lever to the
clockwise or anticlockwise direction.
Turning anticlockwise lowers the au-
ger, turning clockwise lifts the auger.
- Set the desired height by alternatingly
adjusting the right-hand and the left-
hand side.
- The current height can be read off
from the relevant scale (2) in cm.
2.3 Hydraulic adjustment ( & )
- Determine the currently set height of
the auger crossbeam (left and right)
by means of the scale (2).
- Push or pull the switches (3) on the
operating panel to retract or extend
the hydraulic cylinders.
$
Actuate both switches simultaneously to
avoid auger crossbeam warping.
- Check whether the heights on the left
and on the right are identical.
