3 Transportation on public roads
$
Reduce the paver finisher and the
screed to their basic widths; also remove
any attached side plates.

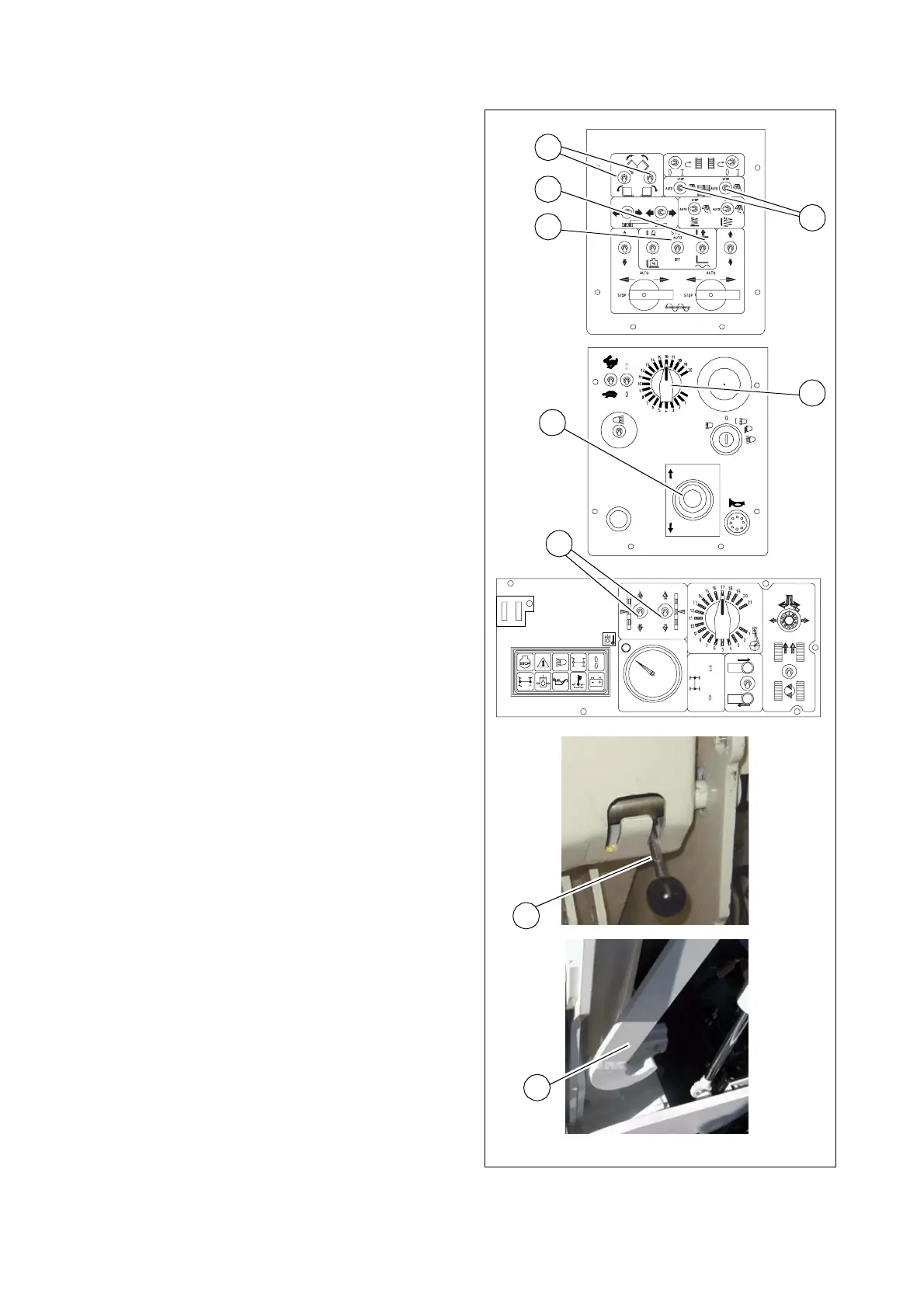

3.1 Preparations
- Set switch (1) to „Stop“ to switch off
the conveyor drive.
- Use switch (2) to close the hopper lids.
Engage both hopper transport safe-
guards (3).
- Set switch (4) to „OFF“ (automatic off)
and raise screed with switch (5). En-
gage the screed transport safeguards
(6).
- To extend the levelling cylinders:
- Turn the preselector (7) to zero.
Swivel the drive lever (8) forward.
- Push the switch (9) downward until
the levelling cylinders are complete-
ly extended.
- Set the drive lever (8) to the centre
position.
- Retract the screed parts until the
screed matches the basic width of the
paver finisher.
- Remove all protruding or loose parts
from the paver finisher and the screed
(see also the „operating instructions
for the screed“).
Stow the components safely, e.g.
place in hopper for transport.
- If an optional screed with a gas heater
system is fitted:
- Remove the gas bottle for the screed
heater system:
- Close the main shut-off valve and
the bottle valve.
- Unscrew the valve on the bottle, in-
stall the protective cap and remove
the gas bottle from the paver finish-
er.
- Transport the gas bottle on a sec-
ond vehicle, adhering to all safety
regulations.
