Dynapac F6C - Fuses on Operating Panel

F 30
F F6C.GB 30-30 0504

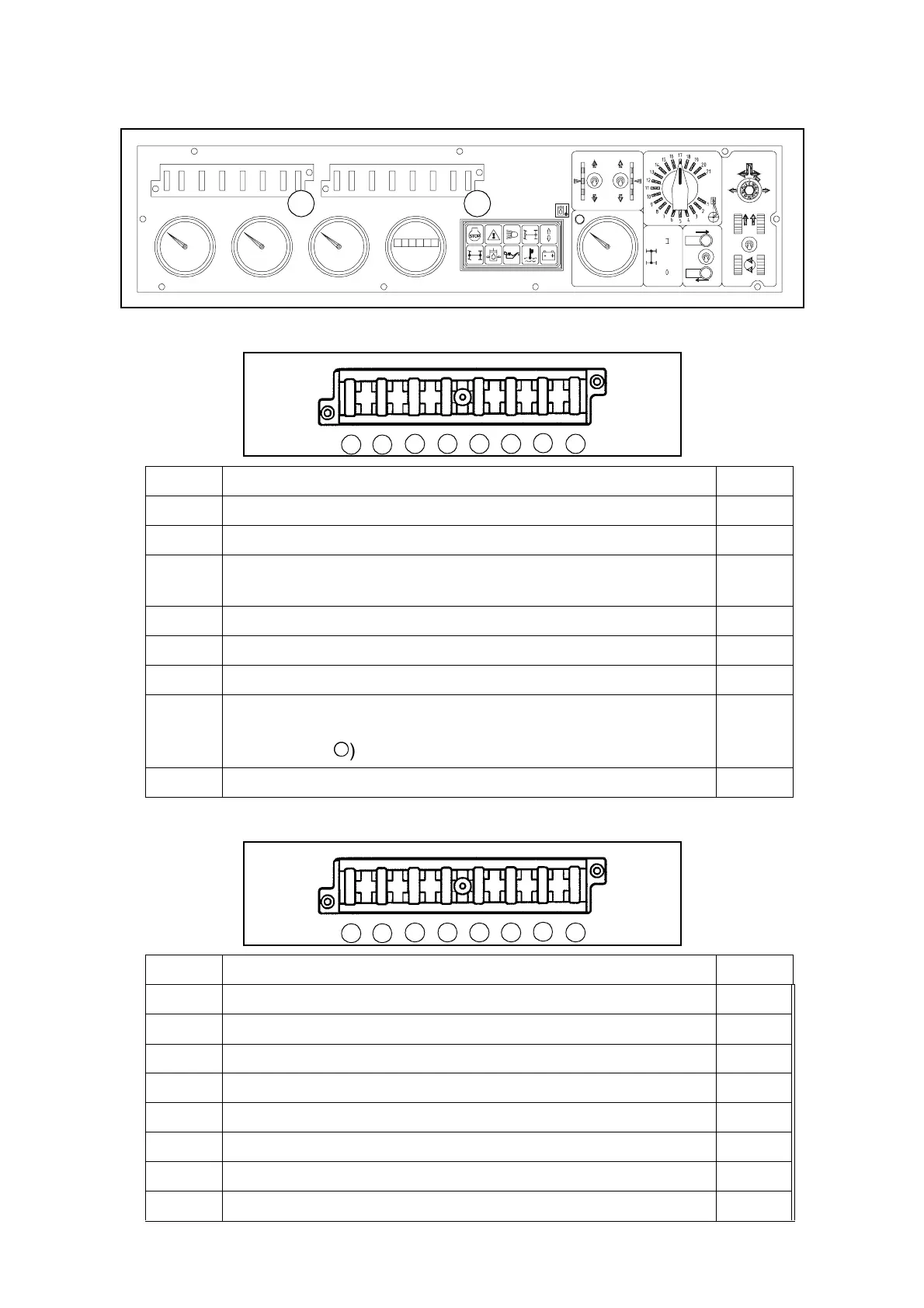

5.3 Fuses on operating panel
Fuse board (4)
Fuse board (5)
No. F1.1 - F1.8 A
1. Activation lock, emergency stop button, 5
2. Indicator lamps; torn V-belt; indicators 3
3.
Levelling system (slope/grade control), raise and lower
screed
5
4. Right conveyor / auger 7.5
5. Left conveyor / auger 7.5
6. Tamper / vibration 3
7.
Hopper hydraulics, screed hazard warning system, level-
ling system remote control, auger crossbeam height
adjustment ( & ), extend / retract screed
7.5
8. Diesel engine stop solenoid 7.5
No. F2.1 - F2.8 A
1. free 5
2. Horn 5
3. Option 5
4. free 7.5
5. Front working lights 5
6. Instrument illumination, front working lights 5
7. free 5
8. free 5
4 5
Element3_F6C.cdr
1 2
3 4 5 6
7
8
Fuse1.Tif
1 2
3 4 5 6
7
8
Fuse1.Tif
