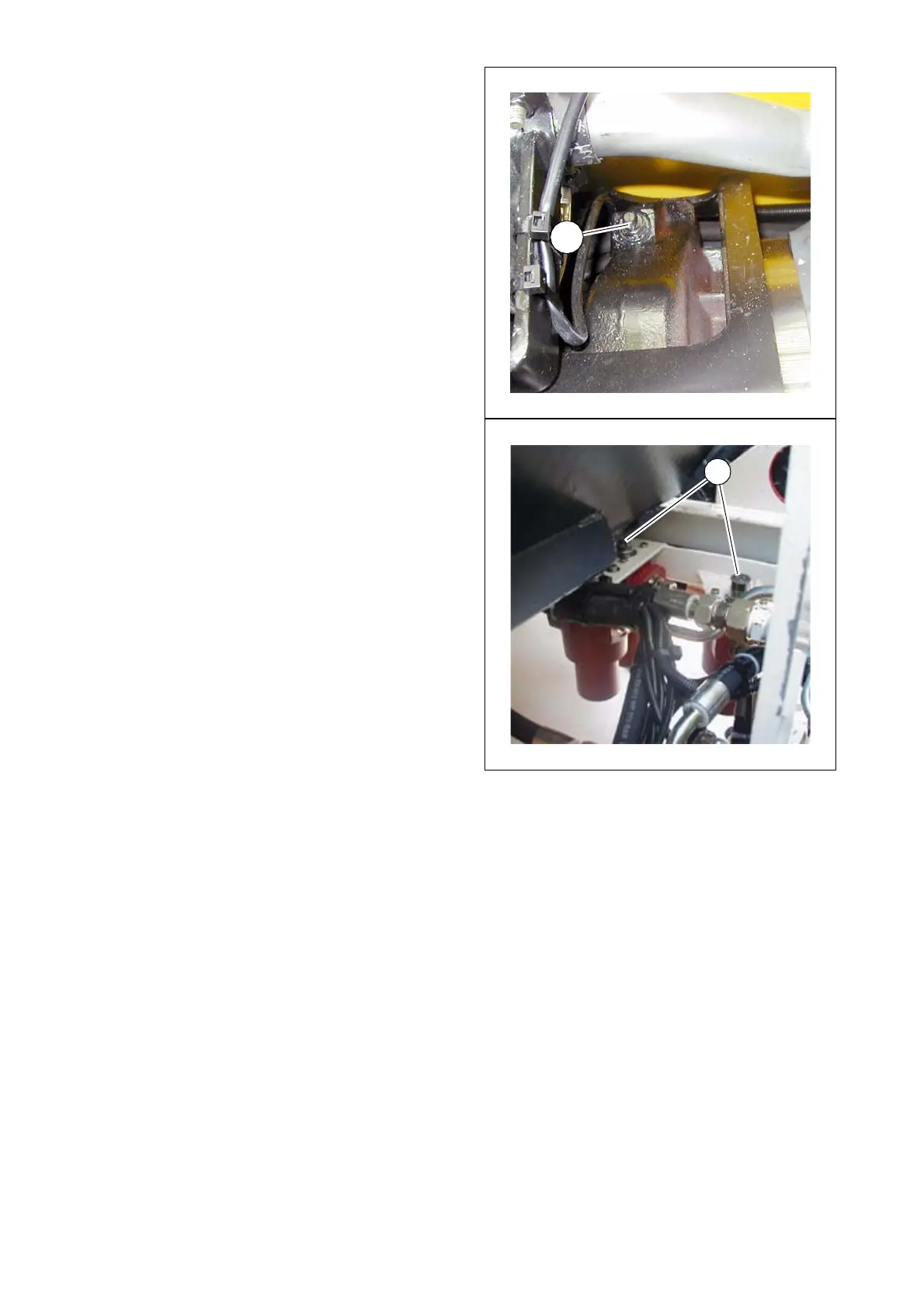

Pump distributor gear (5)
The screw plug (5.1) is simultaneously
the filler aperture and oil level check.
- Unscrew the screw plug (5.1) and
check the oil level with the dipstick
connected to this.
- Top oil up if necessary, screw the
screw plug in again properly.
Ensure cleanliness!
High-pressure hydraulic filter (6)
$
All hydraulic system filters must be
checked and replaced where necessary
20 operating hours after repairs have
been made!
Replace filter cartridges when mainte-
nance indicator (6.1) turns red.
Drain the soiled oil that leaks out after
unscrewing the filter cap into a used oil
container.
Take out the filter cartridge and have it
disposed of by specialists (danger of en-
vironmental pollution!). Wash out the
housing, replace the O-rings and apply a
thin layer of oil to them. Mount the filter housing with the filter cartridge again and
tighten it properly. The red indicator will then be automatically reset.
5.1
Hochdruck_F6.jp
6.1
