3.2 Oil drain points
Collect all used oil and have it disposed of properly! Risk of environmental pollution!
For the filling volumes, see „Filling volumes“.

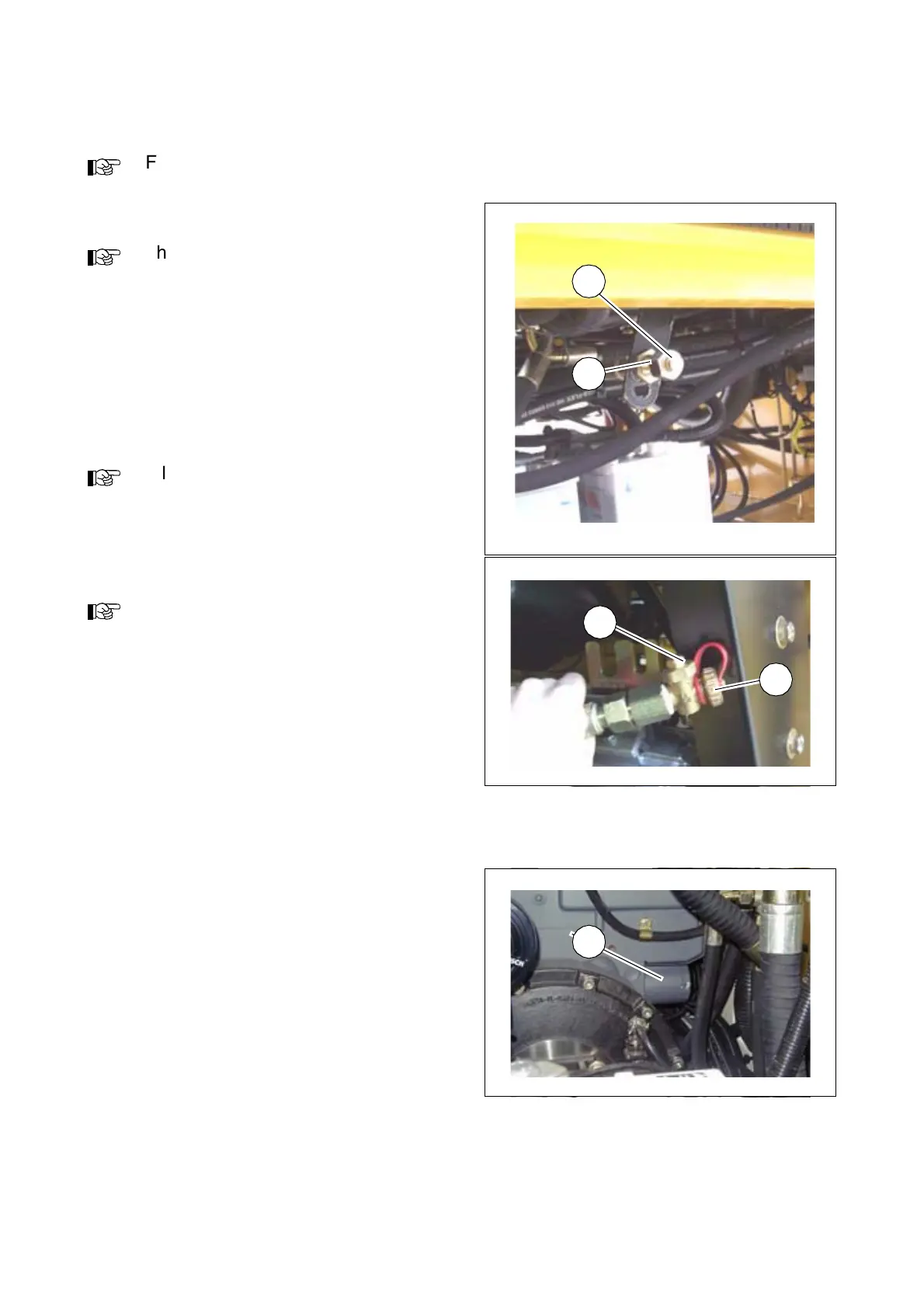

Pump distribution gear (5)
The drainage point for the pump distrib-
utor gear is located behind the left side
flap.
Drain the oil:
- Hold the end of the hose (5.1) above a
used oil container.
- Unscrew the protective cap (5.2).
Allow the oil to drain completely and re-
install the protective cap properly.
Diesel engine (17)
The drainage point for the engine oil is
located behind the right side flap.
Drain the engine oil:
- Unscrew the protective cap (17.1).
- Route the hose end into a used oil
container.
- Open the shut-off valve (17.2) with a
wrench and allow the oil to drain completely.
Replacing the engine oil filter:
- The filter (17.3) is located directly on
the engine block on the left-hand side.
It can be accessed by opening the en-
gine hood.
5.1
5.2
17.1
17.2
17.3
