2017.06.19
FwdMan2.8.17.docx
14-119

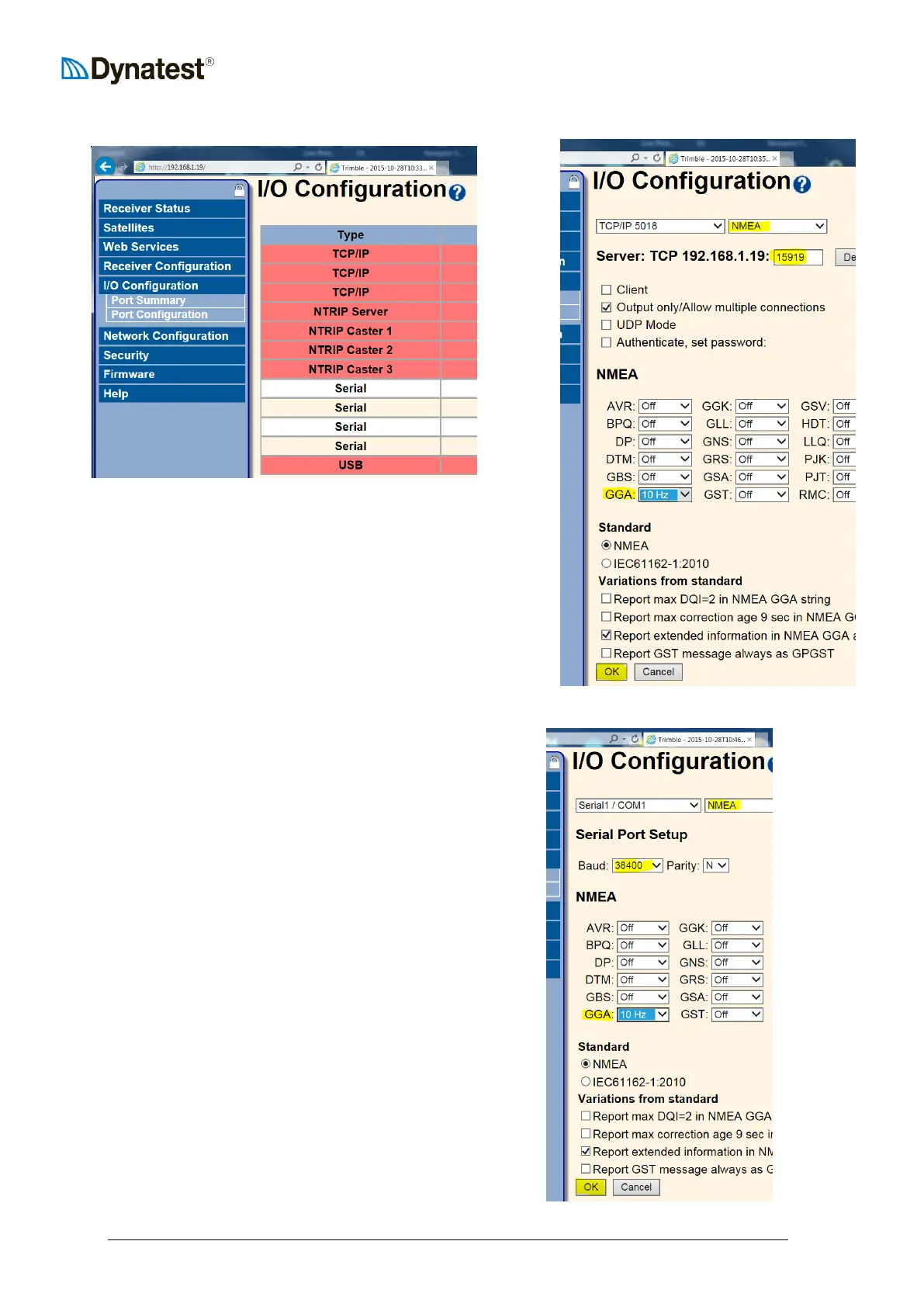

In I/O Configuration click one of the TCP/I
Ps
Chose:
NMEA,
Listen port:
15919, GGA
at
10 Hz
Press OK
Chose Serial COM1 and setup for
NMEA, 38400 Baud, GGA at 10Hz
And Press OK
Close the browser
