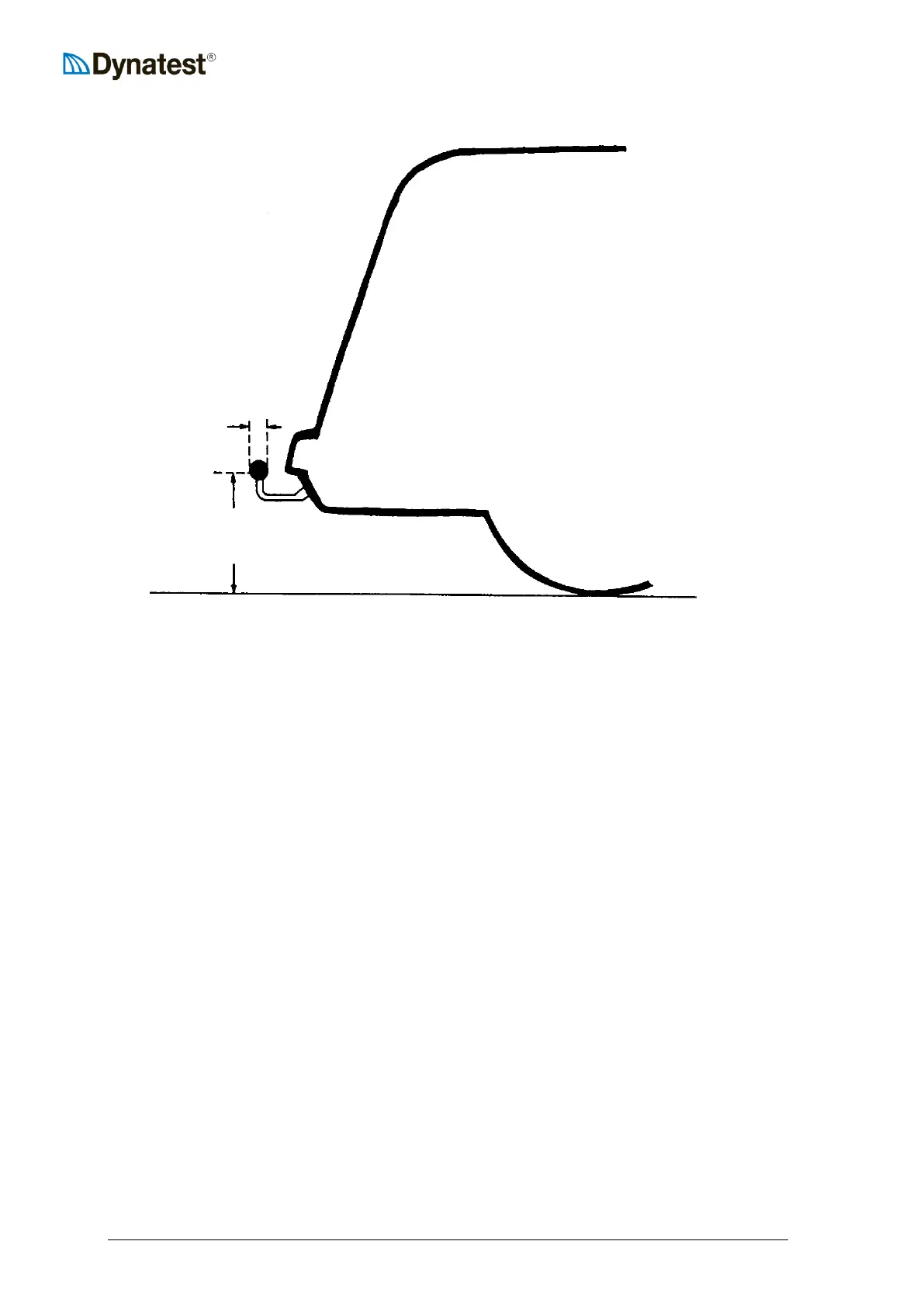

BALL DIAMETER “D”: 50 MM OR 2 INCHES (OPTIONAL)
BALL HEIGHT “H”: 480 to 500 mm (19 to 20 inches) WITH 100 KG LOAD
(TYPICALLY 530 TO 550 mm (21 TO 22 inches) UNLOADED)
2.2.2 Trailer Tail Lights Wiring
The FWD/HWD trailer is equipped with two tail light assemblies. They provide:
two bright, amber indicator lights (12V, 21W bulb)
two combined, red running/stop light (running: dim, stop: bright) (dual filament bulb 12V
5+20W)
one bright, red fog light
one backup light
The trailer lights are connected to the car by means of a cable typically equipped with a 13-
pin plug (European Standard, other plugs/connections are optional).
The towing vehicle should be equipped with a corresponding SOCKET (provided).
The trailer lights wiring diagram for a specific trailer can be obtained from Dynatest on
request.
