15. The Compact15 System Controller

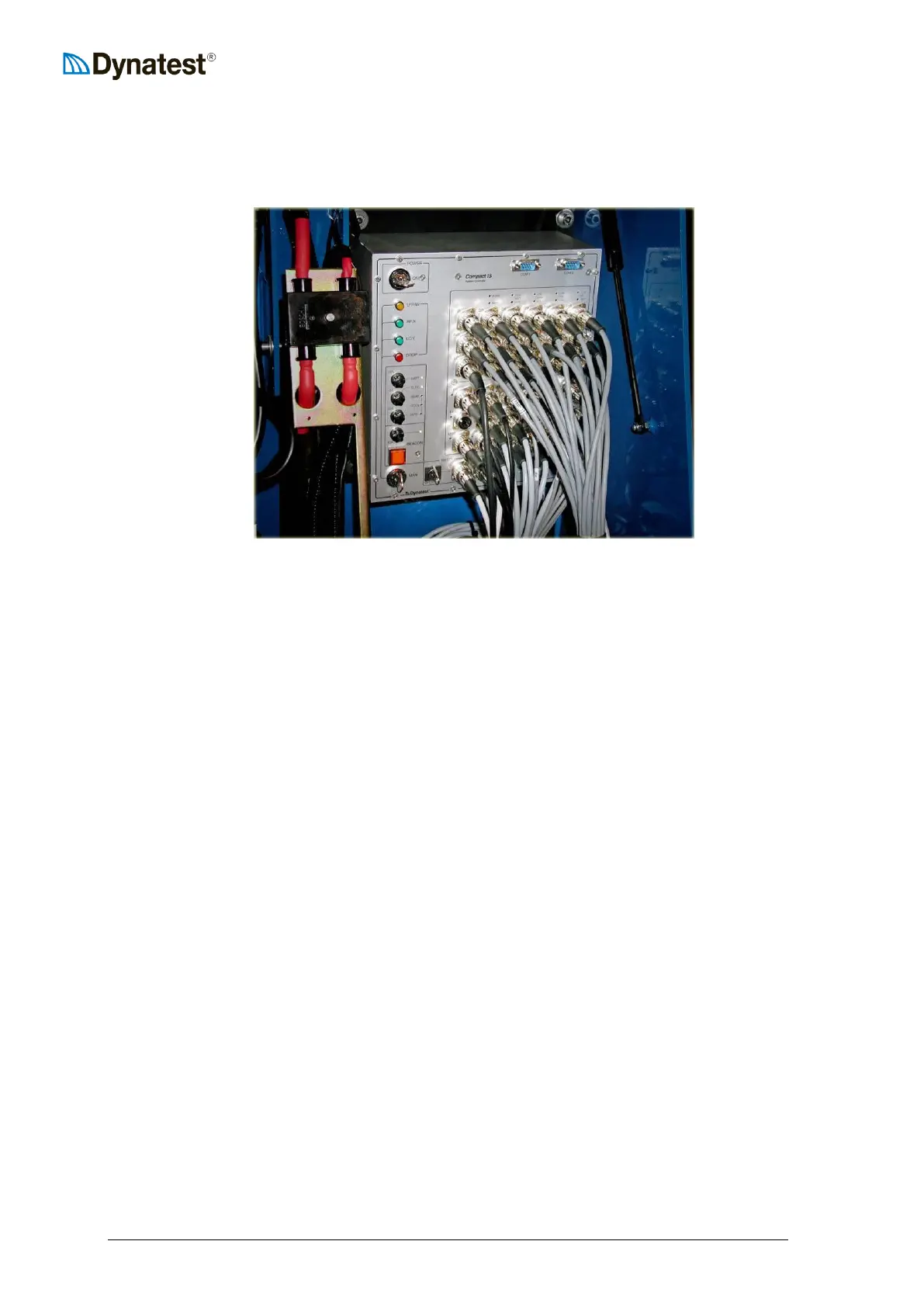

The Compact15 (CP15) System Controller.
15.1 Key Features
Light and compact design
Based on Embedded PC technology
Performs control of the FWD/HWD system operation
Performs scanning and conditioning of up to sixteen transducer signals (from one load
cell + fifteen deflection transducers max).
Scans and stores the time history of the transducer signals and calculates peak values.
Self-test.
Ethernet interface for connection to host computer
COM1 port for diagnostics and GPS.
COM2 port not assigned.
12VDC powered, current drain approx. 4 Amps.
15.2 General Description
The Dynatest Compact15 System Controller is a compact, PC based electronic unit, interfaced
with the electrical components of the FWD/HWD unit as well as with the Computer.
The main functions of the System Controller are:
controls the FWD/HWD system hydraulics.
conditioning, scanning, digitizing and transmission to the computer of the signals from up
to sixteen transducers, i.e. one load cell and fifteen deflection transducers (Deflectors).
a continuous testing of system performance to reveal functional or operational errors.
