SmartWire-DT External Communication Cards
POWERXL SERIES VFD MN040010EN—June 2018 www.eaton.com
Installation
Mounting
Mounting of SmartWire-DT
“DXG-NET-SWD-IP20” module
DXG-NET-SWD-IP20 modules can be installed in PowerXL
DG1 VFD with an IP20 degree of protection.

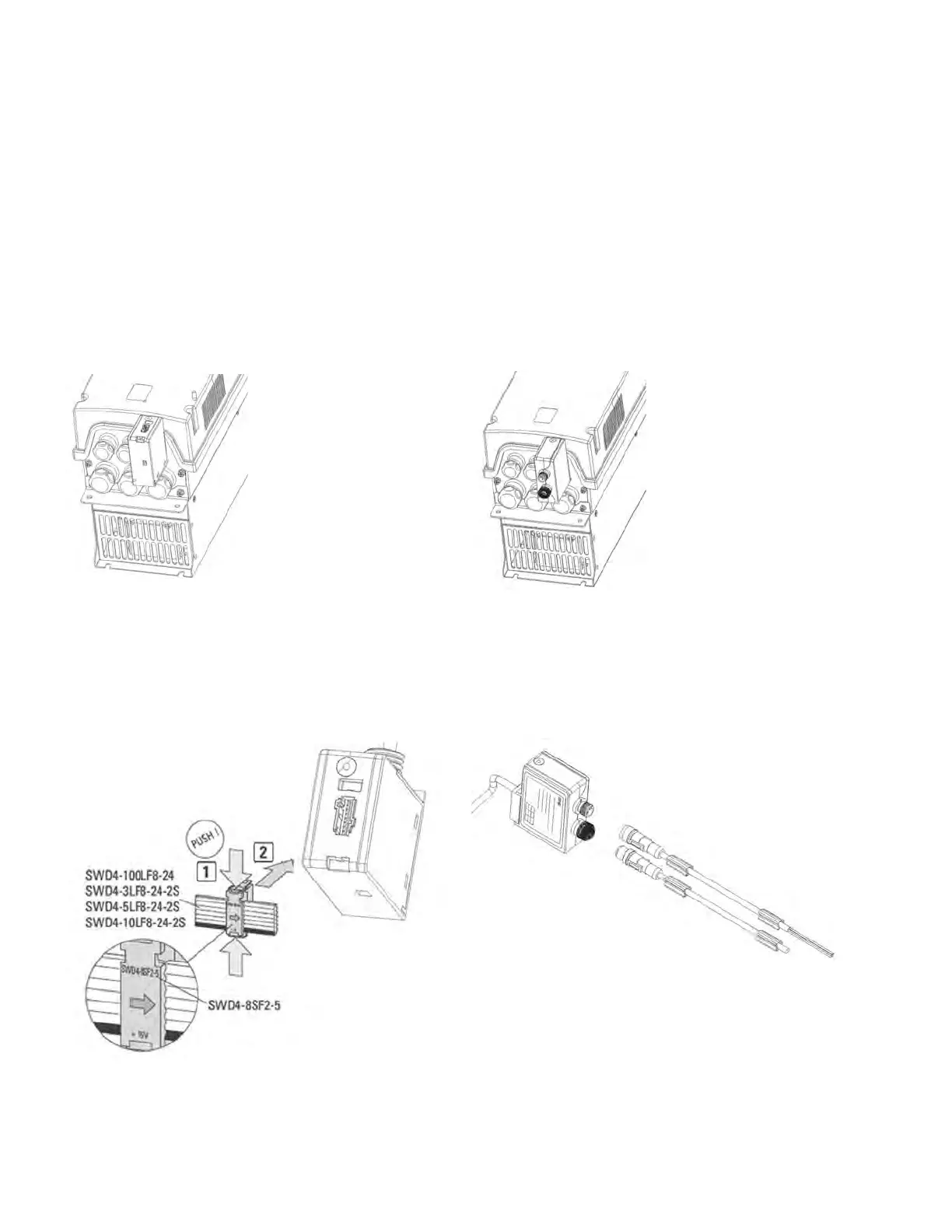

Figure 61. Mounting of SmartWire-DT
“DXG-NET-SWD-IP20” module on PowerXL DG1 Drive
Connection of SmartWire-DT flat cable
Connect the SWD external device plug SWD4-8SF2-5 with
the adapted SmartWire-DT ribbon cable
Figure 62. Connection of flat cable with
SmartWire-DT “DXG-NET-SWD-IP20” module
Mounting of SmartWire-DT
“DXG-NET-SWD-IP54” module
DXG-NET-SWD-IP54 modules can be installed in PowerXL
DG1 variable frequency drive with an IP54 degree of
protection.
Figure 63. Mounting of SmartWire-DT
“DXG-NET-SWD-IP54” module on PowerXL DG1 Drive
Connection of SmartWire-DT round cable
Connect the SWD external device plug SWD4-8SF2-5 with
the adapted SmartWire-DT ribbon cable
Figure 64. Connection of round cable with
SmartWire-DT “DXG-NET-SWD-IP54” module
