Rating label

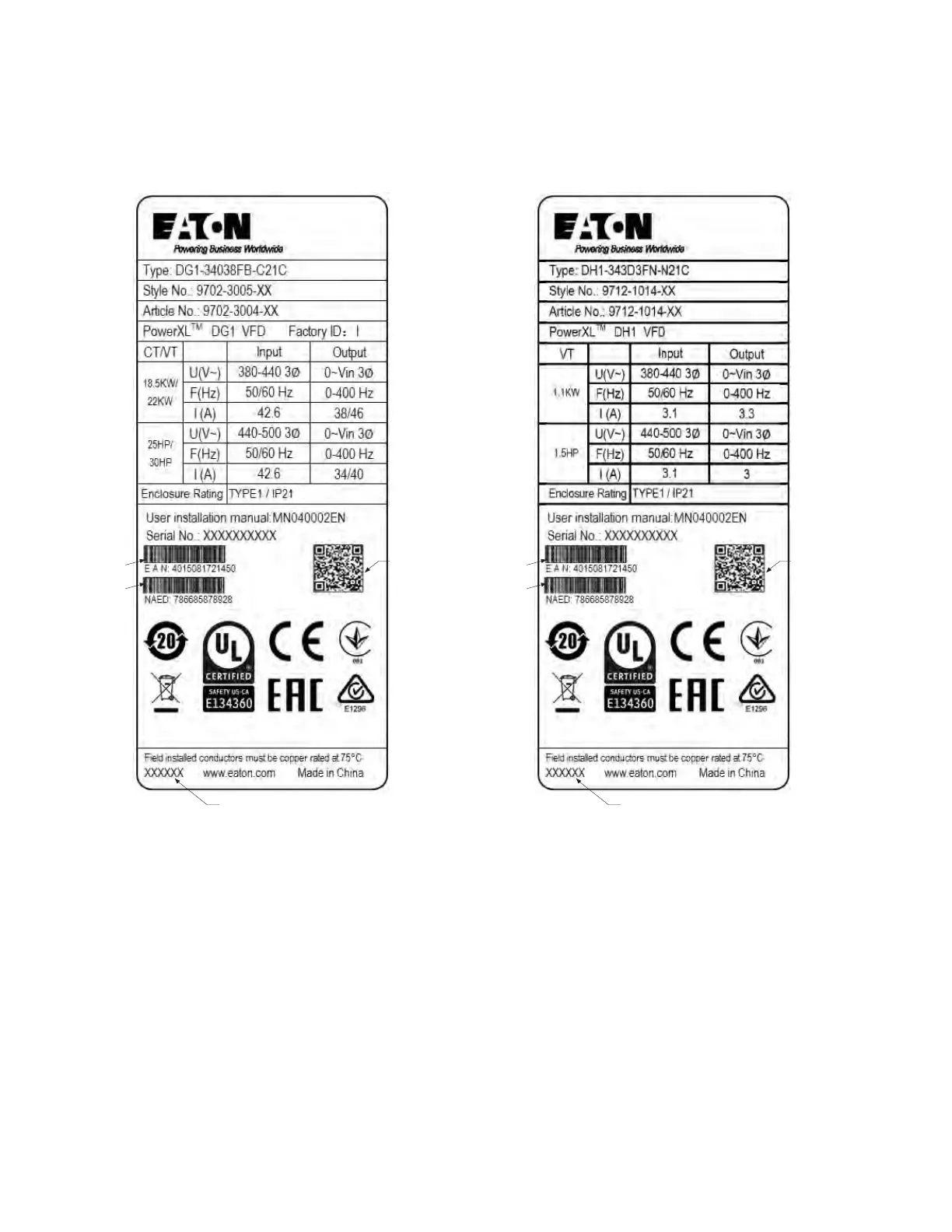

Figure 2. Rating label (DG1)
Contains
SN, PN,
Type, Date
Contains
EAN Code
Date Code: 20131118
Contains
NAED Code
General information
The PowerXL Series drives provide a wide selection of
option boards to increase the number and type of control
inputs and outputs (I/O) and communication interfaces to
provide the versatility required for today’s demanding motor
control applications.
Figure 3. Rating label (DH1)
Contains
SN, PN,
Type, Date
Contains
EAN Code
Date Code: 20131118
Contains
NAED Code
The input and output capability is designed with modularity
in mind, comprised of option boards, each having its own
input and output configuration. The control unit is designed
to accept a total of two boards, the boards provide standard
analog and digital inputs and outputs, fieldbus capability, and
application specific hardware.
The basic, expander and adapter boards are installed in board
slots, which are parts of the control board. The I/O boards
are interchangeable between different members of the
PowerXL Series drives.
