BACnet/IP On-Board Communication— PowerXL DH1
BACnet stands for Building Automation and Control
Networks. It is the common name for the communication
standard ISO 16484-5 that defines the methods and the
protocol for cooperating building automation devices to
communicate. Devices can be designed to operate using
BACnet communication protocol as well as utilizing BACnet
protocol to communicate between systems. BACnet is an
internationally accepted protocol for building automation
(such as lightning control, air conditioning, and heating
automation) and control over a communications network.
BACnet provides a method by which computer-based control
equipment, from different manufacturers can work together,
or “interoperate.” For this to be achieved, components must
be able to exchange and understand BACnet data messages.
Your drive is equipped with BACnet support as standard
BACnet/IP specifications
Table 196. BACnet/IP Protocol
Connection Communication
Interface 100BaseTX, IEEE 802.3 compatible
Data transfer method Ethernet half-/full-duplex
Data transfer speed 10/100 MBit/s, autosensing
Protocol BACnet over UDP/IP
Connector Shielded RJ45 connector
Cable type CAT5e STP
BACnet/IP As described in ANSI/ASHRAE Standards 135-2004
Default/IP Selectable: Fixed or DHCP
BACnet/IP connections
The control board is located inside the control unit of the drive.

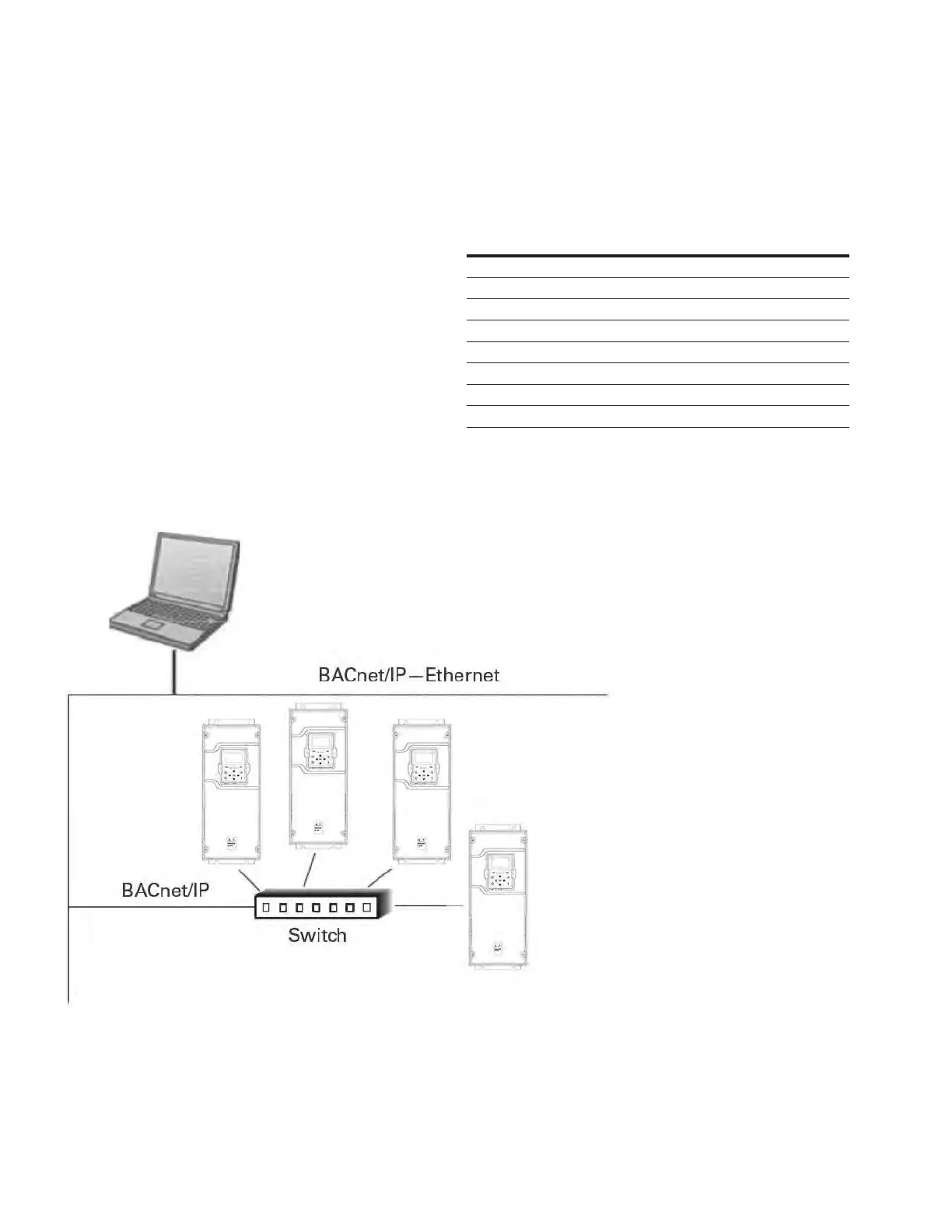

Figure 69. Principle example diagram of BACnet
