120
CANopen External Communication Cards
POWERXL SERIES VFD MN040010EN—June 2018 www.eaton.com
Bypass profile

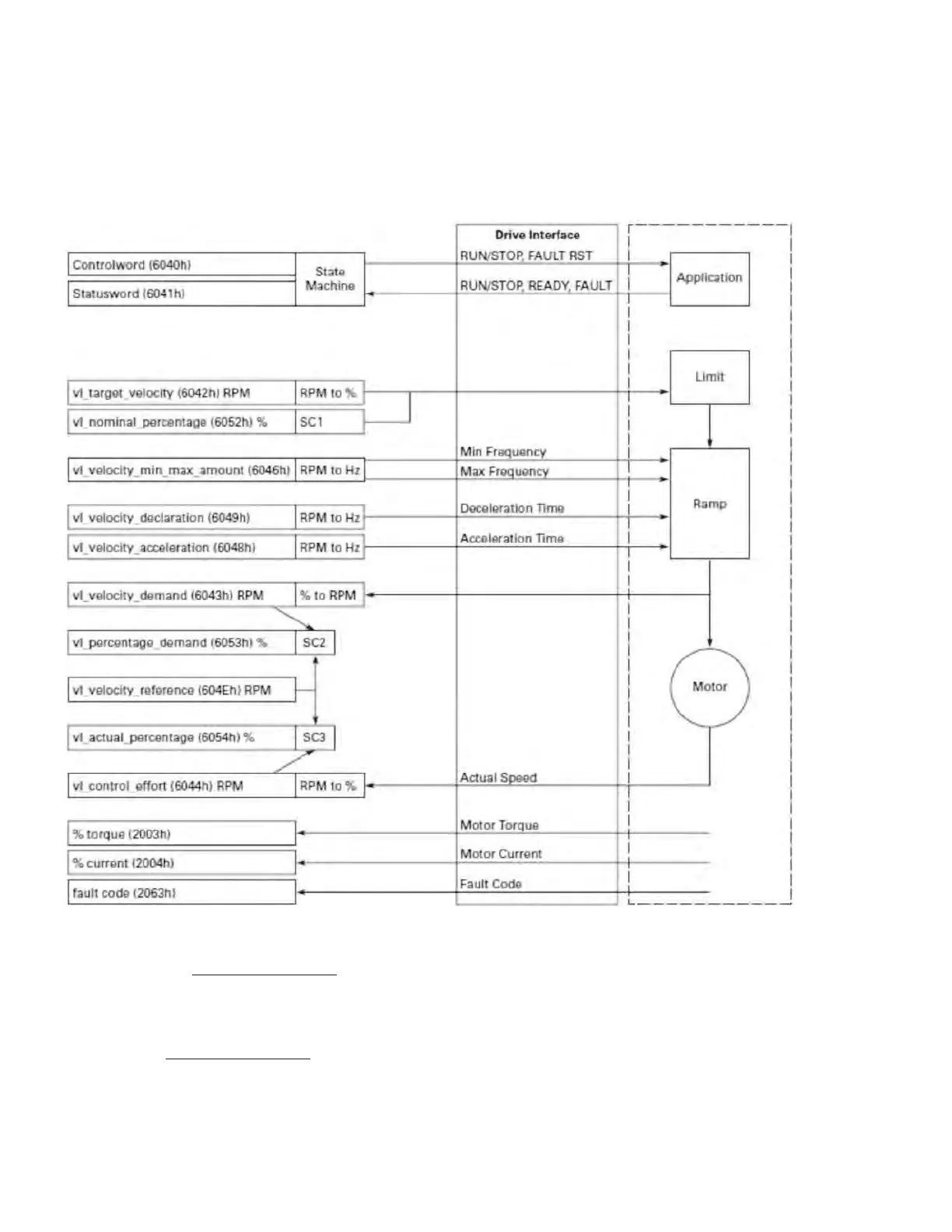

Figure 49. Device profile
SC2: Percentage Function 2
vl_percentage_demand =
vl_velocity_demand * 0x3FFF
vl_velocity_reference
SC3: Percentage Function 3
vl_actual_percent =
vl_control_effort * 0x3FFF
vl_velocity_reference
