3 Delivery
Prior to delivery, notification will be provided of the scope of the
equipment.
The notification of the scope of the equipment contains details on :
– The delivery date
– The number
, type and weights of the handling units
The DryExx®-Advanced-ETH is carefully checked and packaged prior to
shipment.
However, damage during transport cannot be ruled out.
Ecolab assumes no responsibility for shipping damage, see also chapter
Ä
1.4 Transportation .

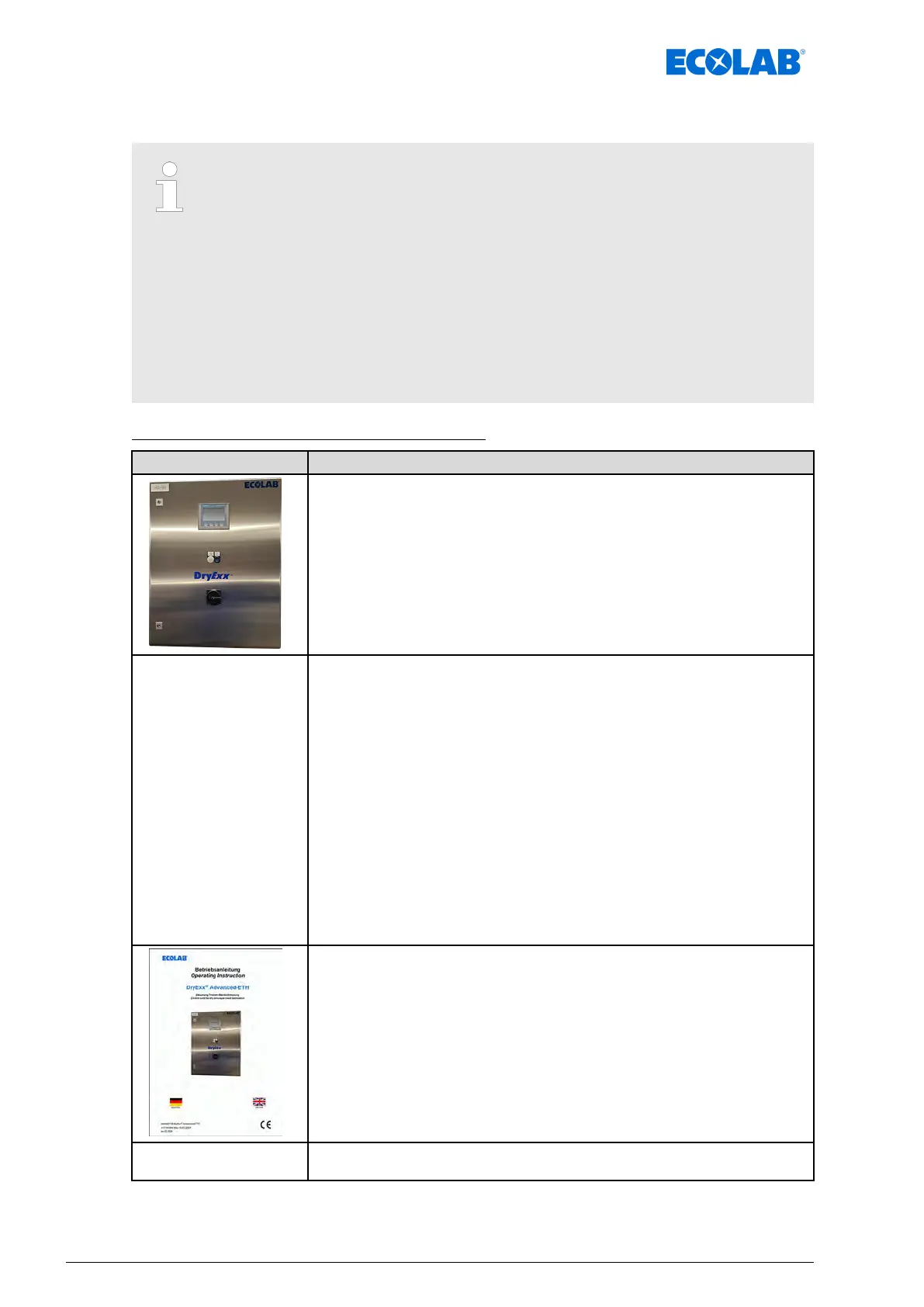

The delivery contents should be as follows:
View Description
DryExx
®
Advanced-ETH control unit
Part no. 182837, EBS no. on request
No diagram
Attachment set
for wall mounting, for frame mounting or for welding onto
machines, comprising:
n 4 x spacer rollers, D15 x 7, 8.5 mm diameter, PVC
Part no. 38631302, EBS no. 38631302
n 4 x wall fixing plugs, S10, ID 6-8 mm, AD 10 mm, L 50 mm
Part no. 417200005, EBS no. on request
n 4 x wood screws, 8 x 60 mm, DIN 571, V2A
Part no. 413110926, EBS no. 10009674
n 4 x washers, 8.4 x 16 x 1.6, DIN 125, V2A
Part no. 413500313, EBS no. 10009655
n 4 x threaded welding studs, M 8 x 16
Part no. 413134028, EBS no. upon request
n 4 x hex nut, M8, DIN 934, V2A
Part no. 413200009, EBS no. 10003123
n 4 x serrated lock washer, 8.4 x 15 x 0.8, DIN 6797, V2A
Part no. 413300256, EBS no. on request
Part no. 282837, EBS no. on request
DryExx
®
Advanced-ETH Operating Instructions
Part no. 417102251, EBS no. on request
No diagram
DryExx
®
Advanced-ETH circuit diagram
Part no. 38283701, EBS no. on request
