Control cabinet - connections and internal parts
A B
1
2
3
4
5
6
7 8
9
9
10
11
11
12
13
14
15
16

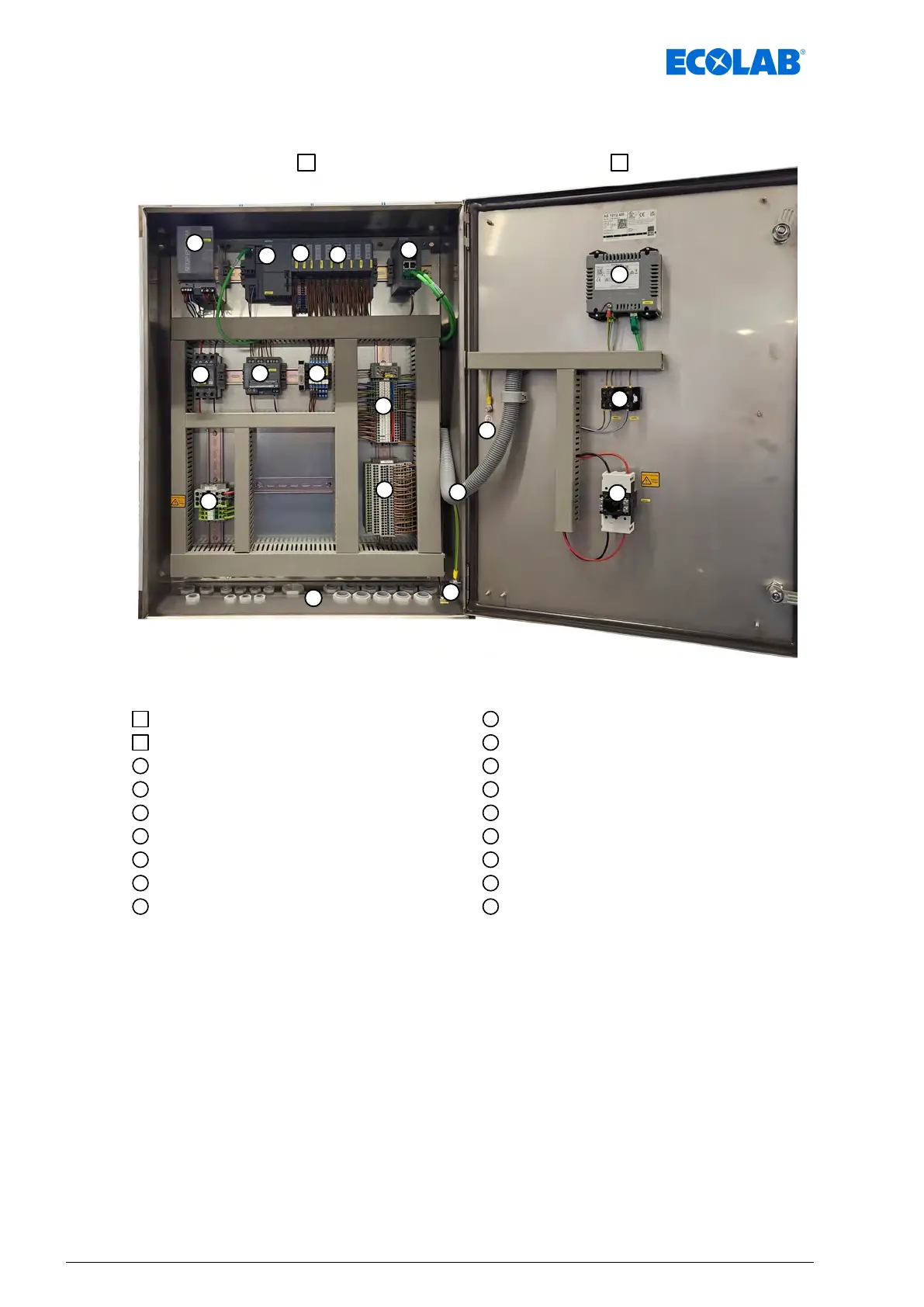

Fig. 4: Control cabinet - connections and internal parts
A
Control cabinet
B
Control cabinet door
1
SITOP PSU200M power unit
2
Simatic ET200SP CPU
3
Input module
4
Output module
5
Ethernet switch
6
Circuit breaker
7
Selectivity module
8
Output signal relay
9
+24 V and GND connector
10
Supply terminals
11
Earth
12
Control unit operating panel
13
Operating lights and fault signal buttons
14
Main switch
15
Cable duct for installations in the door
16
Cable ducts
Structure
