7.1
1
Operating data
Here all operating data since commissioning or since the last reset of the metering pump
can be retrieved. All operating data is stored for a maximum of 1 year
.

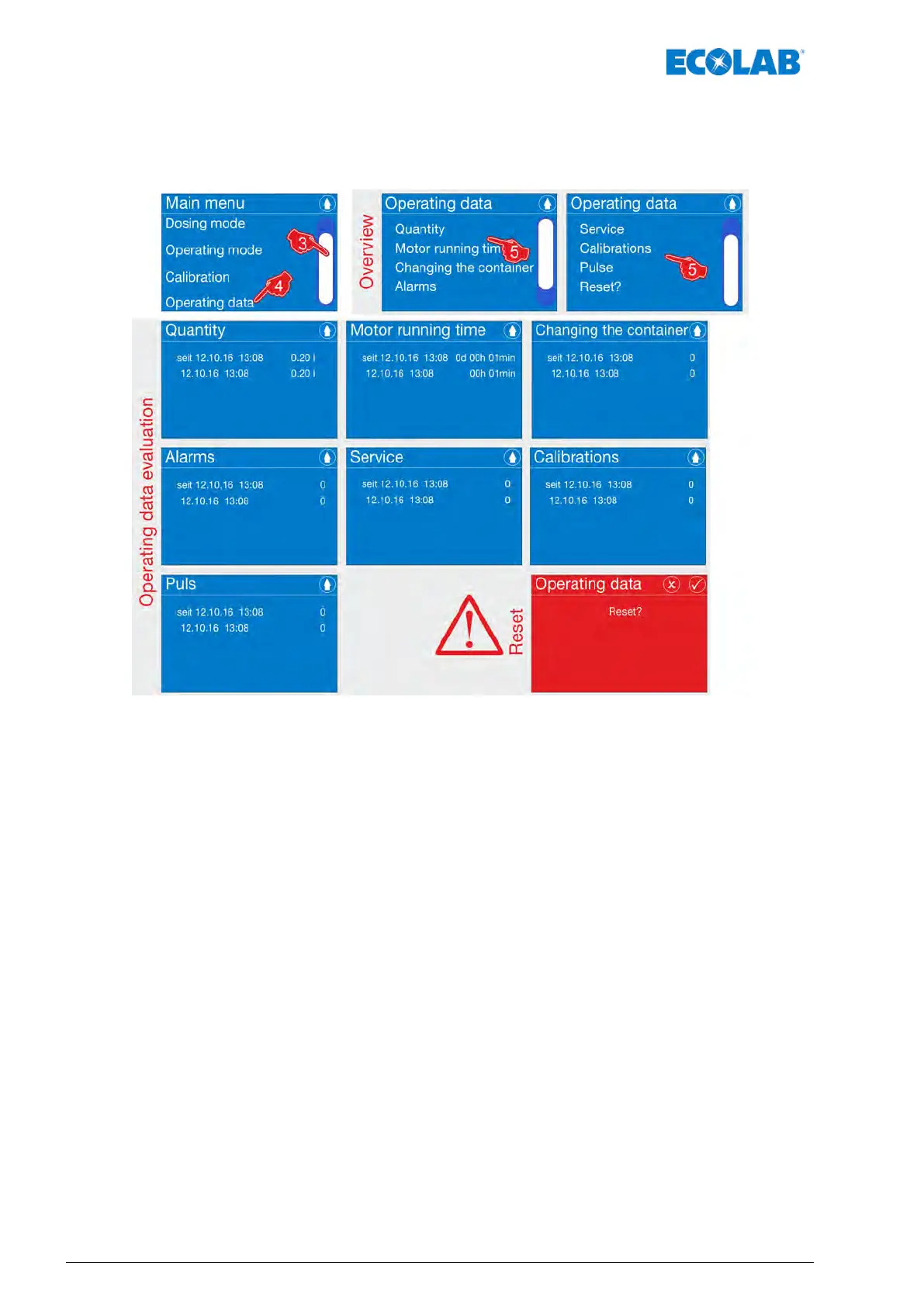

Fig. 77: Operating data
