6.2.3 Conversion - change from stand mounting to wall mounting
To allow the pump to be adjusted to the site conditions, you can use the pump
in either stand-mounted or wall-mounted form.

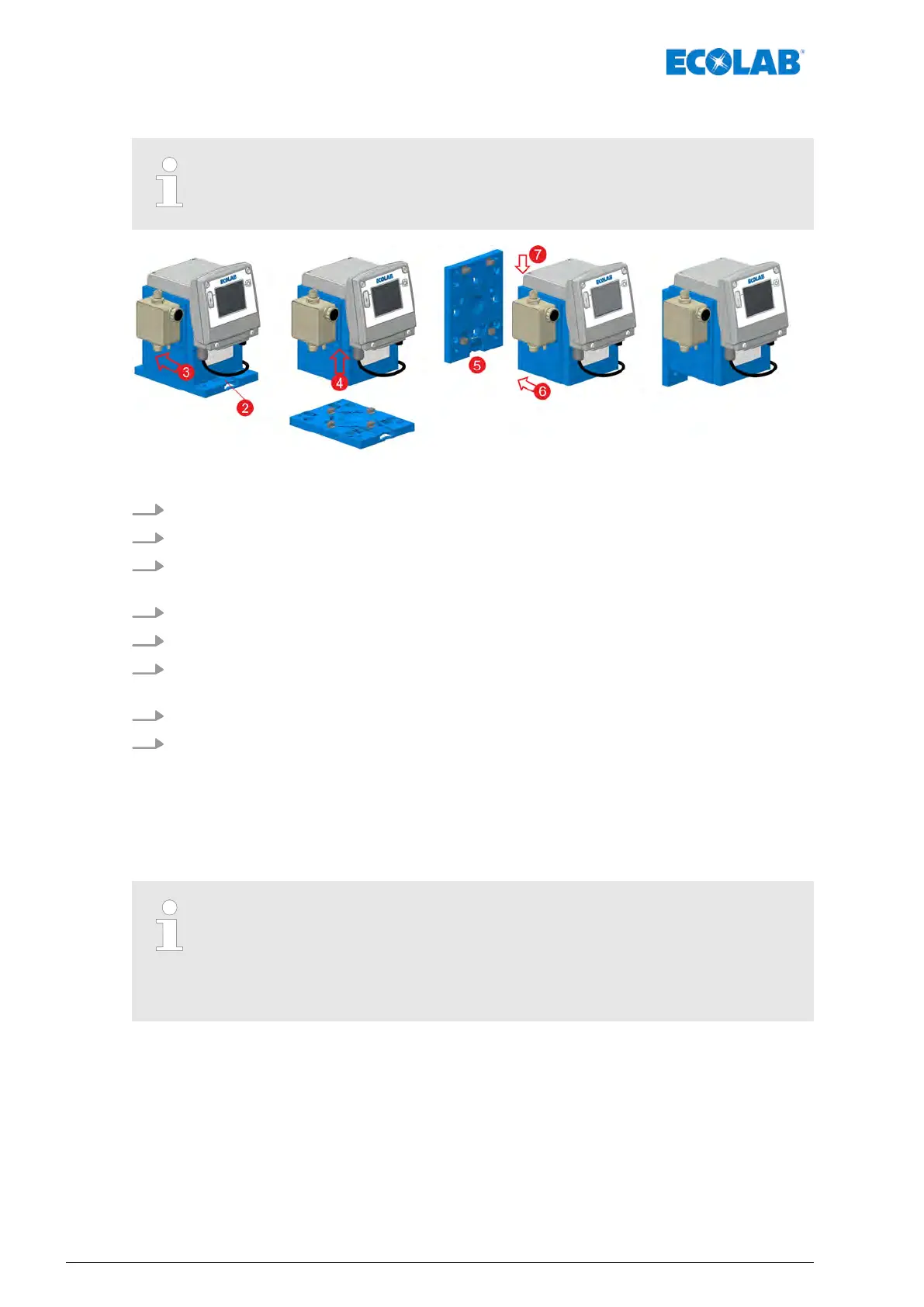

Fig. 11: Change from stand mounting (upright, e.g. floor, bracket or canister) to wall mounting (hanging).
1. Remove the connector lines as far as necessary (hydraulically and electrically).
2. Press the fixing bracket on the mounting plate down to release the lock on the pump.
3. Move the pump on the mounting plate back until the fastening elements from the
pump base engage into position.
4. Remove the pump from the mounting plate by lifting upwards.
5. Fit the mounting plate on the wall.
6. Place the pump on the mounting plate from above so that the fastening elements on
the mounting place engage in the recesses on the side of the pump.
7. Push the pump downwards onto the fastening elements until they audibly engage.
8. Attach the connecting lines (hydraulic and electric):
Ä
Chapter 6.3.1 ‘Hydraulic installation’ on page 43
Ä
Chapter 6.3.4 ‘Electrical installation’ on page 51.
6.3 Installations
Some of the graphics shown in this chapter are schematic diagrams which are
intended to represent the general installation.
The installation examples and applications shown here are of a functional
nature. They provide an overview of correct forms of installation, or
approaches to be avoided, in order to ensure that it works properly
.
Assembly, installation, modification and upgrades
42Rev. 2-05.2018
