5.2 Connection sockets / cable bushings

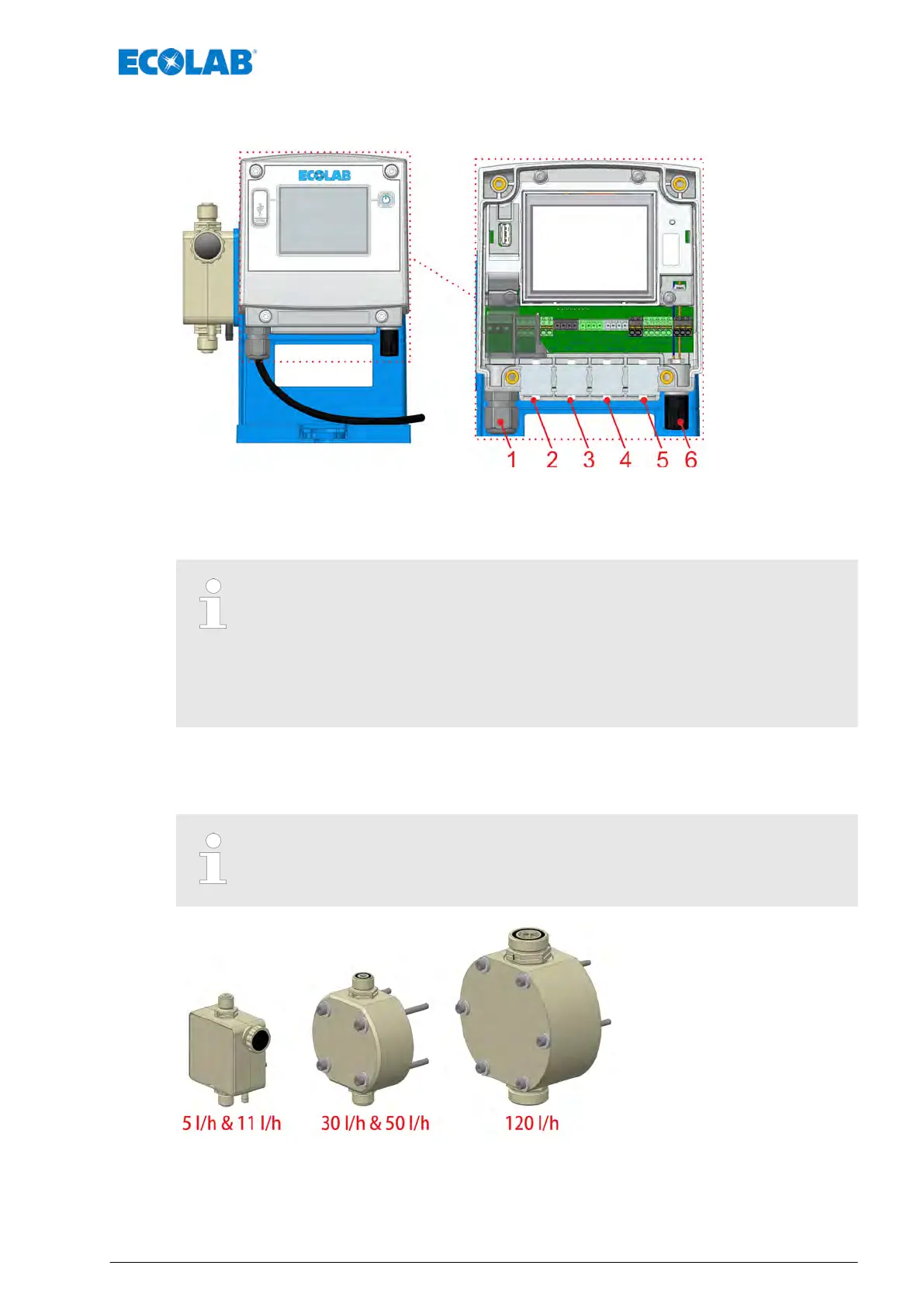

Fig. 6: Connections ‘EcoAdd’
1 Mains cable bushing / Mains connection
2-5 Cable bushings to the main board with terminals
6 Level monitoring (suction lance connection)
The connection is described in
Ä
Chapter 6.3.4.1 ‘Terminal assignment’
on page 52 .
Permissible external cable diameters for connecting the inputs/outputs:
AD Ø = 5.1-5.7 mm (pos. 2-5).
Permissible cables: LIYY 4x 0.5; LIYY 5 x 0.34; LYCY 2 x 0.34; Ölflex 4 x 0.5
The IP65 Code is applicable only when the specified cable is being used.
5.3 Pump head variants
The litre capacity of the pump is defined depending on the design of the pump
head and of the dosing valves.
Fig. 7: Pump head variants
Description of the pump
37 Rev. 2-05.2018
