7.9.7 Metering enable
With the metering enable function activated, the pump only runs when an external enable
contact is closed on terminal 20 and terminal 21 (see
Ä
Chapter 6.3.4.1 ‘Terminal
assignment’ on page 52 and
Ä
Chapter 8.2.1 ‘Operating mode [Manual] (with ‘metering
enable’)’ on page 125). The selected operating mode does not affect the use of the
metering enable function.

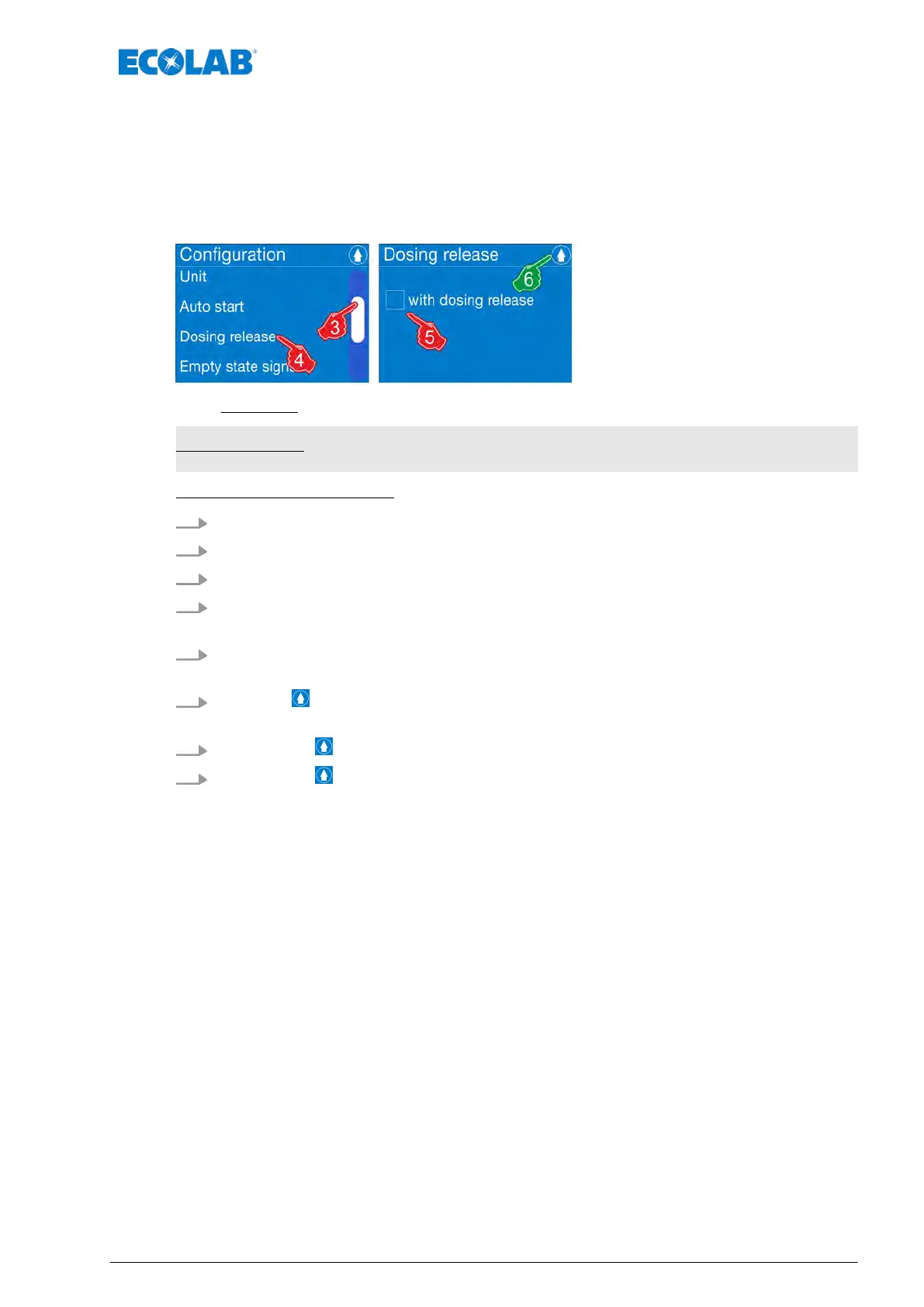

Fig. 52: Configuration: Metering enable
Factory setting: Without metering enable
[Metering enable] - setting:
1.
[Main menu] :
Ä
Chapter 7.6 ‘Main menu’ on page 66
2.
[Configuration menu] :
Ä
Chapter 7.9 ‘Overview - Configuration’ on page 83
3. Use the scrollbar to scroll to the [Metering enable] menu option.
4. [Metering enable] - select
ð
Screen switches to the [Metering enable].
5. If required, select the ‘W
ith metering enable’ selection box.
ð
A check mark is set in the selection field.
6.
Press the button.
ð
The setting is saved, and the screen switches back to the configuration overview
.
7.
Pressing the button returns to the [Main menu].
8.
Pressing the button returns to the [Operating display].
