6.3.3.1 Hose connection with support sleeve and clamping ring

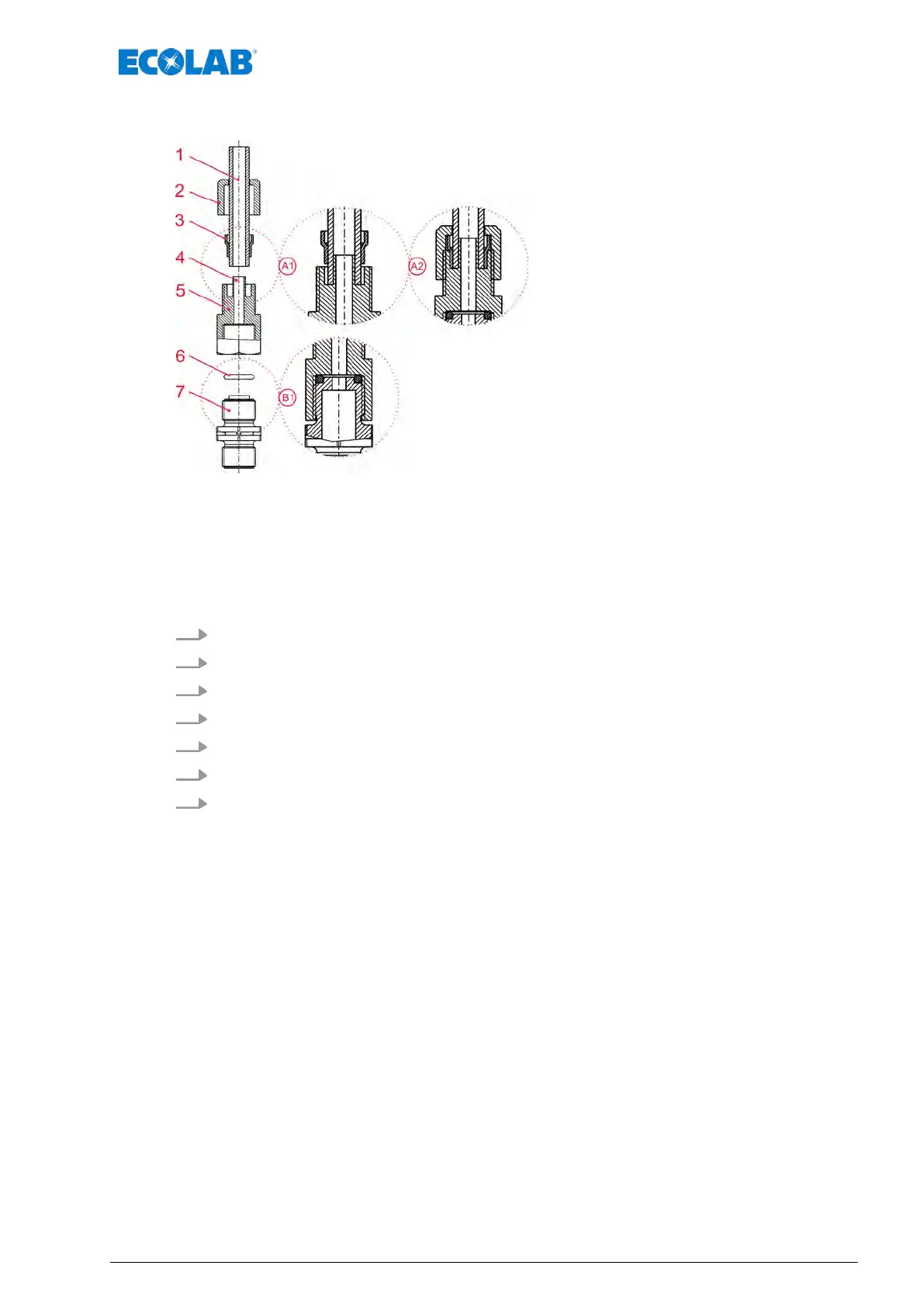

Fig. 12: Pipe and hose connection with integrated support sleeve
1 Pipe or hose connection
2 Union nut
3 Clamping ring
4 Slip-on bushing
5 Female connector
6 O-ring
7 Suction valve, pressure valve
A1 Pipe or hose attached
A2 Target state after assembly
B1 Valve connection: Target state after assembly
1. Place the O-ring (6) in the groove of the suction or pressure valve (7).
2. T
ighten the female coupling (5) (detail B1).
3. Cut hose (1) straight.
4. Push the union nut (2) and clamp it over the hose (1).
5. Push the clamping ring (3) over the hose (1).
6. Push the hose (1) onto the support sleeve (4) up to the stop (detail: A1).
7. T
ighten the female coupling (5) (detail A2).
